Sartorius Cubis Series User Manual

System Settings (Menu)
Cubis MSU User Manual 47
Ports (Configure Ports and Network Settings)
Here you can configure interfaces (serial ports and network) and settings for
the network.
A detailed description of the connection options and data interface ports can
be found in Section Interfaces.

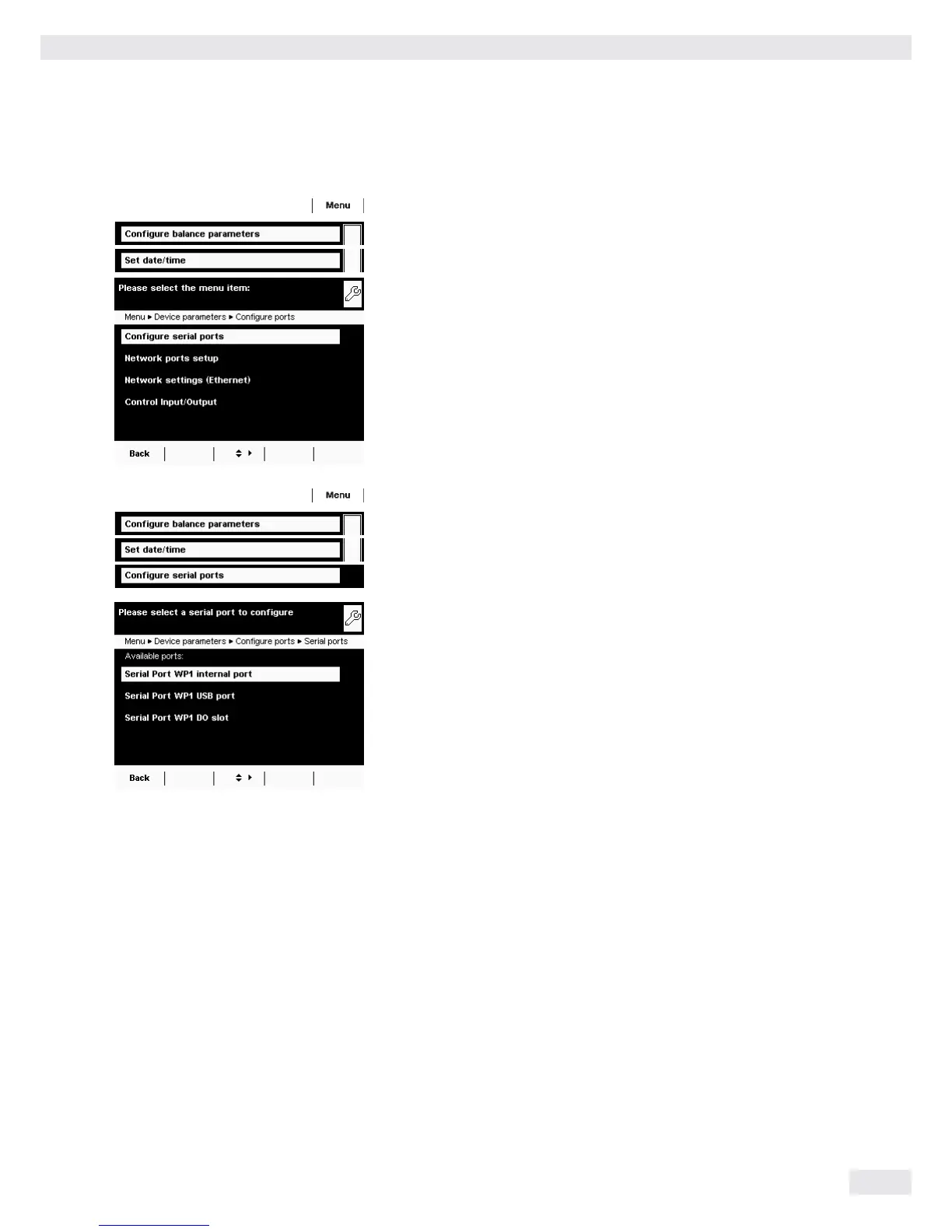

Configure Serial Ports
y The available ports are displayed.
t Select the port you want to configure.
t Configure all settings for this port.
t To save the settings, select Save.

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
