Sartorius Cubis Series User Manual

System Settings (Menu)
48 Cubis MSU User Manual

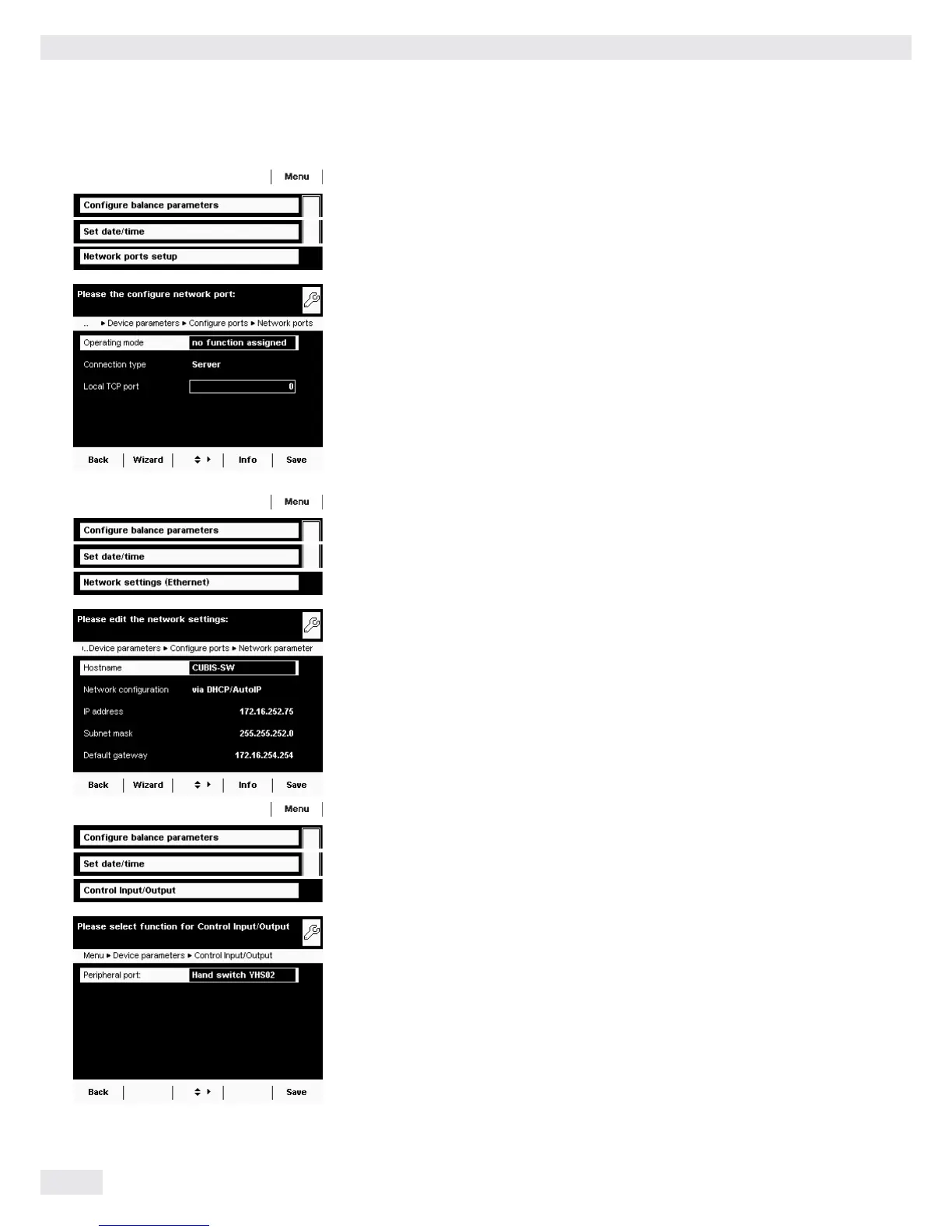

Network Ports Setup (Ethernet)
For more information on network operation, see “Network Interface” in Section
Interfaces.
t Select operating mode for the network interface.
No function / xBPI (expanded Sartorius communication / SBI (Sartorius standard
protocol) / Printer output / SICS protocol
t Select connection type.
Server or Client connection
t Configure the local TCP port.
t To save the settings, select Save.
Network Settings (Ethernet)
t Define the settings for network operation.
The Hostname (device name — max. 24 characters) set here can be printed on logs.
The IP address can be entered and set as a default or obtained automatically.
t To save the settings, select Save.
Control Input/Output (e.g., for Remote Switch)
If you have connected a remote switch, for example, via the peripheral or optional
port, you can define its function here.
t Configure the setting for each port.

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
