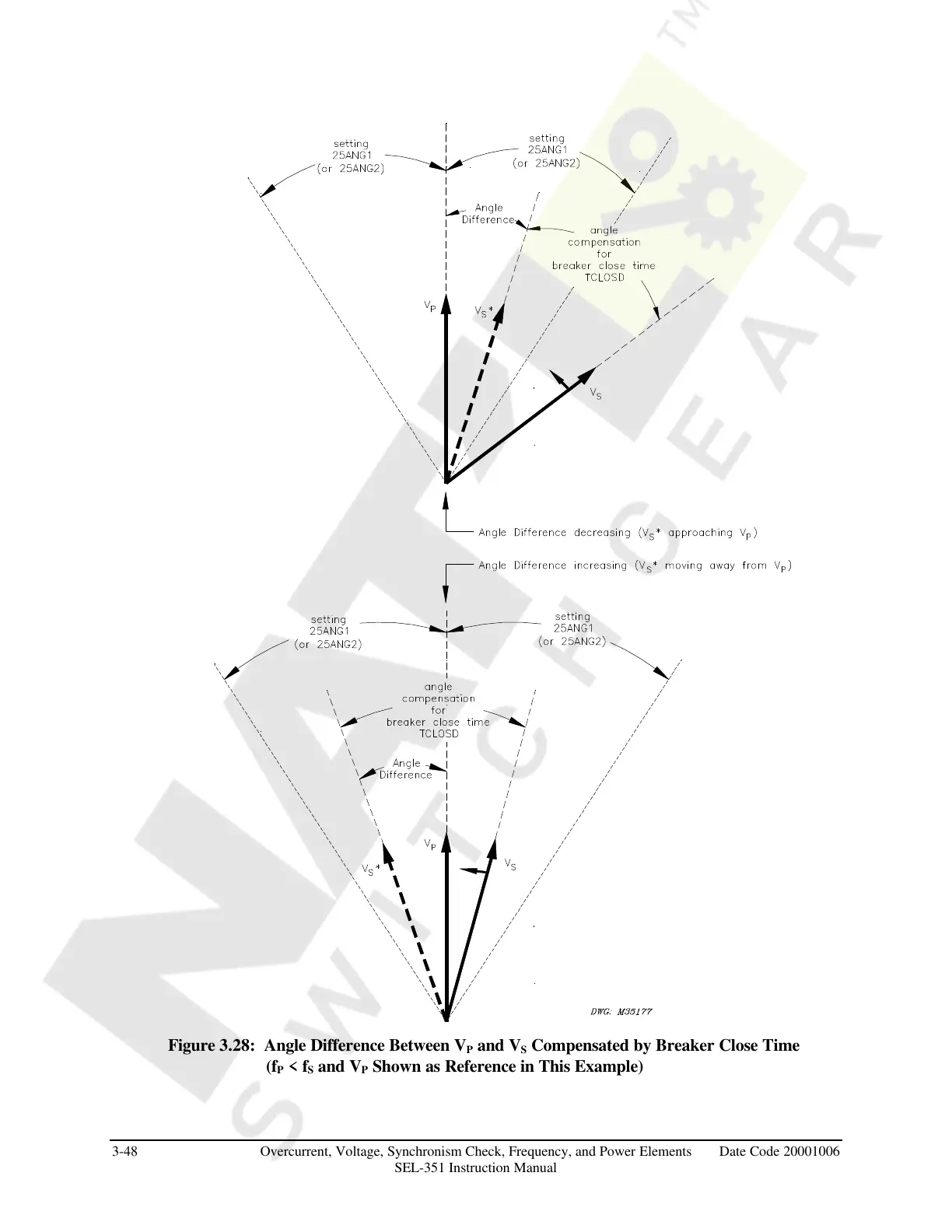

Figure 3.28: Angle Difference Between V
P
and V
S
Compensated by Breaker Close Time
(f
P
< f
S
and V
P
Shown as Reference in This Example)
