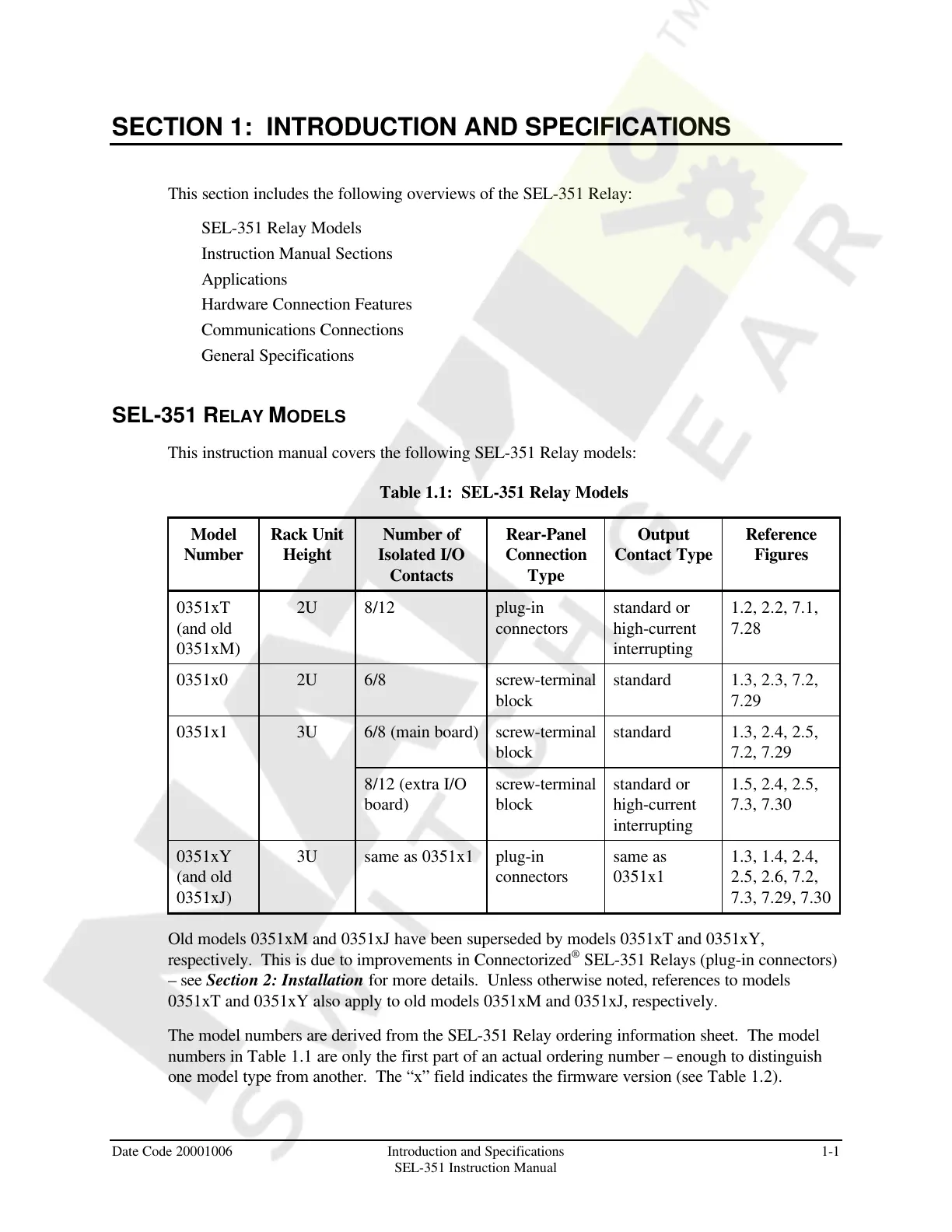

SECTION 1: INTRODUCTION AND SPECIFICATIONS
This section includes the following overviews of the SEL-351 Relay:
SEL-351 Relay Models
Instruction Manual Sections
Applications
Hardware Connection Features
Communications Connections
General Specifications
SEL-351 RELAY MODELS
This instruction manual covers the following SEL-351 Relay models:
Table 1.1: SEL-351 Relay Models
Model
Number
Rack Unit
Height
Number of
Isolated I/O
Contacts
Rear-Panel
Connection
Type
Output
Contact Type
Reference
Figures
0351xT
(and old
0351xM)
2U 8/12 plug-in
connectors
standard or
high-current
interrupting
1.2, 2.2, 7.1,
7.28
0351x0 2U 6/8 screw-terminal
block
standard 1.3, 2.3, 7.2,
7.29
0351x1 3U 6/8 (main board) screw-terminal
block
standard 1.3, 2.4, 2.5,
7.2, 7.29
8/12 (extra I/O
board)
screw-terminal
block
standard or
high-current
interrupting
1.5, 2.4, 2.5,
7.3, 7.30
0351xY
(and old
0351xJ)
3U same as 0351x1 plug-in
connectors
same as
0351x1
1.3, 1.4, 2.4,
2.5, 2.6, 7.2,
7.3, 7.29, 7.30
Old models 0351xM and 0351xJ have been superseded by models 0351xT and 0351xY,
respectively. This is due to improvements in Connectorized
®
SEL-351 Relays (plug-in connectors)
– see Section 2: Installation for more details. Unless otherwise noted, references to models
0351xT and 0351xY also apply to old models 0351xM and 0351xJ, respectively.
The model numbers are derived from the SEL-351 Relay ordering information sheet. The model
numbers in Table 1.1 are only the first part of an actual ordering number – enough to distinguish
one model type from another. The “x” field indicates the firmware version (see Table 1.2).
