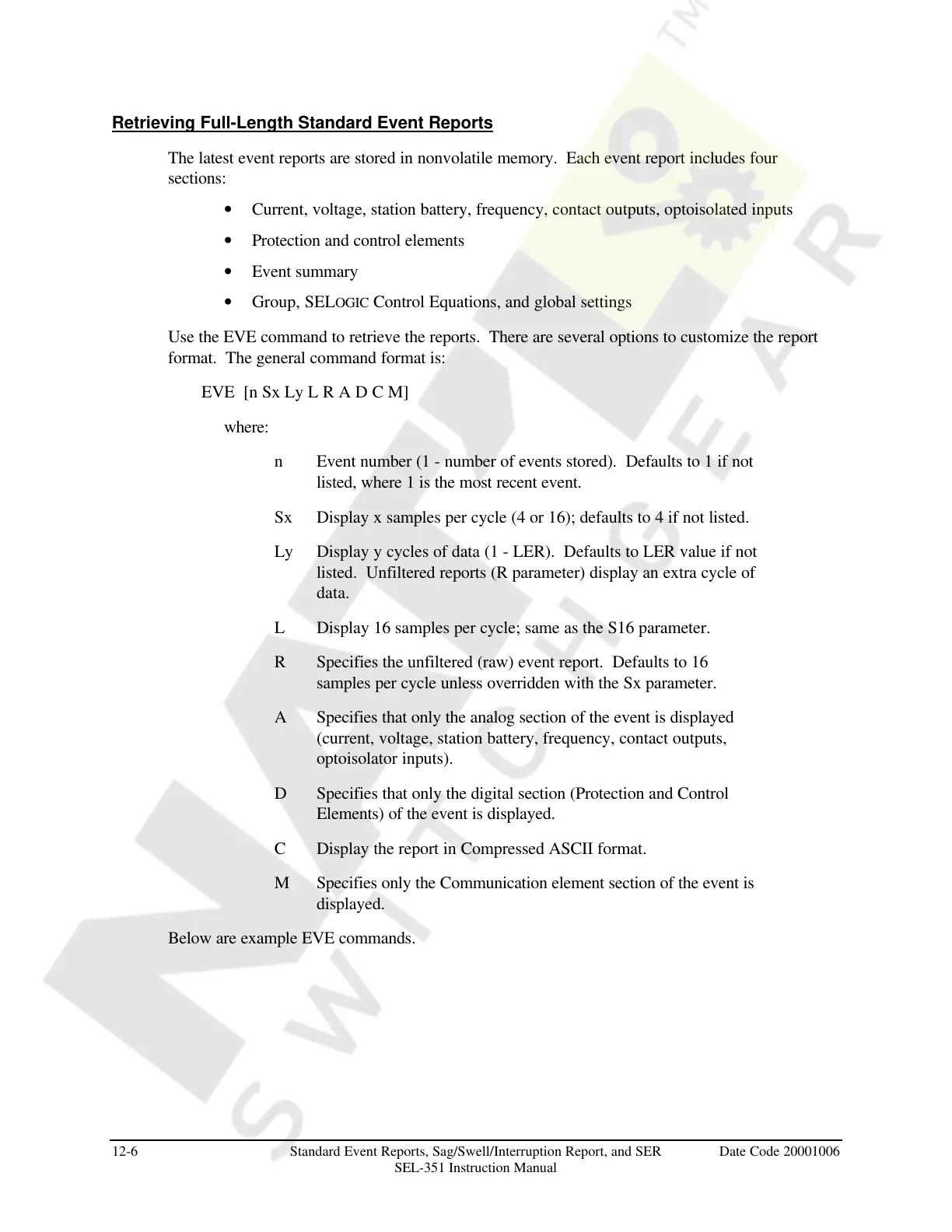

Retrieving Full-Length Standard Event Reports
The latest event reports are stored in nonvolatile memory. Each event report includes four
sections:
• Current, voltage, station battery, frequency, contact outputs, optoisolated inputs
• Protection and control elements
• Event summary
• Group, SELOGIC Control Equations, and global settings
Use the EVE command to retrieve the reports. There are several options to customize the report
format. The general command format is:
EVE [n Sx Ly L R A D C M]
where:
n Event number (1 - number of events stored). Defaults to 1 if not
listed, where 1 is the most recent event.
Sx Display x samples per cycle (4 or 16); defaults to 4 if not listed.
Ly Display y cycles of data (1 - LER). Defaults to LER value if not
listed. Unfiltered reports (R parameter) display an extra cycle of
data.
L Display 16 samples per cycle; same as the S16 parameter.
R Specifies the unfiltered (raw) event report. Defaults to 16
samples per cycle unless overridden with the Sx parameter.
A Specifies that only the analog section of the event is displayed
(current, voltage, station battery, frequency, contact outputs,
optoisolator inputs).
D Specifies that only the digital section (Protection and Control
Elements) of the event is displayed.
C Display the report in Compressed ASCII format.
M Specifies only the Communication element section of the event is
displayed.
Below are example EVE commands.
