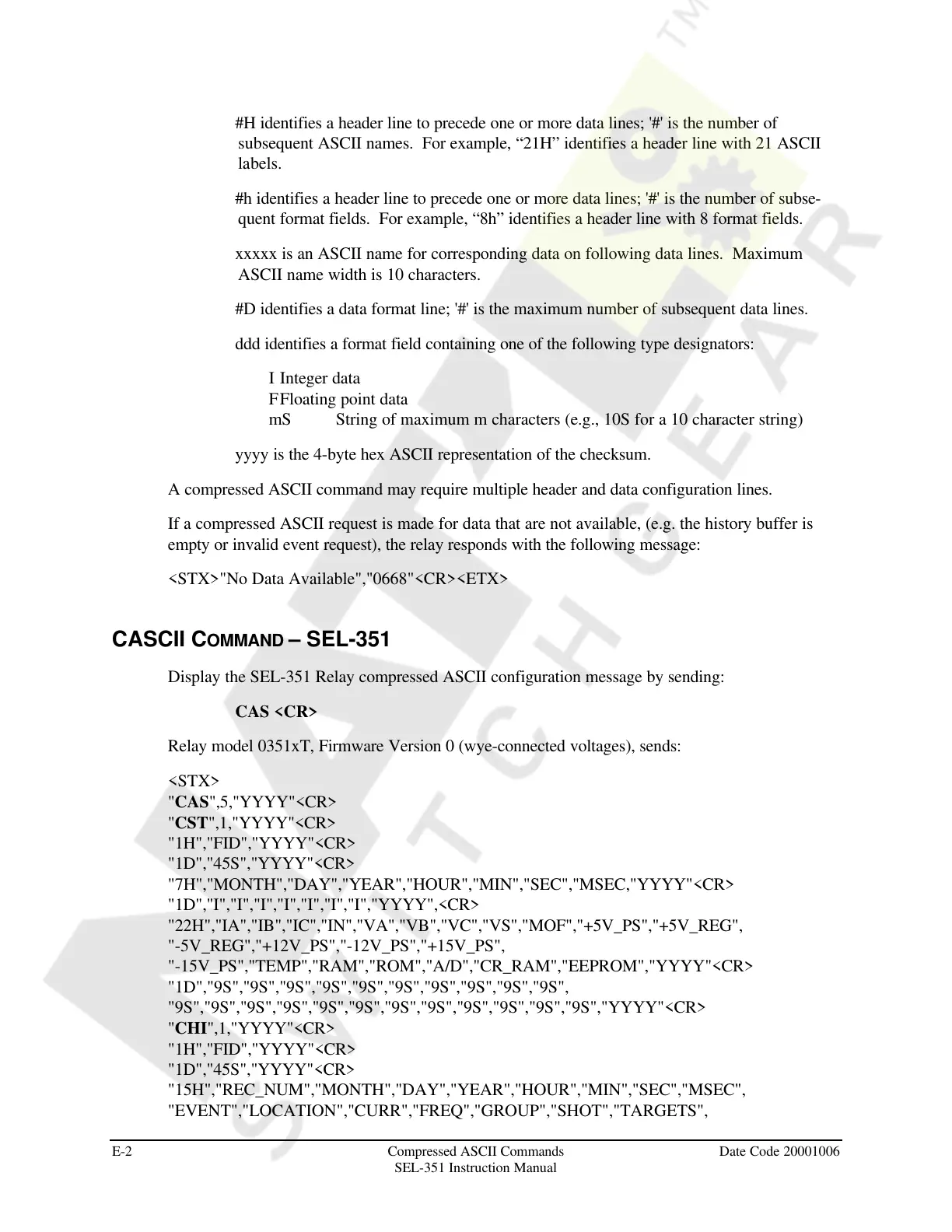

E-2 Compressed ASCII Commands Date Code 20001006
SEL-351 Instruction Manual
#H identifies a header line to precede one or more data lines; '#' is the number of
subsequent ASCII names. For example, “21H” identifies a header line with 21 ASCII
labels.
#h identifies a header line to precede one or more data lines; '#' is the number of subse-
quent format fields. For example, “8h” identifies a header line with 8 format fields.
xxxxx is an ASCII name for corresponding data on following data lines. Maximum
ASCII name width is 10 characters.
#D identifies a data format line; '#' is the maximum number of subsequent data lines.
ddd identifies a format field containing one of the following type designators:
I Integer data
FFloating point data
mS String of maximum m characters (e.g., 10S for a 10 character string)
yyyy is the 4-byte hex ASCII representation of the checksum.
A compressed ASCII command may require multiple header and data configuration lines.
If a compressed ASCII request is made for data that are not available, (e.g. the history buffer is
empty or invalid event request), the relay responds with the following message:
<STX>"No Data Available","0668"<CR><ETX>
CASCII COMMAND – SEL-351
Display the SEL-351 Relay compressed ASCII configuration message by sending:
CAS <CR>
Relay model 0351xT, Firmware Version 0 (wye-connected voltages), sends:
<STX>
"CAS",5,"YYYY"<CR>
"CST",1,"YYYY"<CR>
"1H","FID","YYYY"<CR>
"1D","45S","YYYY"<CR>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC,"YYYY"<CR>
"1D","I","I","I","I","I","I","I","YYYY",<CR>
"22H","IA","IB","IC","IN","VA","VB","VC","VS","MOF","+5V_PS","+5V_REG",
"-5V_REG","+12V_PS","-12V_PS","+15V_PS",
"-15V_PS","TEMP","RAM","ROM","A/D","CR_RAM","EEPROM","YYYY"<CR>
"1D","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S",
"9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","YYYY"<CR>
"CHI",1,"YYYY"<CR>
"1H","FID","YYYY"<CR>
"1D","45S","YYYY"<CR>
"15H","REC_NUM","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC",
"EVENT","LOCATION","CURR","FREQ","GROUP","SHOT","TARGETS",
