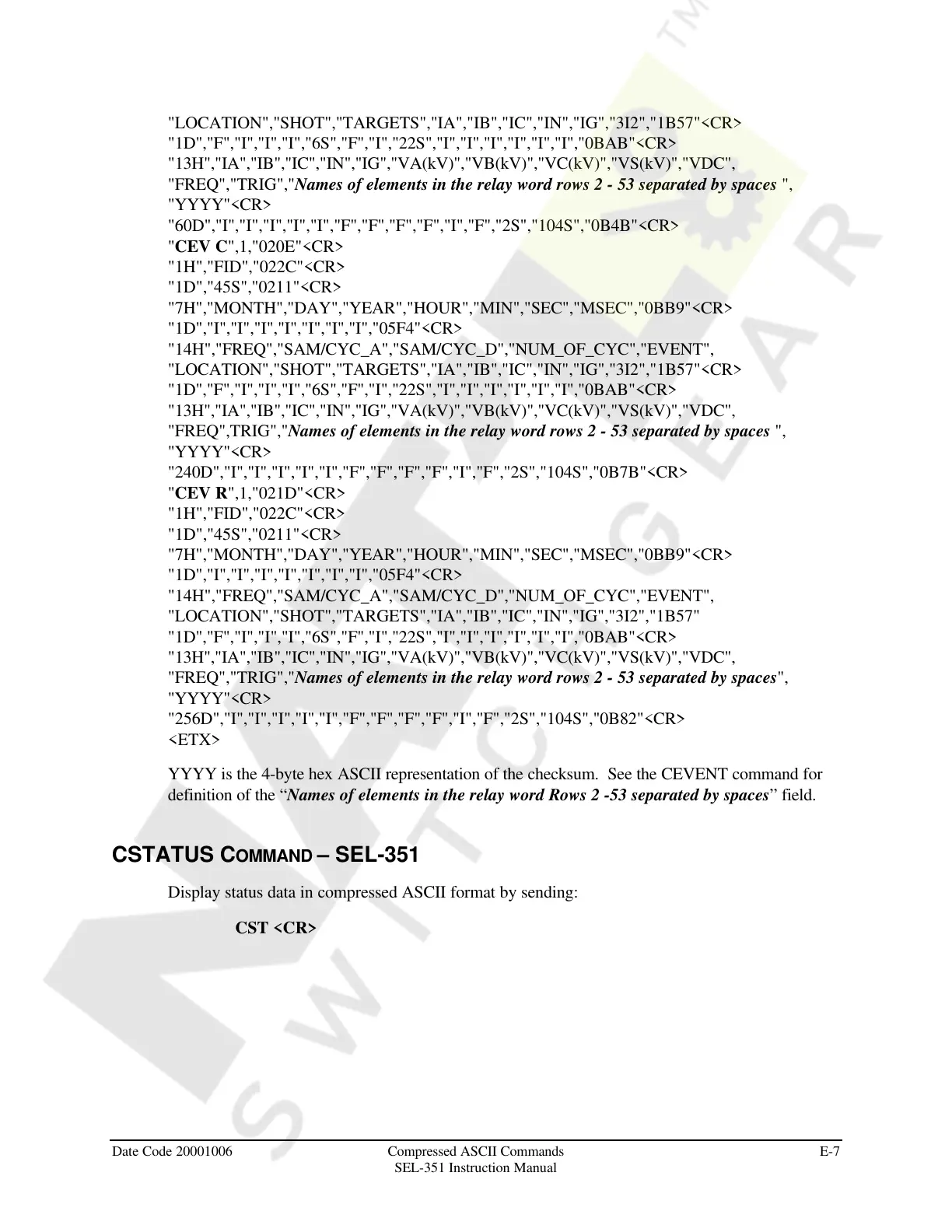

Date Code 20001006 Compressed ASCII Commands E-7
SEL-351 Instruction Manual
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","1B57"<CR>
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","0BAB"<CR>
"13H","IA","IB","IC","IN","IG","VA(kV)","VB(kV)","VC(kV)","VS(kV)","VDC",
"FREQ","TRIG","Names of elements in the relay word rows 2 - 53 separated by spaces ",
"YYYY"<CR>
"60D","I","I","I","I","I","F","F","F","F","I","F","2S","104S","0B4B"<CR>
"CEV C",1,"020E"<CR>
"1H","FID","022C"<CR>
"1D","45S","0211"<CR>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0BB9"<CR>
"1D","I","I","I","I","I","I","I","05F4"<CR>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","1B57"<CR>
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","0BAB"<CR>
"13H","IA","IB","IC","IN","IG","VA(kV)","VB(kV)","VC(kV)","VS(kV)","VDC",
"FREQ",TRIG","Names of elements in the relay word rows 2 - 53 separated by spaces ",
"YYYY"<CR>
"240D","I","I","I","I","I","F","F","F","F","I","F","2S","104S","0B7B"<CR>
"CEV R",1,"021D"<CR>
"1H","FID","022C"<CR>
"1D","45S","0211"<CR>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0BB9"<CR>
"1D","I","I","I","I","I","I","I","05F4"<CR>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","1B57"
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","0BAB"<CR>
"13H","IA","IB","IC","IN","IG","VA(kV)","VB(kV)","VC(kV)","VS(kV)","VDC",
"FREQ","TRIG","Names of elements in the relay word rows 2 - 53 separated by spaces",
"YYYY"<CR>
"256D","I","I","I","I","I","F","F","F","F","I","F","2S","104S","0B82"<CR>
<ETX>
YYYY is the 4-byte hex ASCII representation of the checksum. See the CEVENT command for
definition of the “Names of elements in the relay word Rows 2 -53 separated by spaces” field.
CSTATUS COMMAND – SEL-351
Display status data in compressed ASCII format by sending:
CST <CR>
