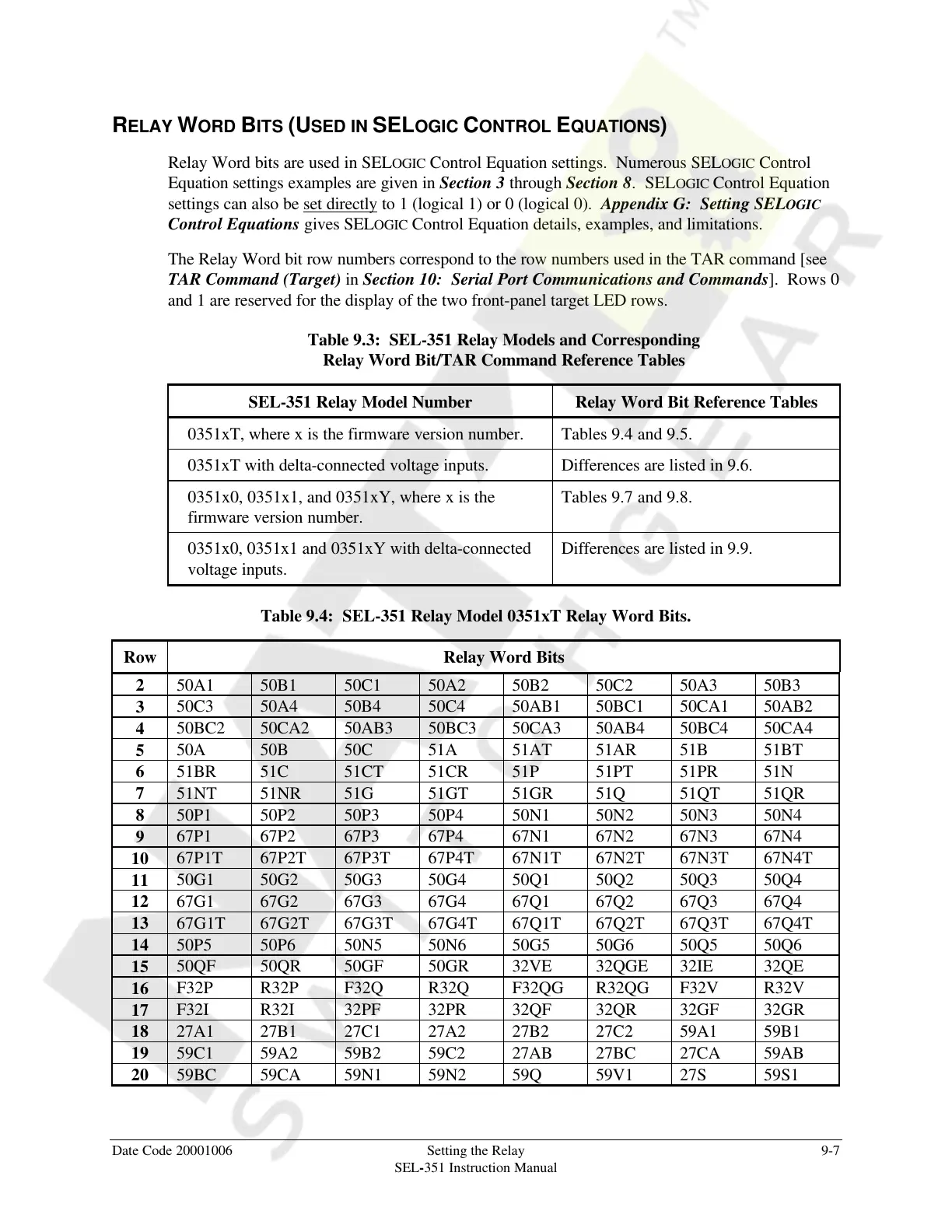

Date Code 20001006 Setting the Relay 9-7
SEL-351 Instruction Manual
RELAY WORD BITS (USED IN SELOGIC CONTROL EQUATIONS)
Relay Word bits are used in SELOGIC Control Equation settings. Numerous SELOGIC Control
Equation settings examples are given in Section 3 through Section 8. SELOGIC Control Equation
settings can also be set directly to 1 (logical 1) or 0 (logical 0). Appendix G: Setting SELOGIC
Control Equations gives SELOGIC Control Equation details, examples, and limitations.
The Relay Word bit row numbers correspond to the row numbers used in the TAR command [see
TAR Command (Target) in Section 10: Serial Port Communications and Commands]. Rows 0
and 1 are reserved for the display of the two front-panel target LED rows.
Table 9.3: SEL-351 Relay Models and Corresponding
Relay Word Bit/TAR Command Reference Tables
SEL-351 Relay Model Number Relay Word Bit Reference Tables
0351xT, where x is the firmware version number. Tables 9.4 and 9.5.
0351xT with delta-connected voltage inputs. Differences are listed in 9.6.
0351x0, 0351x1, and 0351xY, where x is the
firmware version number.
Tables 9.7 and 9.8.
0351x0, 0351x1 and 0351xY with delta-connected
voltage inputs.
Differences are listed in 9.9.
Table 9.4: SEL-351 Relay Model 0351xT Relay Word Bits.
Row Relay Word Bits
2
50A1 50B1 50C1 50A2 50B2 50C2 50A3 50B3
3
50C3 50A4 50B4 50C4 50AB1 50BC1 50CA1 50AB2
4
50BC2 50CA2 50AB3 50BC3 50CA3 50AB4 50BC4 50CA4
5
50A 50B 50C 51A 51AT 51AR 51B 51BT
6
51BR 51C 51CT 51CR 51P 51PT 51PR 51N
7
51NT 51NR 51G 51GT 51GR 51Q 51QT 51QR
8
50P1 50P2 50P3 50P4 50N1 50N2 50N3 50N4
9
67P1 67P2 67P3 67P4 67N1 67N2 67N3 67N4
10
67P1T 67P2T 67P3T 67P4T 67N1T 67N2T 67N3T 67N4T
11
50G1 50G2 50G3 50G4 50Q1 50Q2 50Q3 50Q4
12
67G1 67G2 67G3 67G4 67Q1 67Q2 67Q3 67Q4
13
67G1T 67G2T 67G3T 67G4T 67Q1T 67Q2T 67Q3T 67Q4T
14
50P5 50P6 50N5 50N6 50G5 50G6 50Q5 50Q6
15
50QF 50QR 50GF 50GR 32VE 32QGE 32IE 32QE
16
F32P R32P F32Q R32Q F32QG R32QG F32V R32V
17
F32I R32I 32PF 32PR 32QF 32QR 32GF 32GR
18
27A1 27B1 27C1 27A2 27B2 27C2 59A1 59B1
19
59C1 59A2 59B2 59C2 27AB 27BC 27CA 59AB
20
59BC 59CA 59N1 59N2 59Q 59V1 27S 59S1
