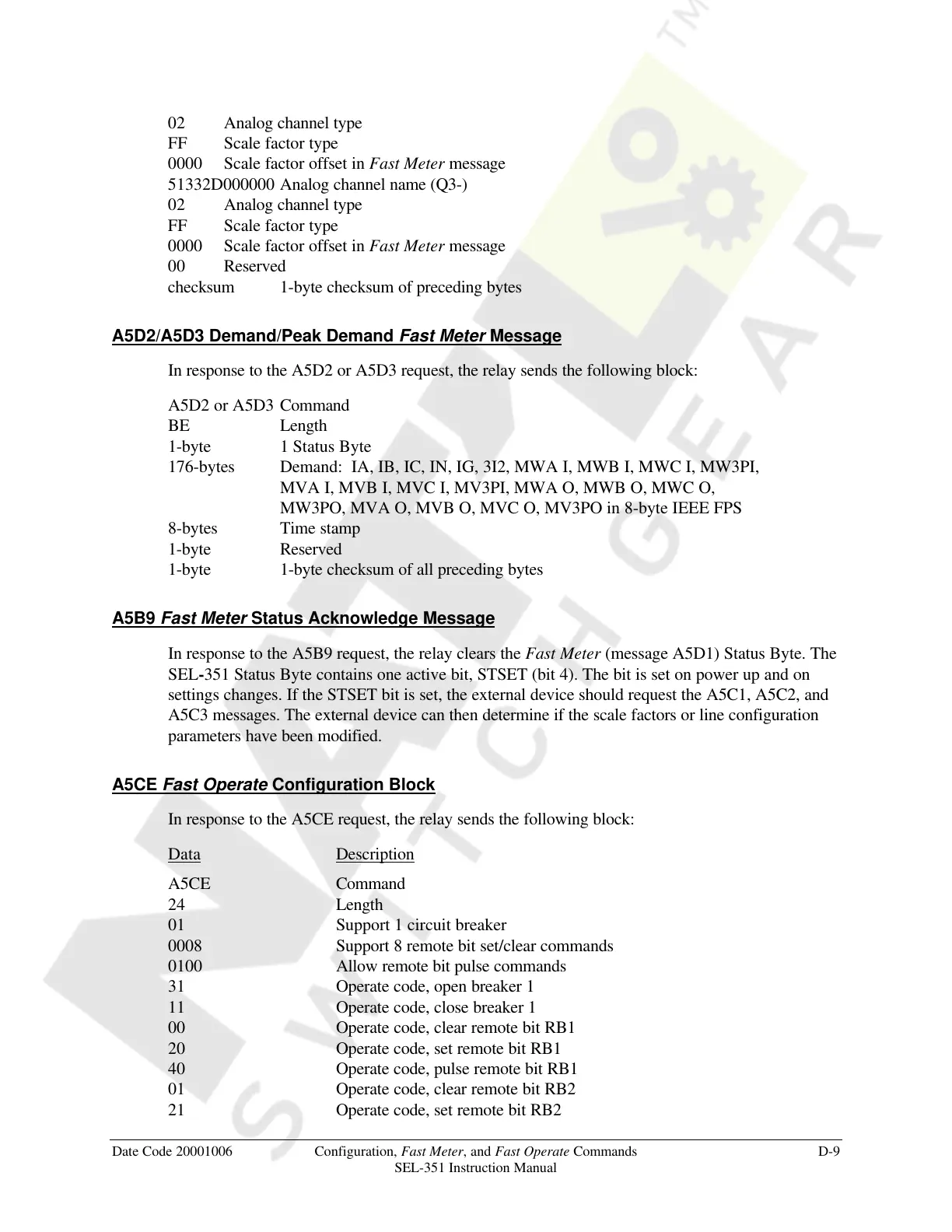

Date Code 20001006 Configuration, Fast Meter, and Fast Operate Commands D-9
SEL-351 Instruction Manual
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
51332D000000 Analog channel name (Q3-)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
00 Reserved
checksum 1-byte checksum of preceding bytes
A5D2/A5D3 Demand/Peak Demand Fast Meter Message
In response to the A5D2 or A5D3 request, the relay sends the following block:
A5D2 or A5D3 Command
BE Length
1-byte 1 Status Byte
176-bytes Demand: IA, IB, IC, IN, IG, 3I2, MWA I, MWB I, MWC I, MW3PI,
MVA I, MVB I, MVC I, MV3PI, MWA O, MWB O, MWC O,
MW3PO, MVA O, MVB O, MVC O, MV3PO in 8-byte IEEE FPS
8-bytes Time stamp
1-byte Reserved
1-byte 1-byte checksum of all preceding bytes
A5B9 Fast Meter Status Acknowledge Message
In response to the A5B9 request, the relay clears the Fast Meter (message A5D1) Status Byte. The
SEL-351 Status Byte contains one active bit, STSET (bit 4). The bit is set on power up and on
settings changes. If the STSET bit is set, the external device should request the A5C1, A5C2, and
A5C3 messages. The external device can then determine if the scale factors or line configuration
parameters have been modified.
A5CE Fast Operate Configuration Block
In response to the A5CE request, the relay sends the following block:
Data Description
A5CE Command
24 Length
01 Support 1 circuit breaker
0008 Support 8 remote bit set/clear commands
0100 Allow remote bit pulse commands
31 Operate code, open breaker 1
11 Operate code, close breaker 1
00 Operate code, clear remote bit RB1
20 Operate code, set remote bit RB1
40 Operate code, pulse remote bit RB1
01 Operate code, clear remote bit RB2
21 Operate code, set remote bit RB2
