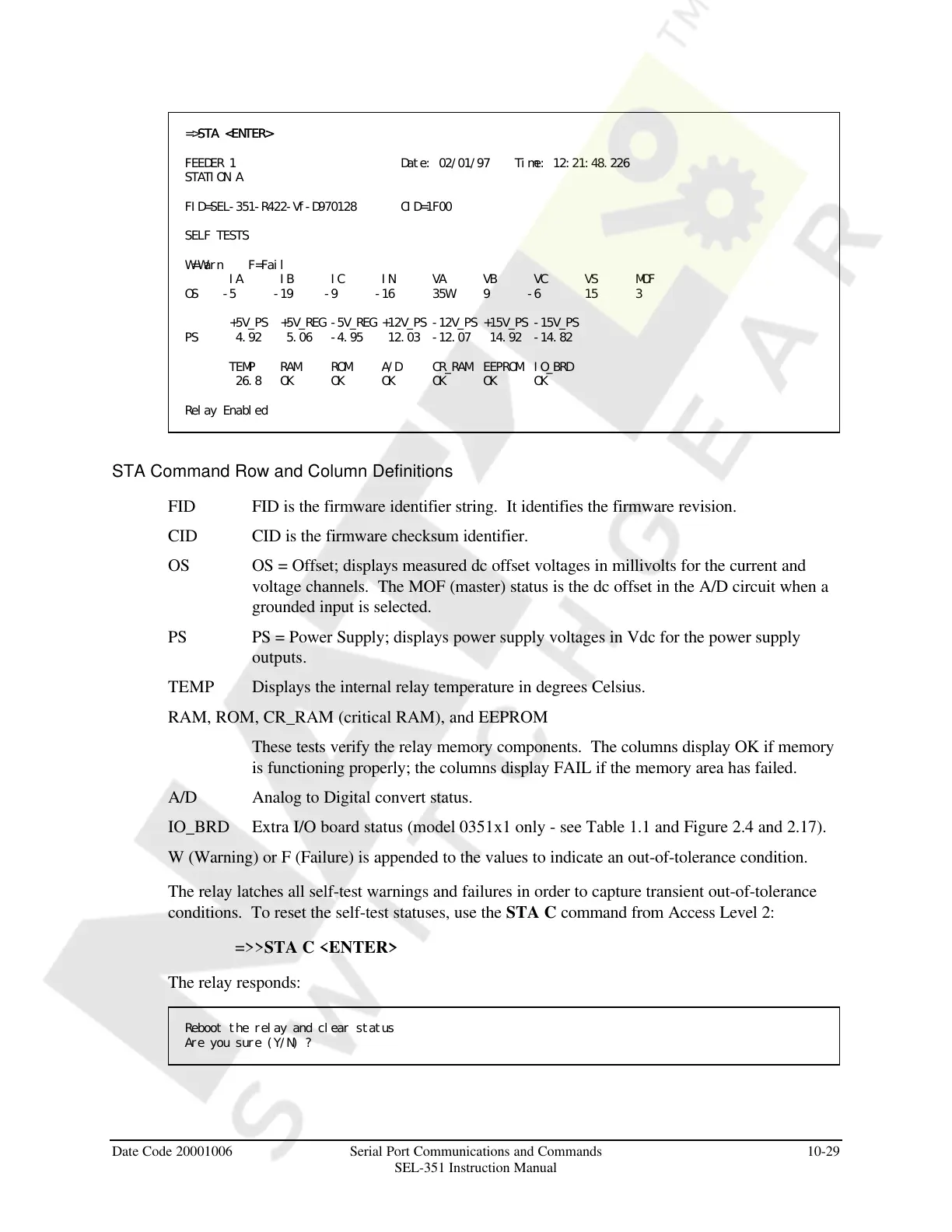

Date Code 20001006 Serial Port Communications and Commands 10-29
SEL-351 Instruction Manual
=>STA <ENTER>STA <ENTER>
FEEDER 1 Date: 02/01/97 Time: 12:21:48.226
STATION A
FID=SEL-351-R422-Vf-D970128 CID=1F00
SELF TESTS
W=Warn F=Fail
IA IB IC IN VA VB VC VS MOF
OS -5 -19 -9 -16 35W 9 -6 15 3
+5V_PS +5V_REG -5V_REG +12V_PS -12V_PS +15V_PS -15V_PS
PS 4.92 5.06 -4.95 12.03 -12.07 14.92 -14.82
TEMP RAM ROM A/D CR_RAM EEPROM IO_BRD
26.8 OK OK OK OK OK OK
Relay Enabled
STA Command Row and Column Definitions
FID FID is the firmware identifier string. It identifies the firmware revision.
CID CID is the firmware checksum identifier.
OS OS = Offset; displays measured dc offset voltages in millivolts for the current and
voltage channels. The MOF (master) status is the dc offset in the A/D circuit when a
grounded input is selected.
PS PS = Power Supply; displays power supply voltages in Vdc for the power supply
outputs.
TEMP Displays the internal relay temperature in degrees Celsius.
RAM, ROM, CR_RAM (critical RAM), and EEPROM
These tests verify the relay memory components. The columns display OK if memory
is functioning properly; the columns display FAIL if the memory area has failed.
A/D Analog to Digital convert status.
IO_BRD Extra I/O board status (model 0351x1 only - see Table 1.1 and Figure 2.4 and 2.17).
W (Warning) or F (Failure) is appended to the values to indicate an out-of-tolerance condition.
The relay latches all self-test warnings and failures in order to capture transient out-of-tolerance
conditions. To reset the self-test statuses, use the STA C command from Access Level 2:
=>>STA C <ENTER>
The relay responds:
Reboot the relay and clear status
Are you sure (Y/N) ?
