Date Code 20001006 MIRRORED BITS™ I-7
SEL-351 Instruction Manual

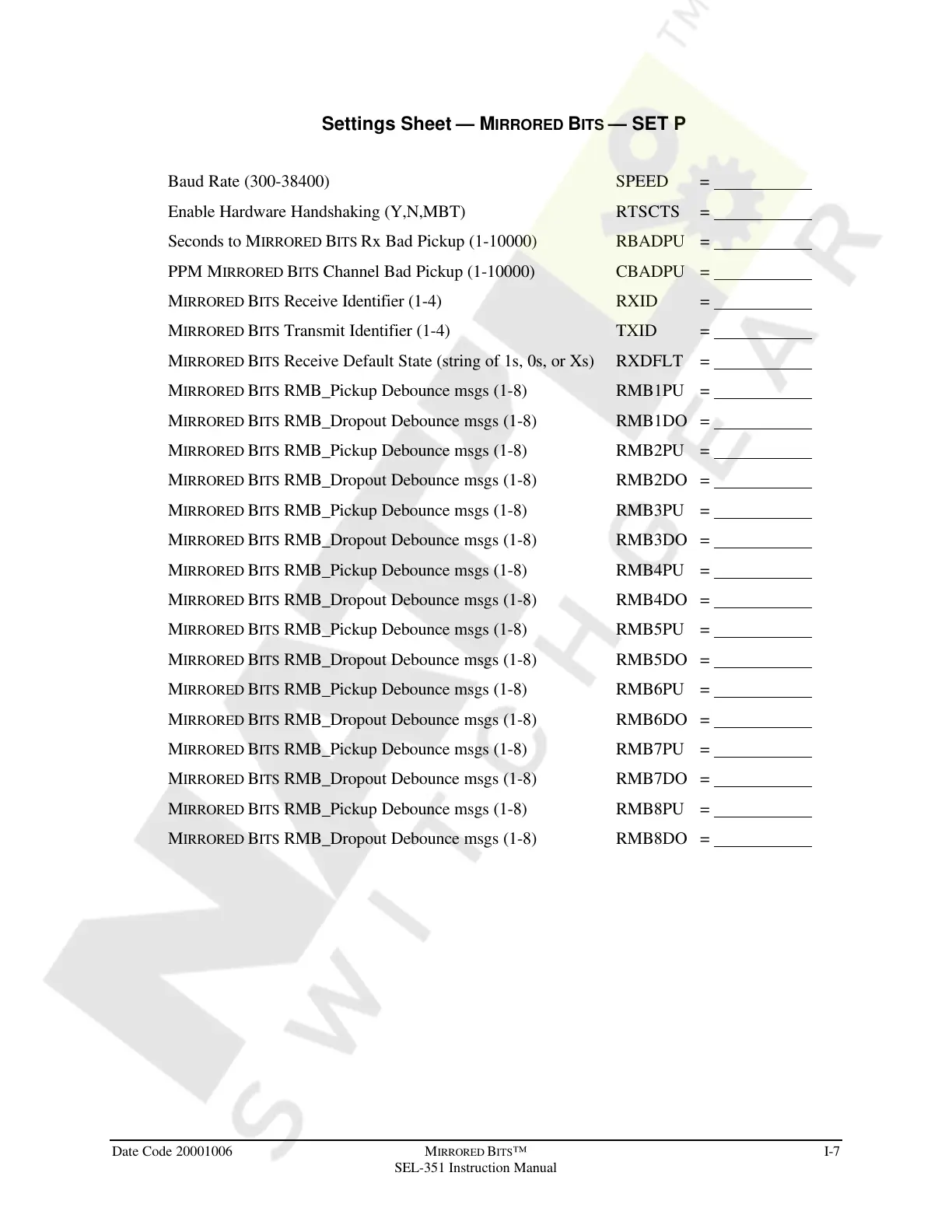

Settings Sheet — MIRRORED BITS — SET P
Baud Rate (300-38400) SPEED =
Enable Hardware Handshaking (Y,N,MBT) RTSCTS =
Seconds to MIRRORED BITS Rx Bad Pickup (1-10000) RBADPU =
PPM MIRRORED BITS Channel Bad Pickup (1-10000) CBADPU =
MIRRORED BITS Receive Identifier (1-4) RXID =
MIRRORED BITS Transmit Identifier (1-4) TXID =
MIRRORED BITS Receive Default State (string of 1s, 0s, or Xs) RXDFLT =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB1PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB1DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB2PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB2DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB3PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB3DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB4PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB4DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB5PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB5DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB6PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB6DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB7PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB7DO =
MIRRORED BITS RMB_Pickup Debounce msgs (1-8) RMB8PU =
MIRRORED BITS RMB_Dropout Debounce msgs (1-8) RMB8DO =
