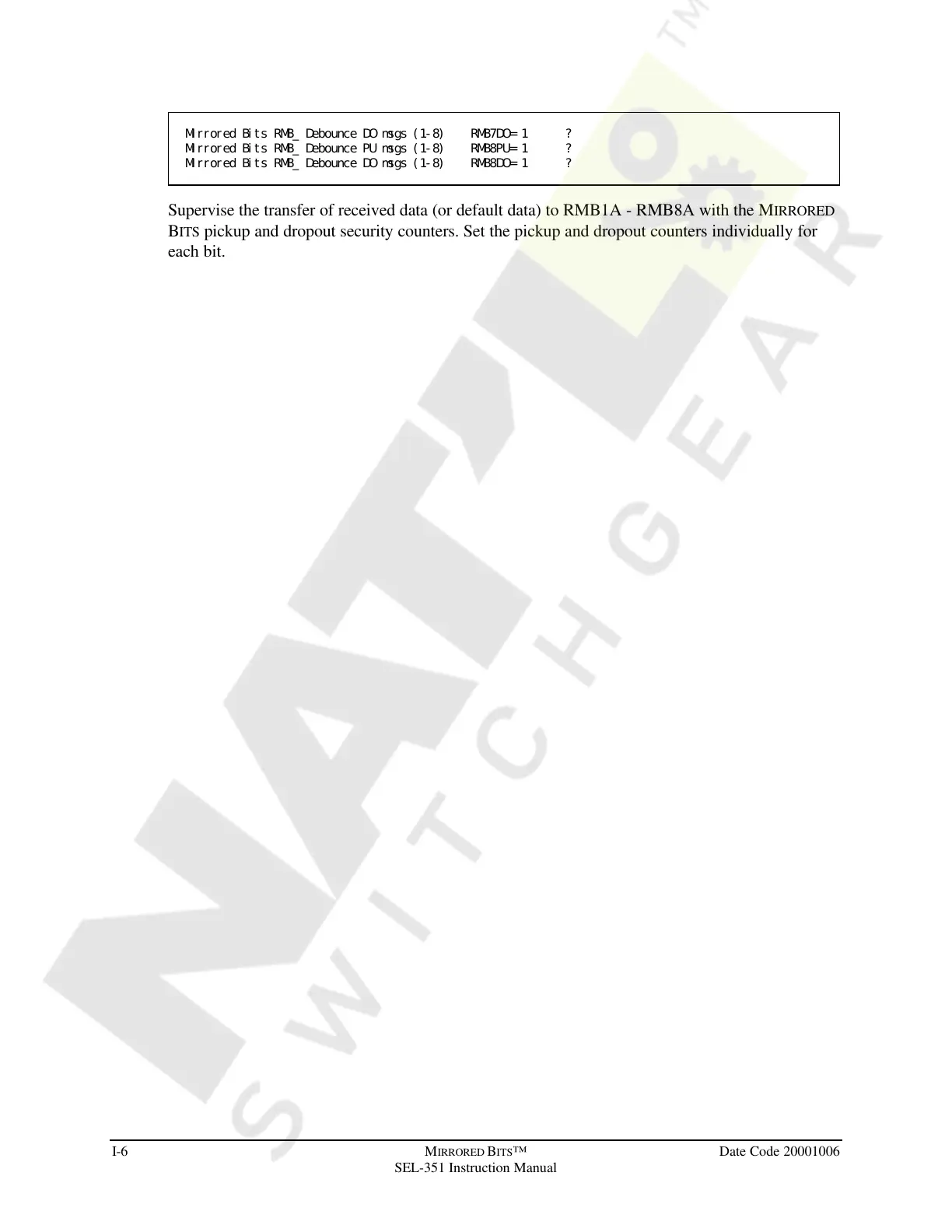

I-6 MIRRORED BITS™ Date Code 20001006
SEL-351 Instruction Manual
Mirrored Bits RMB_ Debounce DO msgs (1-8) RMB7DO= 1 ?
Mirrored Bits RMB_ Debounce PU msgs (1-8) RMB8PU= 1 ?
Mirrored Bits RMB_ Debounce DO msgs (1-8) RMB8DO= 1 ?
Supervise the transfer of received data (or default data) to RMB1A - RMB8A with the MIRRORED
BITS pickup and dropout security counters. Set the pickup and dropout counters individually for
each bit.
