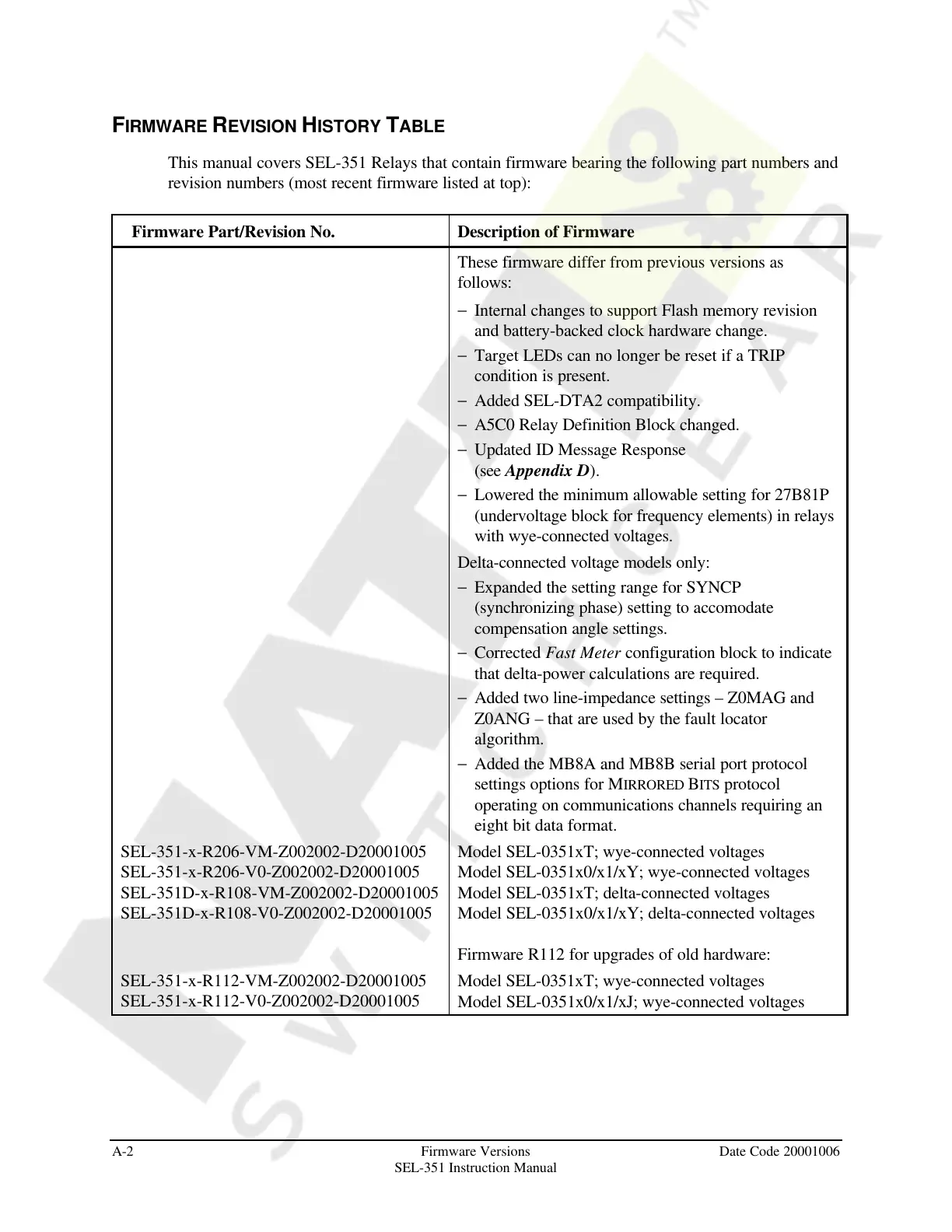

FIRMWARE REVISION HISTORY TABLE
This manual covers SEL-351 Relays that contain firmware bearing the following part numbers and
revision numbers (most recent firmware listed at top):
Firmware Part/Revision No. Description of Firmware
SEL-351-x-R206-VM-Z002002-D20001005
SEL-351-x-R206-V0-Z002002-D20001005
SEL-351D-x-R108-VM-Z002002-D20001005
SEL-351D-x-R108-V0-Z002002-D20001005
SEL-351-x-R112-VM-Z002002-D20001005
SEL-351-x-R112-V0-Z002002-D20001005
These firmware differ from previous versions as
follows:
− Internal changes to support Flash memory revision
and battery-backed clock hardware change.
− Target LEDs can no longer be reset if a TRIP
condition is present.
− Added SEL-DTA2 compatibility.
− A5C0 Relay Definition Block changed.
− Updated ID Message Response
(see Appendix D).
− Lowered the minimum allowable setting for 27B81P
(undervoltage block for frequency elements) in relays
with wye-connected voltages.
Delta-connected voltage models only:
− Expanded the setting range for SYNCP
(synchronizing phase) setting to accomodate
compensation angle settings.
− Corrected Fast Meter configuration block to indicate
that delta-power calculations are required.
− Added two line-impedance settings – Z0MAG and
Z0ANG – that are used by the fault locator
algorithm.
− Added the MB8A and MB8B serial port protocol
settings options for MIRRORED BITS protocol
operating on communications channels requiring an
eight bit data format.
Model SEL-0351xT; wye-connected voltages
Model SEL-0351x0/x1/xY; wye-connected voltages
Model SEL-0351xT; delta-connected voltages
Model SEL-0351x0/x1/xY; delta-connected voltages
Firmware R112 for upgrades of old hardware:
Model SEL-0351xT; wye-connected voltages
Model SEL-0351x0/x1/xJ; wye-connected voltages
