Residual Ground Instantaneous/Definite-Time Overcurrent Elements
Four levels of residual ground instantaneous/definite-time overcurrent elements are available. Two
additional levels of residual ground instantaneous overcurrent elements (Levels 5 and 6) are also
available. The different levels are enabled with the E50G enable setting, as shown in Figure 3.10
and Figure 3.11.

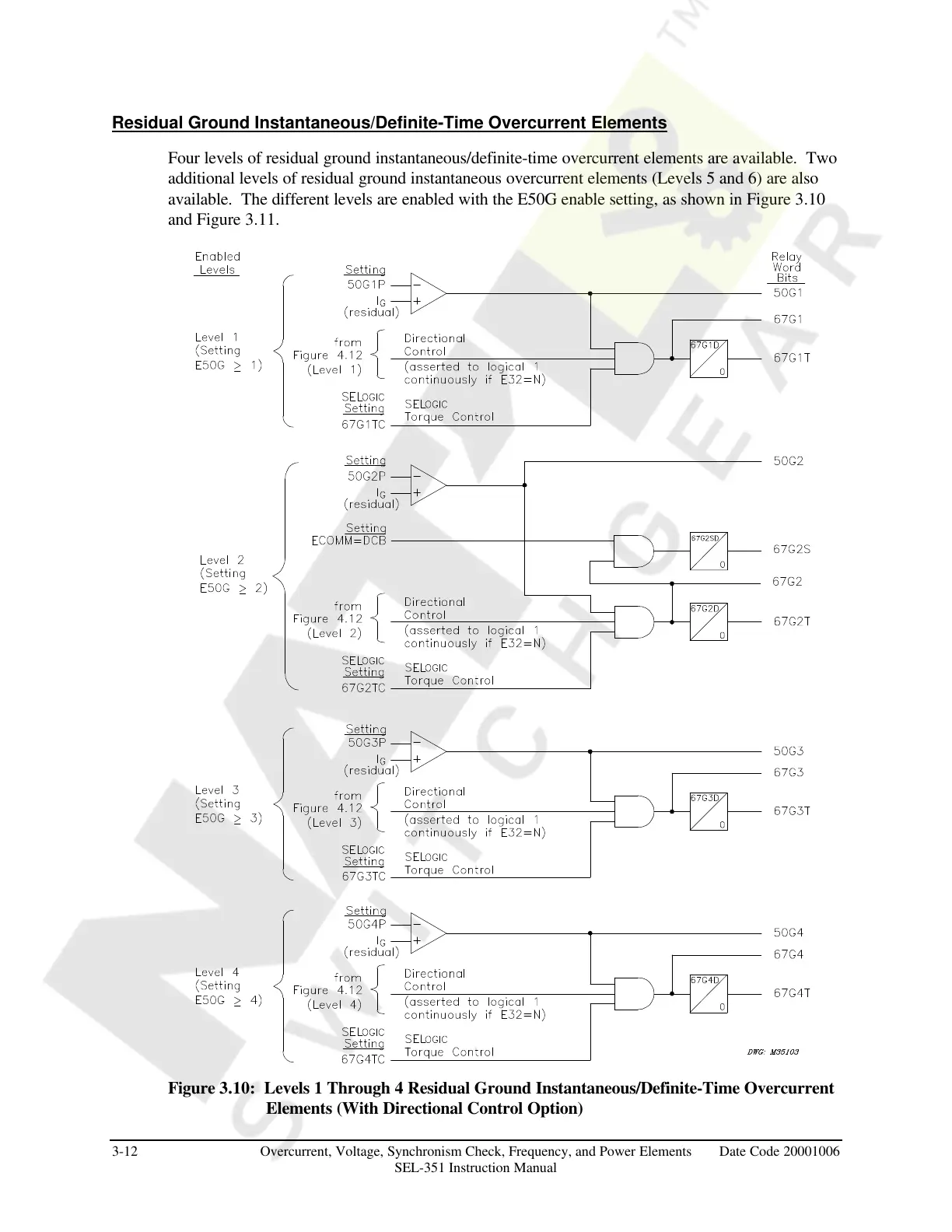

Figure 3.10: Levels 1 Through 4 Residual Ground Instantaneous/Definite-Time Overcurrent
Elements (With Directional Control Option)
