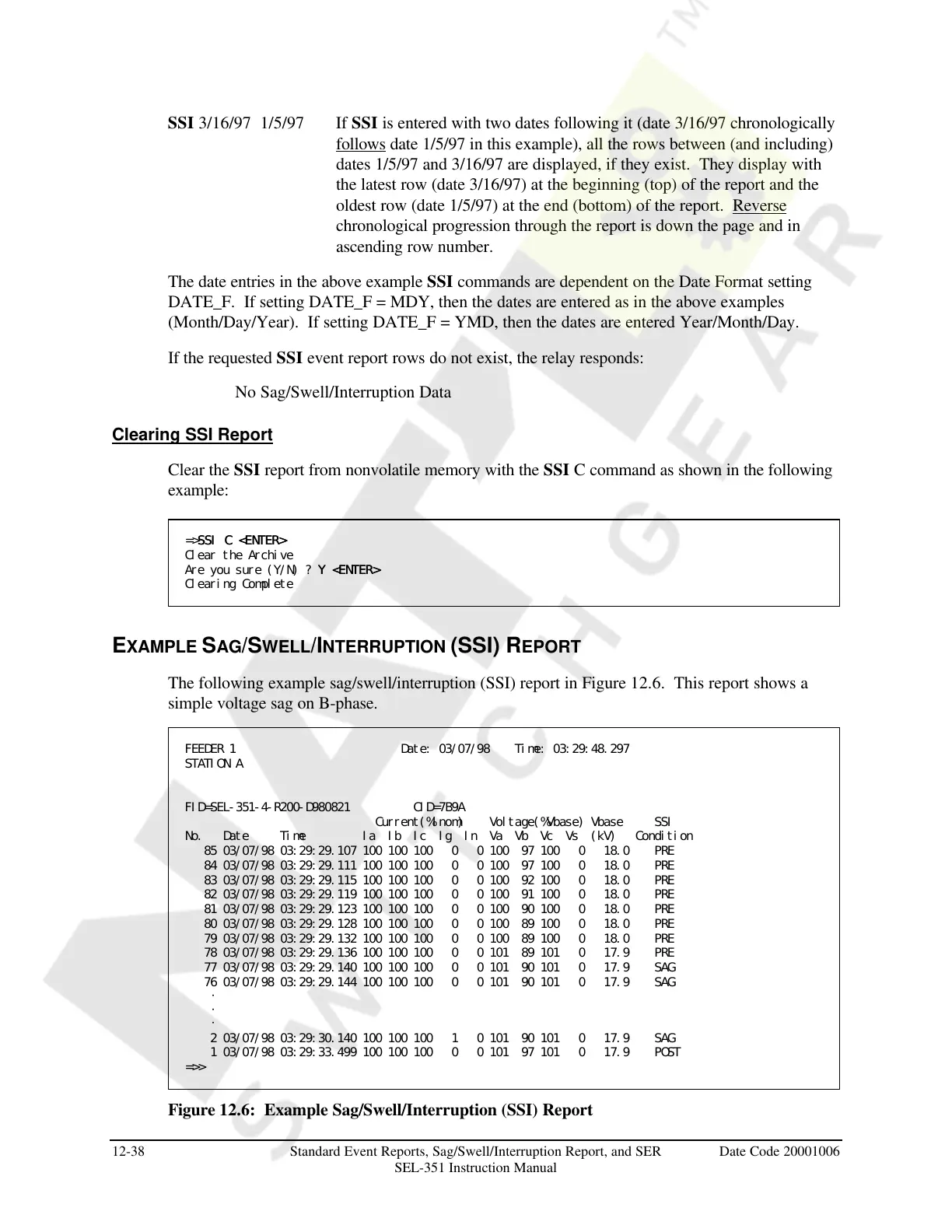

SSI 3/16/97 1/5/97 If SSI is entered with two dates following it (date 3/16/97 chronologically
follows date 1/5/97 in this example), all the rows between (and including)
dates 1/5/97 and 3/16/97 are displayed, if they exist. They display with
the latest row (date 3/16/97) at the beginning (top) of the report and the
oldest row (date 1/5/97) at the end (bottom) of the report. Reverse
chronological progression through the report is down the page and in
ascending row number.
The date entries in the above example SSI commands are dependent on the Date Format setting
DATE_F. If setting DATE_F = MDY, then the dates are entered as in the above examples
(Month/Day/Year). If setting DATE_F = YMD, then the dates are entered Year/Month/Day.
If the requested SSI event report rows do not exist, the relay responds:
No Sag/Swell/Interruption Data
Clearing SSI Report
Clear the SSI report from nonvolatile memory with the SSI C command as shown in the following
example:
=>SSI C <ENTER>SSI C <ENTER>
Clear the Archive
Are you sure (Y/N) ? Y <ENTER>Y <ENTER>
Clearing Complete
EXAMPLE SAG/SWELL/INTERRUPTION (SSI) REPORT
The following example sag/swell/interruption (SSI) report in Figure 12.6. This report shows a
simple voltage sag on B-phase.
FEEDER 1 Date: 03/07/98 Time: 03:29:48.297
STATION A
FID=SEL-351-4-R200-D980821 CID=7B9A
Current(%Inom) Voltage(%Vbase) Vbase SSI
No. Date Time Ia Ib Ic Ig In Va Vb Vc Vs (kV) Condition
85 03/07/98 03:29:29.107 100 100 100 0 0 100 97 100 0 18.0 PRE
84 03/07/98 03:29:29.111 100 100 100 0 0 100 97 100 0 18.0 PRE
83 03/07/98 03:29:29.115 100 100 100 0 0 100 92 100 0 18.0 PRE
82 03/07/98 03:29:29.119 100 100 100 0 0 100 91 100 0 18.0 PRE
81 03/07/98 03:29:29.123 100 100 100 0 0 100 90 100 0 18.0 PRE
80 03/07/98 03:29:29.128 100 100 100 0 0 100 89 100 0 18.0 PRE
79 03/07/98 03:29:29.132 100 100 100 0 0 100 89 100 0 18.0 PRE
78 03/07/98 03:29:29.136 100 100 100 0 0 101 89 101 0 17.9 PRE
77 03/07/98 03:29:29.140 100 100 100 0 0 101 90 101 0 17.9 SAG
76 03/07/98 03:29:29.144 100 100 100 0 0 101 90 101 0 17.9 SAG
×
×
×
2 03/07/98 03:29:30.140 100 100 100 1 0 101 90 101 0 17.9 SAG
1 03/07/98 03:29:33.499 100 100 100 0 0 101 97 101 0 17.9 POST
=>>
Figure 12.6: Example Sag/Swell/Interruption (SSI) Report
