Date Code 20001006 Command Summary 1
SEL-351 Instruction Manual

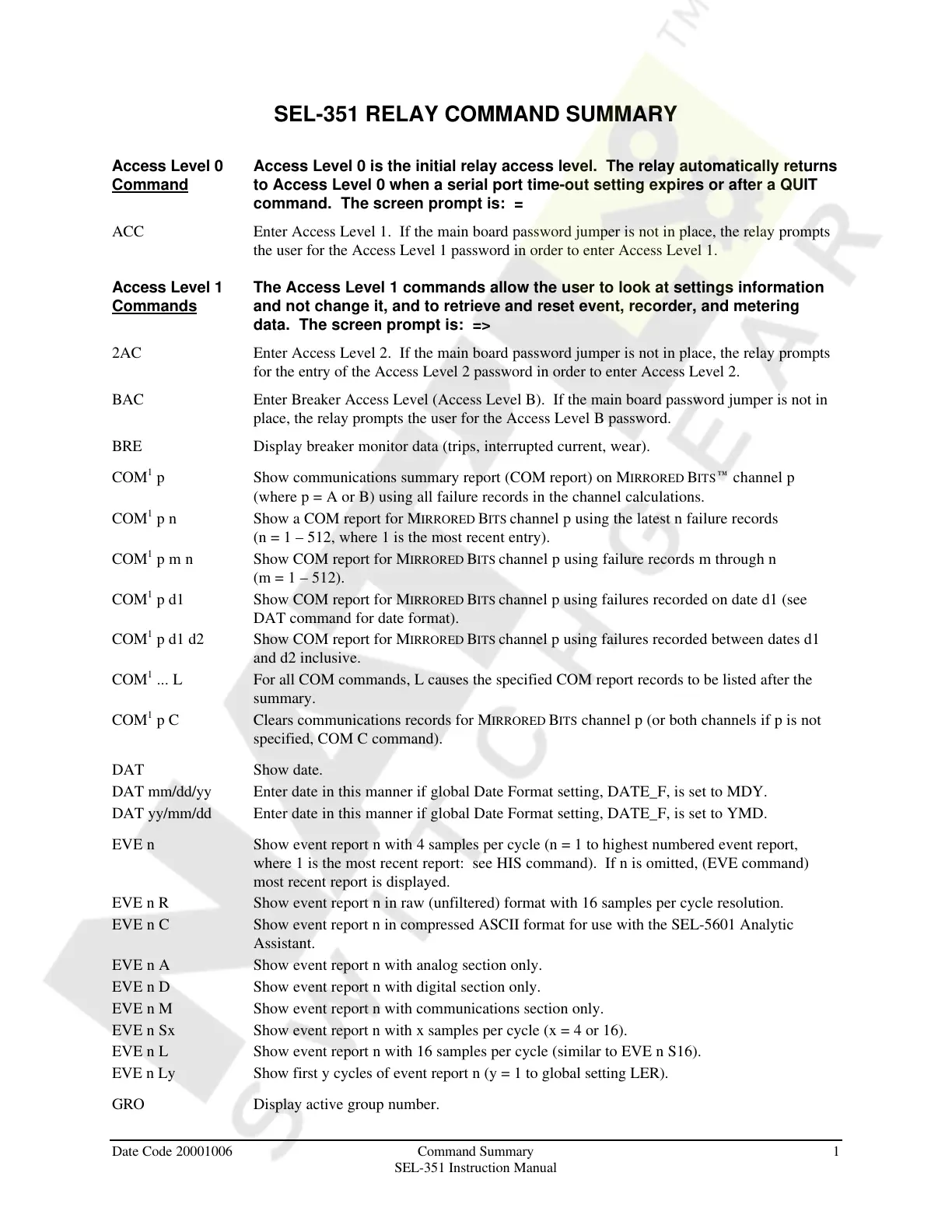

SEL-351 RELAY COMMAND SUMMARY
Access Level 0
Command
Access Level 0 is the initial relay access level. The relay automatically returns
to Access Level 0 when a serial port time-out setting expires or after a QUIT
command. The screen prompt is: =
ACC Enter Access Level 1. If the main board password jumper is not in place, the relay prompts
the user for the Access Level 1 password in order to enter Access Level 1.
Access Level 1
Commands
The Access Level 1 commands allow the user to look at settings information
and not change it, and to retrieve and reset event, recorder, and metering
data. The screen prompt is: =>
2AC Enter Access Level 2. If the main board password jumper is not in place, the relay prompts
for the entry of the Access Level 2 password in order to enter Access Level 2.
BAC Enter Breaker Access Level (Access Level B). If the main board password jumper is not in
place, the relay prompts the user for the Access Level B password.
BRE Display breaker monitor data (trips, interrupted current, wear).
COM
1
p Show communications summary report (COM report) on MIRRORED BITSÔ channel p
(where p = A or B) using all failure records in the channel calculations.
COM
1
p n Show a COM report for MIRRORED BITS channel p using the latest n failure records
(n = 1 – 512, where 1 is the most recent entry).
COM
1
p m n Show COM report for MIRRORED BITS channel p using failure records m through n
(m = 1 – 512).
COM
1
p d1 Show COM report for MIRRORED BITS channel p using failures recorded on date d1 (see
DAT command for date format).
COM
1
p d1 d2 Show COM report for MIRRORED BITS channel p using failures recorded between dates d1
and d2 inclusive.
COM
1
... L For all COM commands, L causes the specified COM report records to be listed after the
summary.
COM
1
p C Clears communications records for MIRRORED BITS channel p (or both channels if p is not
specified, COM C command).
DAT Show date.
DAT mm/dd/yy Enter date in this manner if global Date Format setting, DATE_F, is set to MDY.
DAT yy/mm/dd Enter date in this manner if global Date Format setting, DATE_F, is set to YMD.
EVE n Show event report n with 4 samples per cycle (n = 1 to highest numbered event report,
where 1 is the most recent report: see HIS command). If n is omitted, (EVE command)
most recent report is displayed.
EVE n R Show event report n in raw (unfiltered) format with 16 samples per cycle resolution.
EVE n C Show event report n in compressed ASCII format for use with the SEL-5601 Analytic
Assistant.
EVE n A Show event report n with analog section only.
EVE n D Show event report n with digital section only.
EVE n M Show event report n with communications section only.
EVE n Sx Show event report n with x samples per cycle (x = 4 or 16).
EVE n L Show event report n with 16 samples per cycle (similar to EVE n S16).
EVE n Ly Show first y cycles of event report n (y = 1 to global setting LER).
GRO Display active group number.
