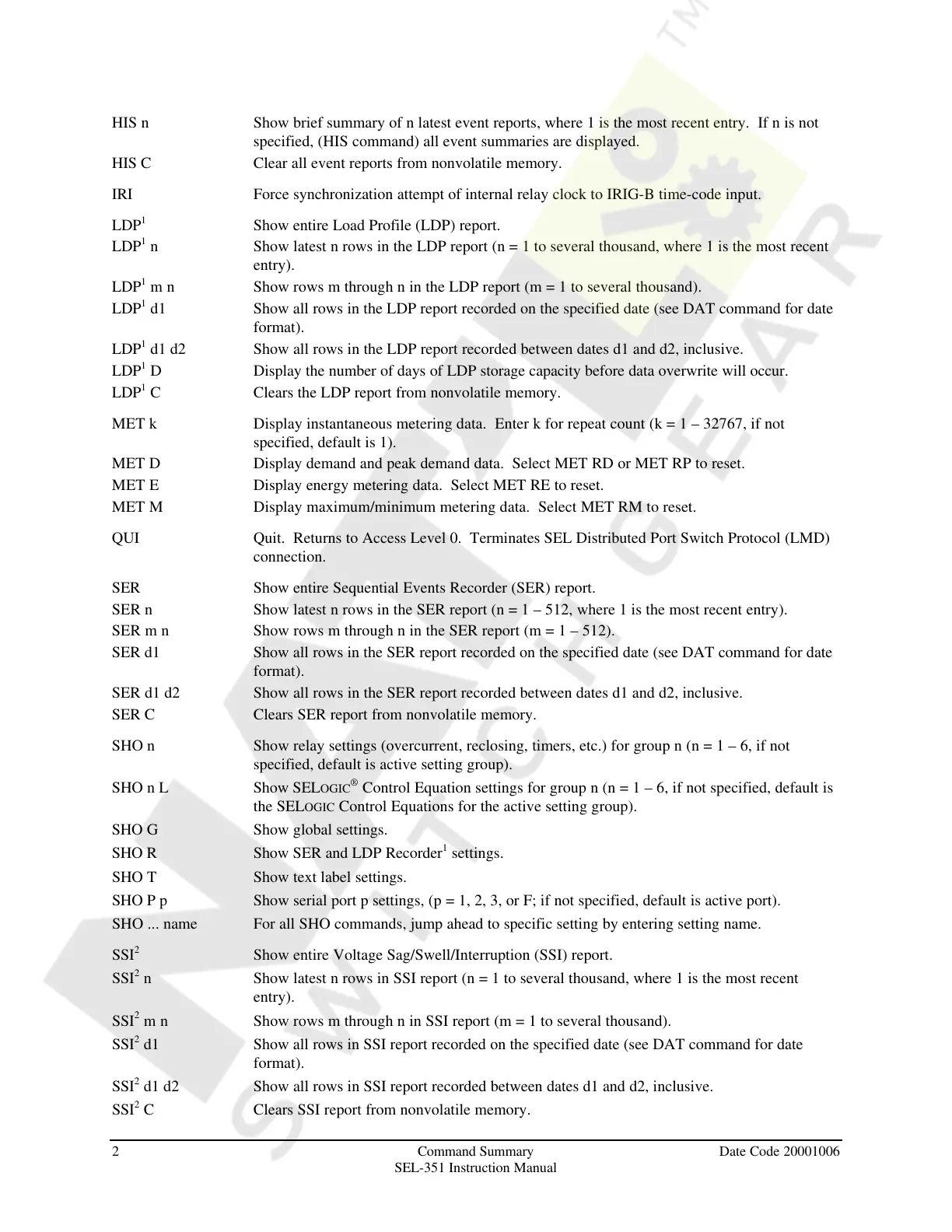

2 Command Summary Date Code 20001006
SEL-351 Instruction Manual
HIS n Show brief summary of n latest event reports, where 1 is the most recent entry. If n is not
specified, (HIS command) all event summaries are displayed.
HIS C Clear all event reports from nonvolatile memory.
IRI Force synchronization attempt of internal relay clock to IRIG-B time-code input.
LDP
1
Show entire Load Profile (LDP) report.
LDP
1
n Show latest n rows in the LDP report (n = 1 to several thousand, where 1 is the most recent
entry).
LDP
1
m n Show rows m through n in the LDP report (m = 1 to several thousand).
LDP
1
d1 Show all rows in the LDP report recorded on the specified date (see DAT command for date
format).
LDP
1
d1 d2 Show all rows in the LDP report recorded between dates d1 and d2, inclusive.
LDP
1
D Display the number of days of LDP storage capacity before data overwrite will occur.
LDP
1
C Clears the LDP report from nonvolatile memory.
MET k Display instantaneous metering data. Enter k for repeat count (k = 1 – 32767, if not
specified, default is 1).
MET D Display demand and peak demand data. Select MET RD or MET RP to reset.
MET E Display energy metering data. Select MET RE to reset.
MET M Display maximum/minimum metering data. Select MET RM to reset.
QUI Quit. Returns to Access Level 0. Terminates SEL Distributed Port Switch Protocol (LMD)
connection.
SER Show entire Sequential Events Recorder (SER) report.
SER n Show latest n rows in the SER report (n = 1 – 512, where 1 is the most recent entry).
SER m n Show rows m through n in the SER report (m = 1 – 512).
SER d1 Show all rows in the SER report recorded on the specified date (see DAT command for date
format).
SER d1 d2 Show all rows in the SER report recorded between dates d1 and d2, inclusive.
SER C Clears SER report from nonvolatile memory.
SHO n Show relay settings (overcurrent, reclosing, timers, etc.) for group n (n = 1 – 6, if not
specified, default is active setting group).
SHO n L Show SELOGIC
®
Control Equation settings for group n (n = 1 – 6, if not specified, default is
the SELOGIC Control Equations for the active setting group).
SHO G Show global settings.
SHO R Show SER and LDP Recorder
1
settings.
SHO T Show text label settings.
SHO P p Show serial port p settings, (p = 1, 2, 3, or F; if not specified, default is active port).
SHO ... name For all SHO commands, jump ahead to specific setting by entering setting name.
SSI
2
Show entire Voltage Sag/Swell/Interruption (SSI) report.
SSI
2
n Show latest n rows in SSI report (n = 1 to several thousand, where 1 is the most recent
entry).
SSI
2
m n Show rows m through n in SSI report (m = 1 to several thousand).
SSI
2
d1 Show all rows in SSI report recorded on the specified date (see DAT command for date
format).
SSI
2
d1 d2 Show all rows in SSI report recorded between dates d1 and d2, inclusive.
SSI
2
C Clears SSI report from nonvolatile memory.
