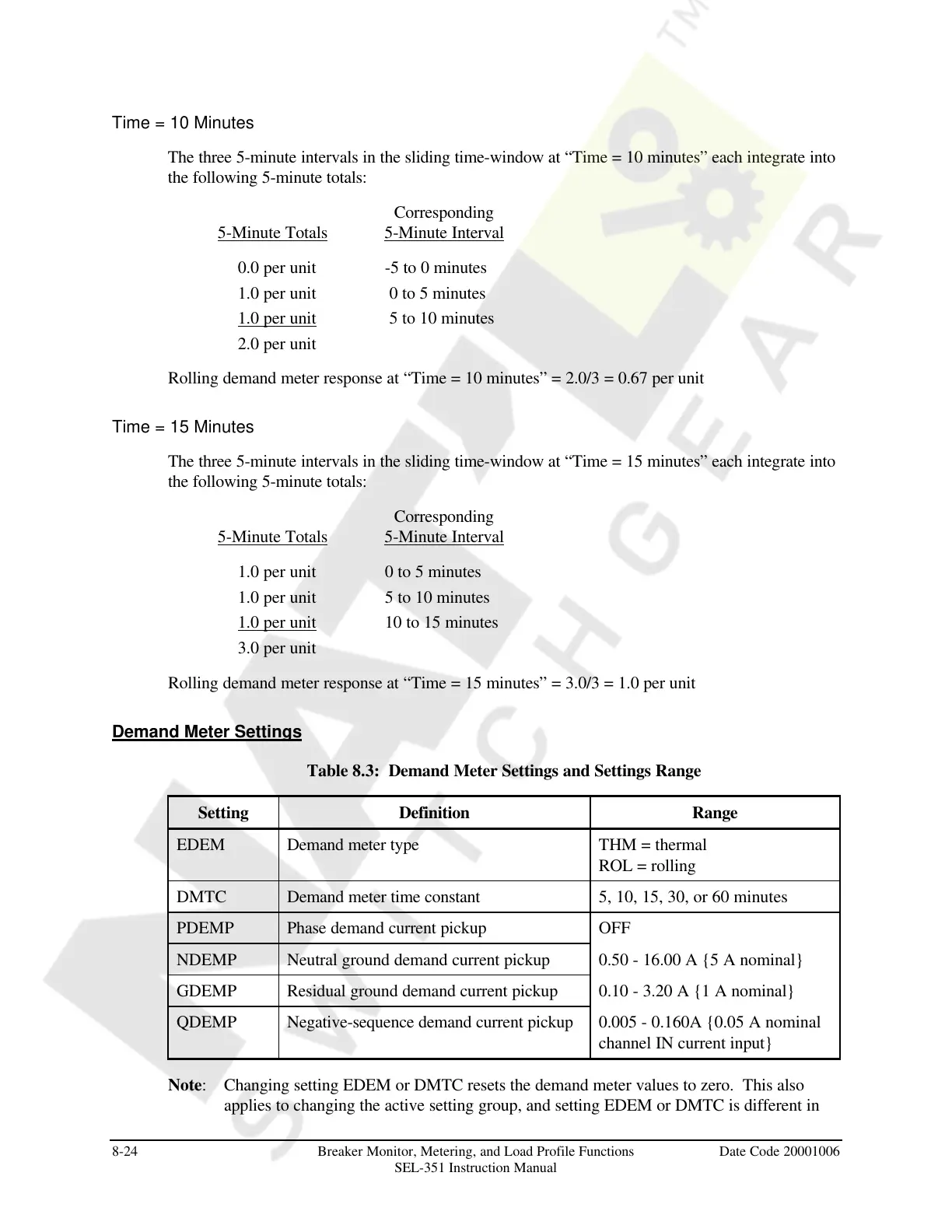

8-24 Breaker Monitor, Metering, and Load Profile Functions Date Code 20001006
SEL-351 Instruction Manual
Time = 10 Minutes
The three 5-minute intervals in the sliding time-window at “Time = 10 minutes” each integrate into
the following 5-minute totals:
5-Minute Totals
Corresponding
5-Minute Interval
0.0 per unit -5 to 0 minutes
1.0 per unit 0 to 5 minutes
1.0 per unit 5 to 10 minutes
2.0 per unit
Rolling demand meter response at “Time = 10 minutes” = 2.0/3 = 0.67 per unit
Time = 15 Minutes
The three 5-minute intervals in the sliding time-window at “Time = 15 minutes” each integrate into
the following 5-minute totals:
5-Minute Totals
Corresponding
5-Minute Interval
1.0 per unit 0 to 5 minutes
1.0 per unit 5 to 10 minutes
1.0 per unit 10 to 15 minutes
3.0 per unit
Rolling demand meter response at “Time = 15 minutes” = 3.0/3 = 1.0 per unit
Demand Meter Settings
Table 8.3: Demand Meter Settings and Settings Range
Setting Definition Range
EDEM Demand meter type THM = thermal
ROL = rolling
DMTC Demand meter time constant 5, 10, 15, 30, or 60 minutes
PDEMP Phase demand current pickup OFF
NDEMP Neutral ground demand current pickup 0.50 - 16.00 A {5 A nominal}
GDEMP Residual ground demand current pickup 0.10 - 3.20 A {1 A nominal}
QDEMP Negative-sequence demand current pickup 0.005 - 0.160A {0.05 A nominal
channel IN current input}
Note: Changing setting EDEM or DMTC resets the demand meter values to zero. This also
applies to changing the active setting group, and setting EDEM or DMTC is different in
