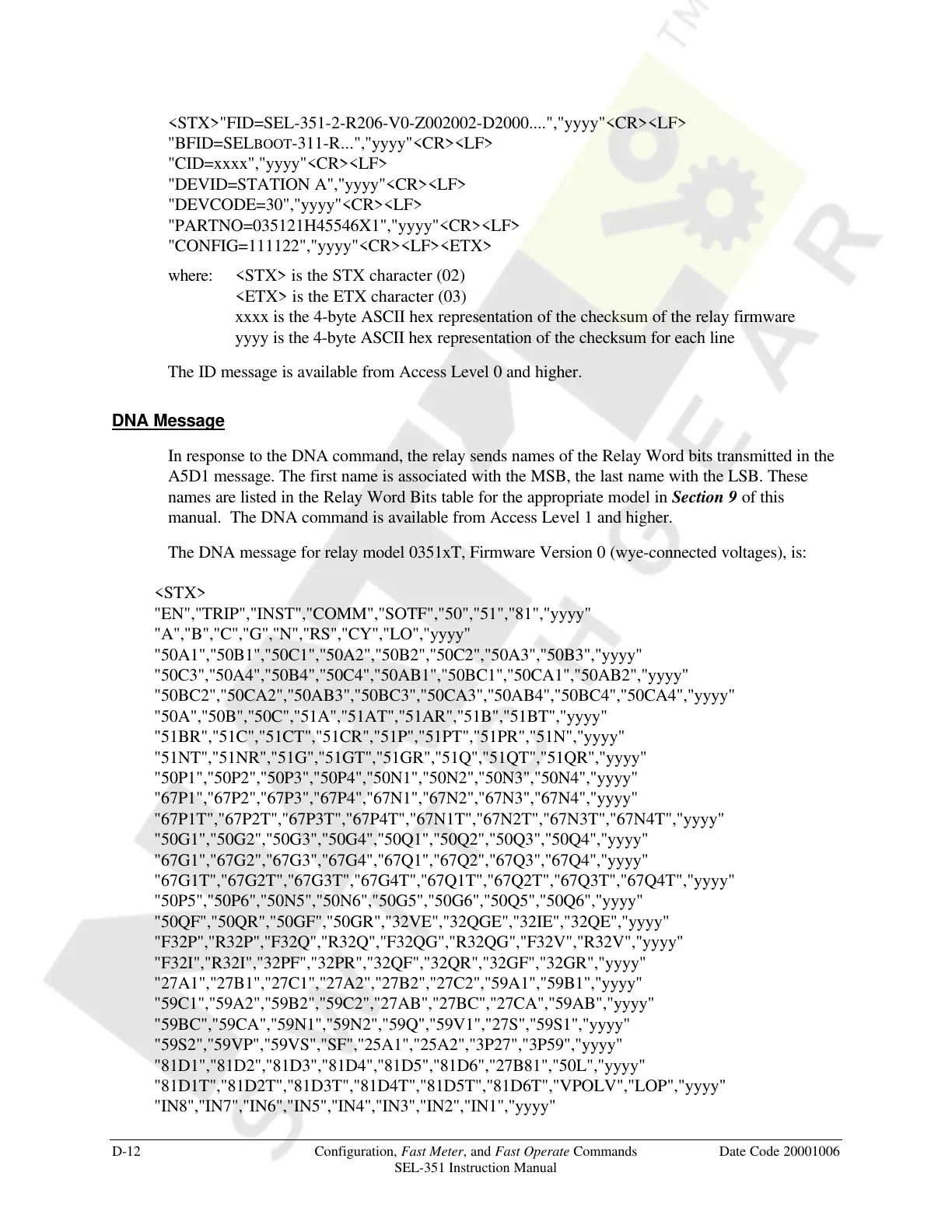

D-12 Configuration, Fast Meter, and Fast Operate Commands Date Code 20001006
SEL-351 Instruction Manual
<STX>"FID=SEL-351-2-R206-V0-Z002002-D2000....","yyyy"<CR><LF>
"BFID=SELBOOT-311-R...","yyyy"<CR><LF>
"CID=xxxx","yyyy"<CR><LF>
"DEVID=STATION A","yyyy"<CR><LF>
"DEVCODE=30","yyyy"<CR><LF>
"PARTNO=035121H45546X1","yyyy"<CR><LF>
"CONFIG=111122","yyyy"<CR><LF><ETX>
where: <STX> is the STX character (02)
<ETX> is the ETX character (03)
xxxx is the 4-byte ASCII hex representation of the checksum of the relay firmware
yyyy is the 4-byte ASCII hex representation of the checksum for each line
The ID message is available from Access Level 0 and higher.
DNA Message
In response to the DNA command, the relay sends names of the Relay Word bits transmitted in the
A5D1 message. The first name is associated with the MSB, the last name with the LSB. These
names are listed in the Relay Word Bits table for the appropriate model in Section 9 of this
manual. The DNA command is available from Access Level 1 and higher.
The DNA message for relay model 0351xT, Firmware Version 0 (wye-connected voltages), is:
<STX>
"EN","TRIP","INST","COMM","SOTF","50","51","81","yyyy"
"A","B","C","G","N","RS","CY","LO","yyyy"
"50A1","50B1","50C1","50A2","50B2","50C2","50A3","50B3","yyyy"
"50C3","50A4","50B4","50C4","50AB1","50BC1","50CA1","50AB2","yyyy"
"50BC2","50CA2","50AB3","50BC3","50CA3","50AB4","50BC4","50CA4","yyyy"
"50A","50B","50C","51A","51AT","51AR","51B","51BT","yyyy"
"51BR","51C","51CT","51CR","51P","51PT","51PR","51N","yyyy"
"51NT","51NR","51G","51GT","51GR","51Q","51QT","51QR","yyyy"
"50P1","50P2","50P3","50P4","50N1","50N2","50N3","50N4","yyyy"
"67P1","67P2","67P3","67P4","67N1","67N2","67N3","67N4","yyyy"
"67P1T","67P2T","67P3T","67P4T","67N1T","67N2T","67N3T","67N4T","yyyy"
"50G1","50G2","50G3","50G4","50Q1","50Q2","50Q3","50Q4","yyyy"
"67G1","67G2","67G3","67G4","67Q1","67Q2","67Q3","67Q4","yyyy"
"67G1T","67G2T","67G3T","67G4T","67Q1T","67Q2T","67Q3T","67Q4T","yyyy"
"50P5","50P6","50N5","50N6","50G5","50G6","50Q5","50Q6","yyyy"
"50QF","50QR","50GF","50GR","32VE","32QGE","32IE","32QE","yyyy"
"F32P","R32P","F32Q","R32Q","F32QG","R32QG","F32V","R32V","yyyy"
"F32I","R32I","32PF","32PR","32QF","32QR","32GF","32GR","yyyy"
"27A1","27B1","27C1","27A2","27B2","27C2","59A1","59B1","yyyy"
"59C1","59A2","59B2","59C2","27AB","27BC","27CA","59AB","yyyy"
"59BC","59CA","59N1","59N2","59Q","59V1","27S","59S1","yyyy"
"59S2","59VP","59VS","SF","25A1","25A2","3P27","3P59","yyyy"
"81D1","81D2","81D3","81D4","81D5","81D6","27B81","50L","yyyy"
"81D1T","81D2T","81D3T","81D4T","81D5T","81D6T","VPOLV","LOP","yyyy"
"IN8","IN7","IN6","IN5","IN4","IN3","IN2","IN1","yyyy"
