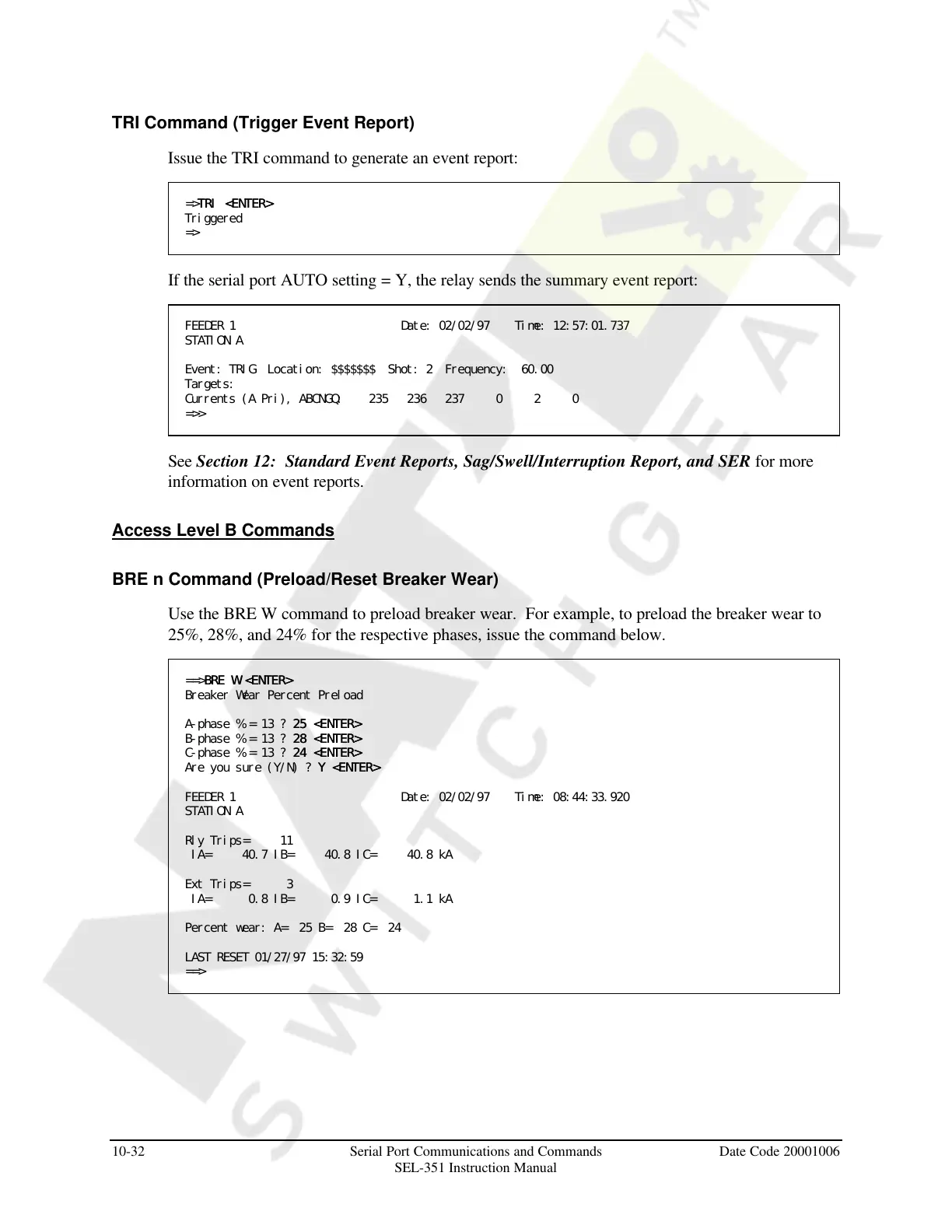

10-32 Serial Port Communications and Commands Date Code 20001006
SEL-351 Instruction Manual
TRI Command (Trigger Event Report)
Issue the TRI command to generate an event report:
=>TRI <ENTER>TRI <ENTER>
Triggered
=>
If the serial port AUTO setting = Y, the relay sends the summary event report:
FEEDER 1 Date: 02/02/97 Time: 12:57:01.737
STATION A
Event: TRIG Location: $$$$$$$ Shot: 2 Frequency: 60.00
Targets:
Currents (A Pri), ABCNGQ: 235 236 237 0 2 0
=>>
See Section 12: Standard Event Reports, Sag/Swell/Interruption Report, and SER for more
information on event reports.
Access Level B Commands
BRE n Command (Preload/Reset Breaker Wear)
Use the BRE W command to preload breaker wear. For example, to preload the breaker wear to
25%, 28%, and 24% for the respective phases, issue the command below.
==>BRE W <ENTER>BRE W <ENTER>
Breaker Wear Percent Preload
A-phase % = 13 ? 25 <ENTER>25 <ENTER>
B-phase % = 13 ? 28 <ENTER>28 <ENTER>
C-phase % = 13 ? 24 <ENTER>24 <ENTER>
Are you sure (Y/N) ? Y <ENTER>Y <ENTER>
FEEDER 1 Date: 02/02/97 Time: 08:44:33.920
STATION A
Rly Trips= 11
IA= 40.7 IB= 40.8 IC= 40.8 kA
Ext Trips= 3
IA= 0.8 IB= 0.9 IC= 1.1 kA
Percent wear: A= 25 B= 28 C= 24
LAST RESET 01/27/97 15:32:59
==>
