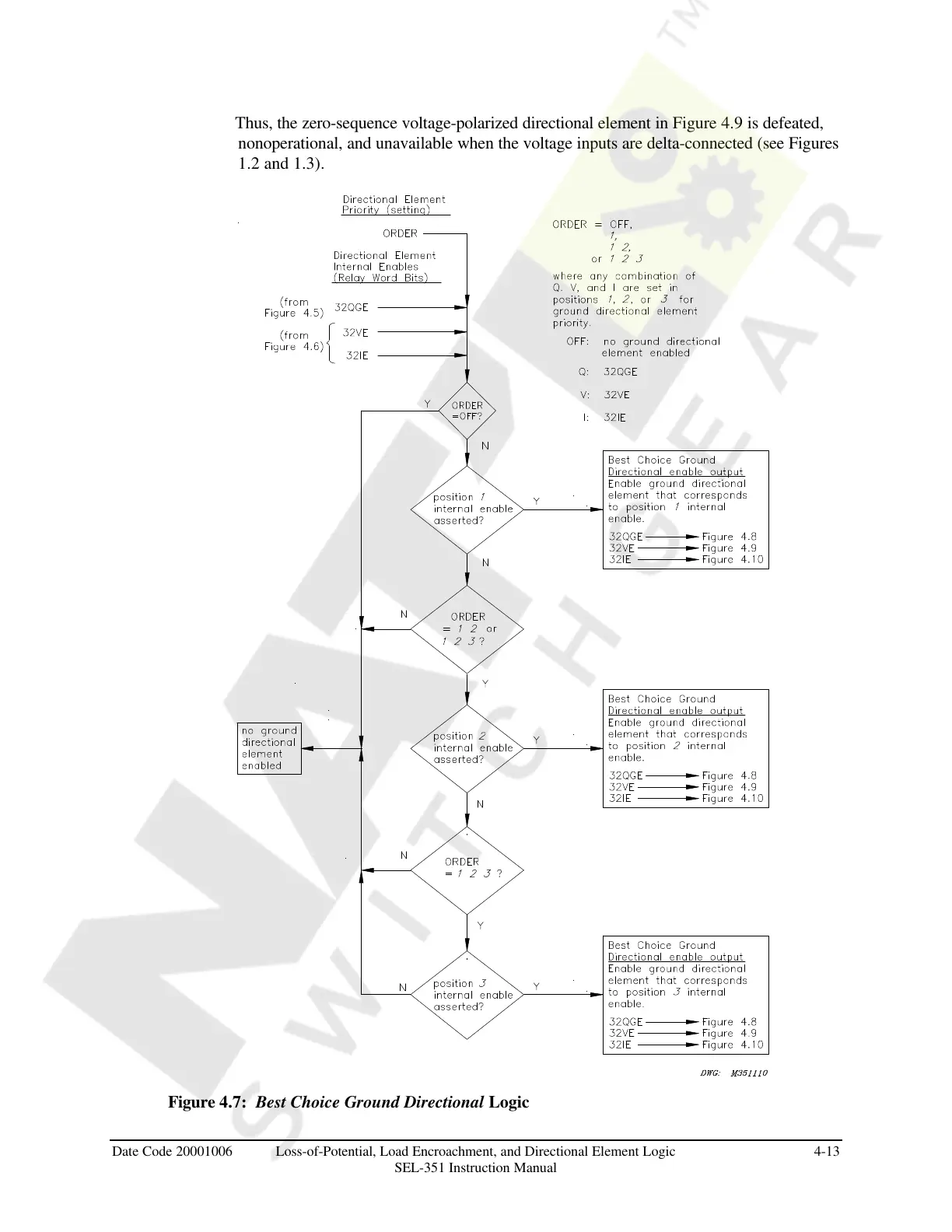

Thus, the zero-sequence voltage-polarized directional element in Figure 4.9 is defeated,
nonoperational, and unavailable when the voltage inputs are delta-connected (see Figures
1.2 and 1.3).
Figure 4.7: Best Choice Ground Directional Logic
