Date Code 20001006 Loss-of-Potential, Load Encroachment, and Directional Element Logic 4-21

SEL-351 Instruction Manual

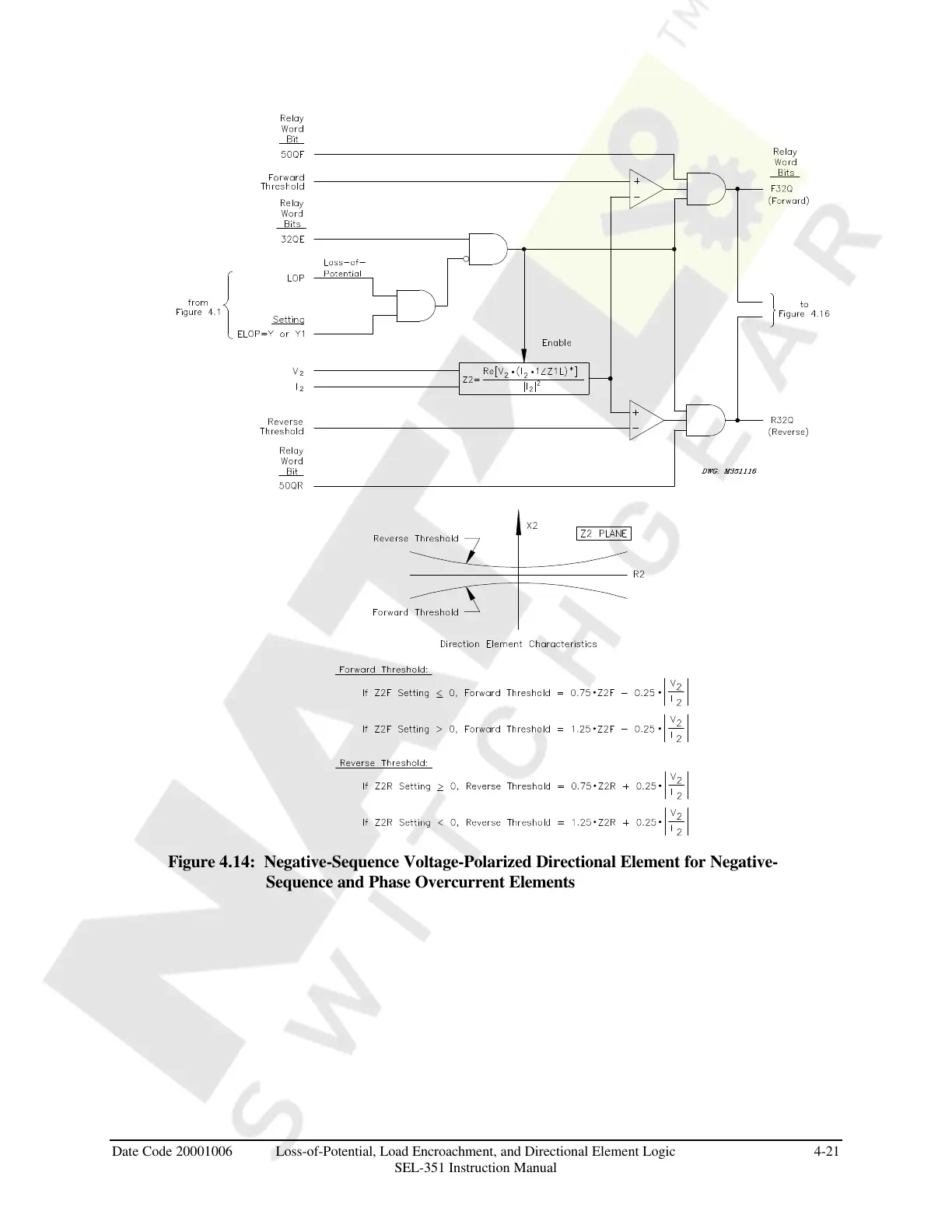

Figure 4.14: Negative-Sequence Voltage-Polarized Directional Element for Negative-

Sequence and Phase Overcurrent Elements

Courtesy of NationalSwitchgear.com
