6-6 Close and Reclose Logic Date Code 20001006

SEL-351 Instruction Manual

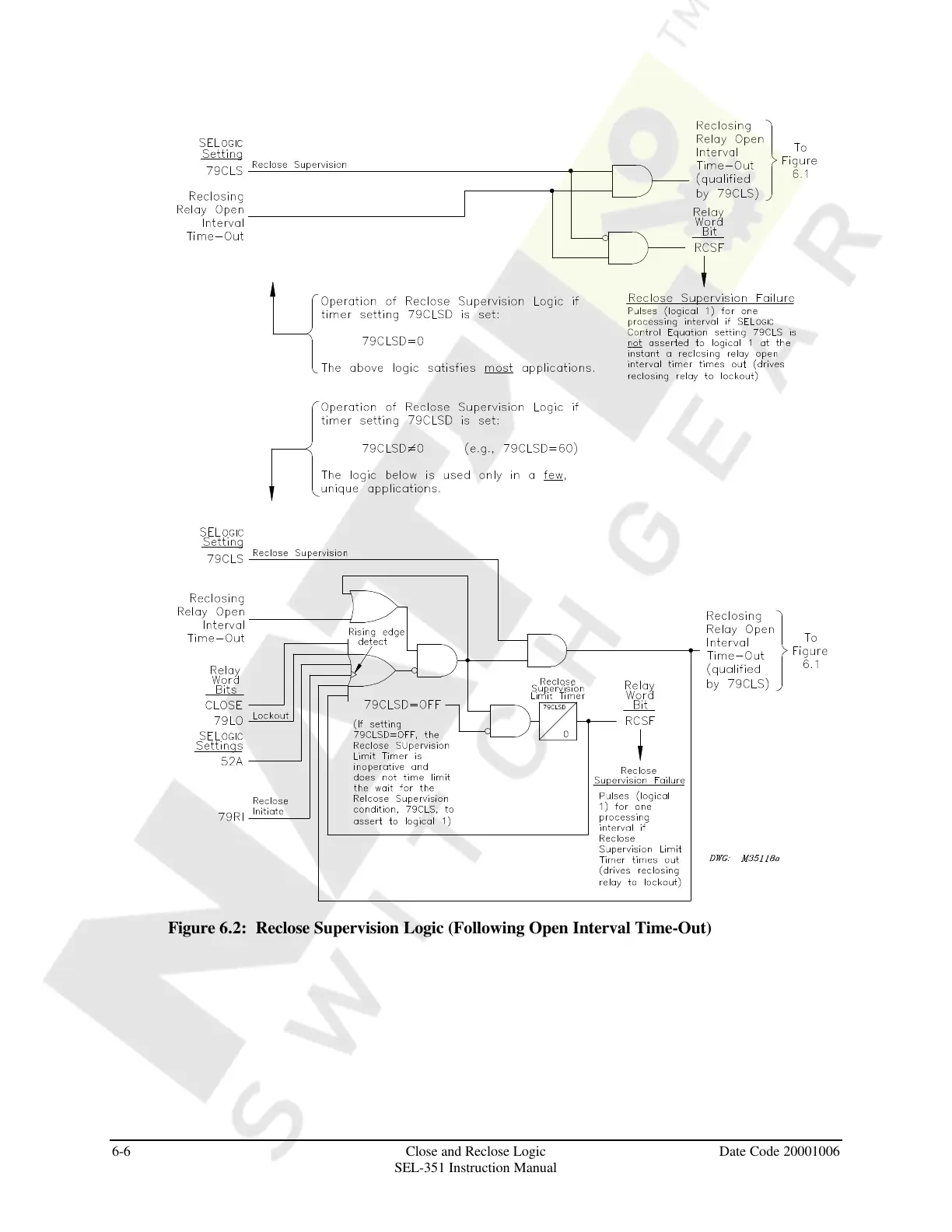

Figure 6.2: Reclose Supervision Logic (Following Open Interval Time-Out)

Courtesy of NationalSwitchgear.com
