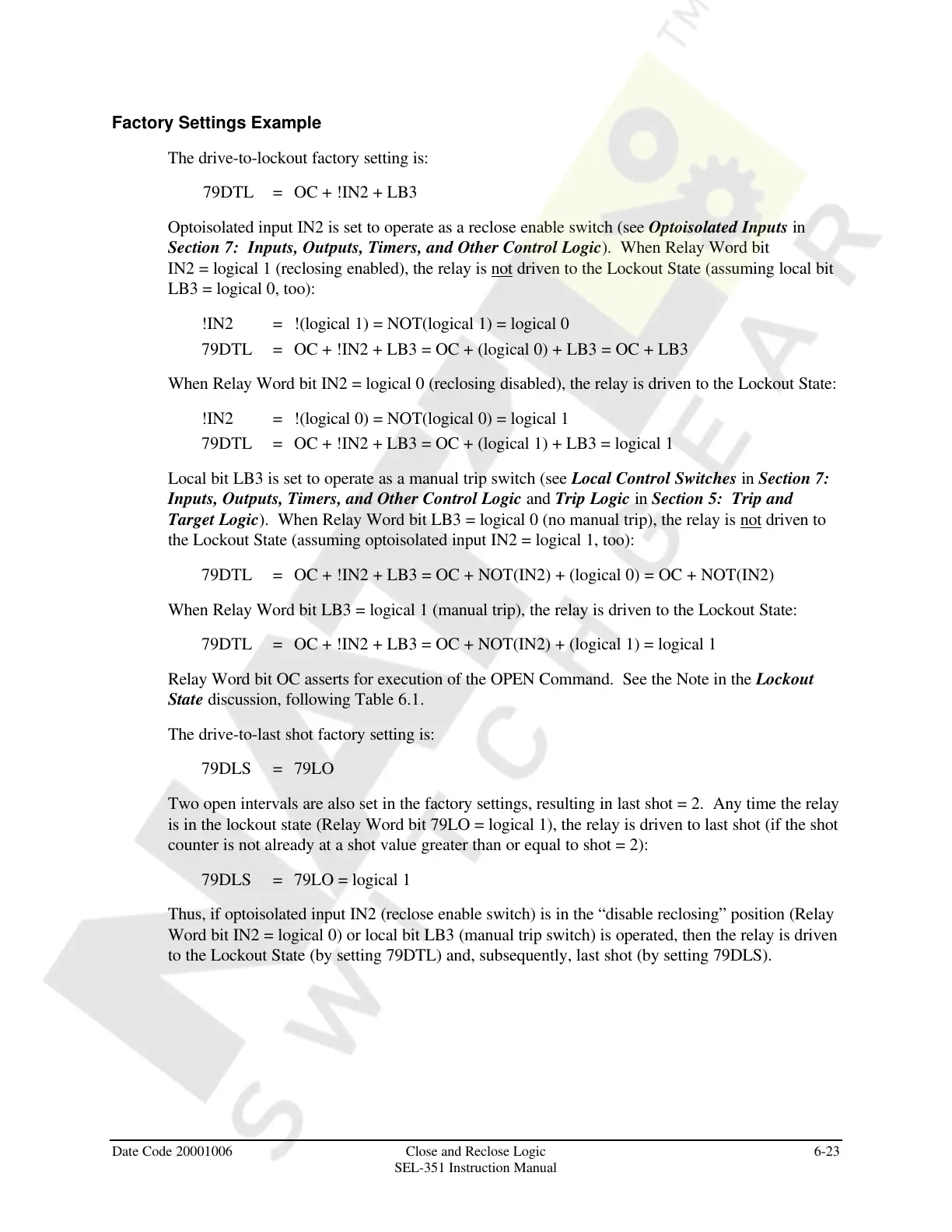

Date Code 20001006 Close and Reclose Logic 6-23
SEL-351 Instruction Manual
Factory Settings Example
The drive-to-lockout factory setting is:
79DTL = OC + !IN2 + LB3
Optoisolated input IN2 is set to operate as a reclose enable switch (see Optoisolated Inputs in
Section 7: Inputs, Outputs, Timers, and Other Control Logic). When Relay Word bit
IN2 = logical 1 (reclosing enabled), the relay is not driven to the Lockout State (assuming local bit
LB3 = logical 0, too):
!IN2 = !(logical 1) = NOT(logical 1) = logical 0
79DTL = OC + !IN2 + LB3 = OC + (logical 0) + LB3 = OC + LB3
When Relay Word bit IN2 = logical 0 (reclosing disabled), the relay is driven to the Lockout State:
!IN2 = !(logical 0) = NOT(logical 0) = logical 1
79DTL = OC + !IN2 + LB3 = OC + (logical 1) + LB3 = logical 1
Local bit LB3 is set to operate as a manual trip switch (see Local Control Switches in Section 7:
Inputs, Outputs, Timers, and Other Control Logic and Trip Logic in Section 5: Trip and
Target Logic). When Relay Word bit LB3 = logical 0 (no manual trip), the relay is not driven to
the Lockout State (assuming optoisolated input IN2 = logical 1, too):
79DTL = OC + !IN2 + LB3 = OC + NOT(IN2) + (logical 0) = OC + NOT(IN2)
When Relay Word bit LB3 = logical 1 (manual trip), the relay is driven to the Lockout State:
79DTL = OC + !IN2 + LB3 = OC + NOT(IN2) + (logical 1) = logical 1
Relay Word bit OC asserts for execution of the OPEN Command. See the Note in the Lockout
State discussion, following Table 6.1.
The drive-to-last shot factory setting is:
79DLS = 79LO
Two open intervals are also set in the factory settings, resulting in last shot = 2. Any time the relay
is in the lockout state (Relay Word bit 79LO = logical 1), the relay is driven to last shot (if the shot
counter is not already at a shot value greater than or equal to shot = 2):
79DLS = 79LO = logical 1
Thus, if optoisolated input IN2 (reclose enable switch) is in the “disable reclosing” position (Relay
Word bit IN2 = logical 0) or local bit LB3 (manual trip switch) is operated, then the relay is driven
to the Lockout State (by setting 79DTL) and, subsequently, last shot (by setting 79DLS).
