7-24 Inputs, Outputs, Timers, and Other Control Logic Date Code 20001006
SEL-351 Instruction Manual

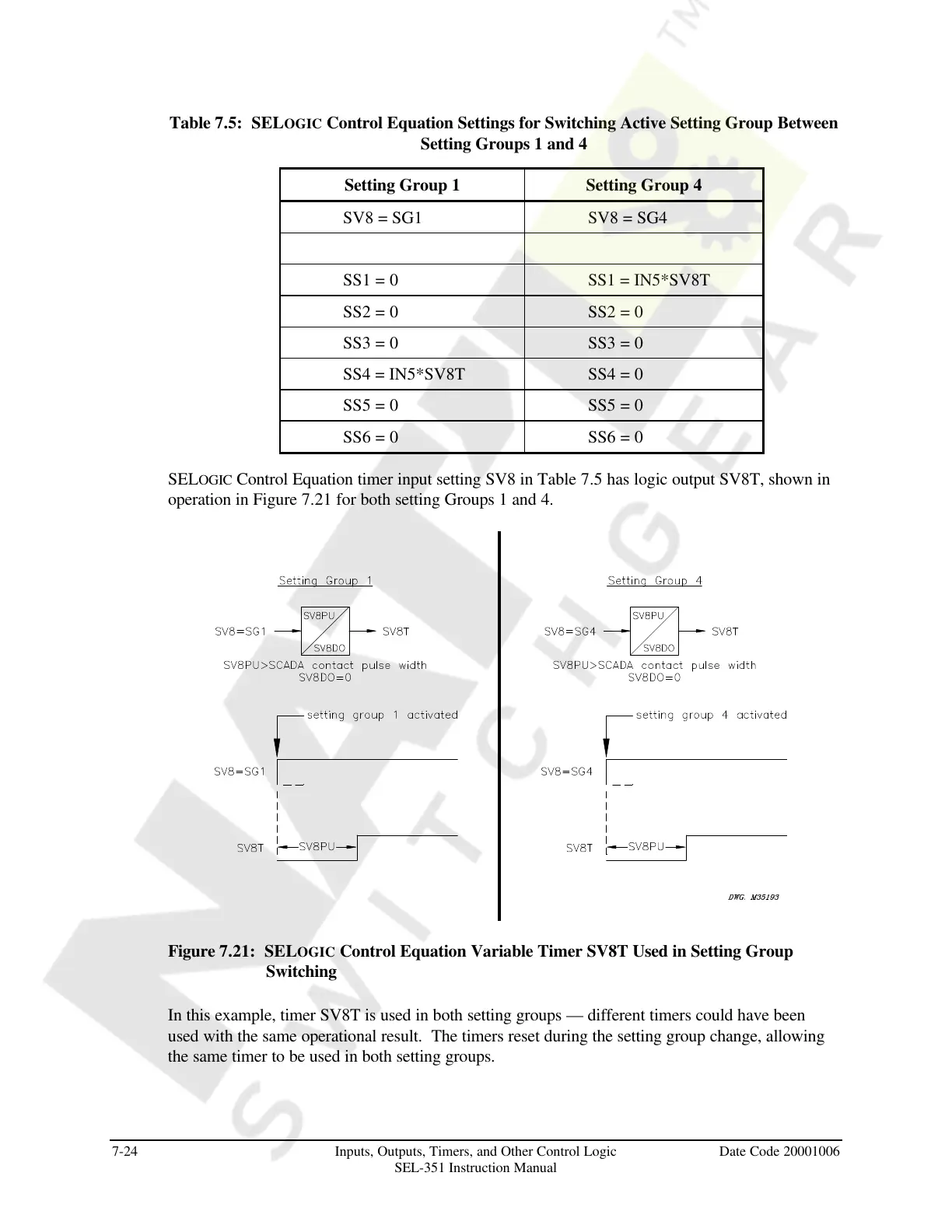

Table 7.5: SELOGIC Control Equation Settings for Switching Active Setting Group Between
Setting Groups 1 and 4
Setting Group 1 Setting Group 4
SV8 = SG1 SV8 = SG4
SS1 = 0 SS1 = IN5*SV8T
SS2 = 0 SS2 = 0
SS3 = 0 SS3 = 0
SS4 = IN5*SV8T SS4 = 0
SS5 = 0 SS5 = 0
SS6 = 0 SS6 = 0
SELOGIC Control Equation timer input setting SV8 in Table 7.5 has logic output SV8T, shown in
operation in Figure 7.21 for both setting Groups 1 and 4.
Figure 7.21: SELOGIC Control Equation Variable Timer SV8T Used in Setting Group
Switching
In this example, timer SV8T is used in both setting groups — different timers could have been
used with the same operational result. The timers reset during the setting group change, allowing
the same timer to be used in both setting groups.
