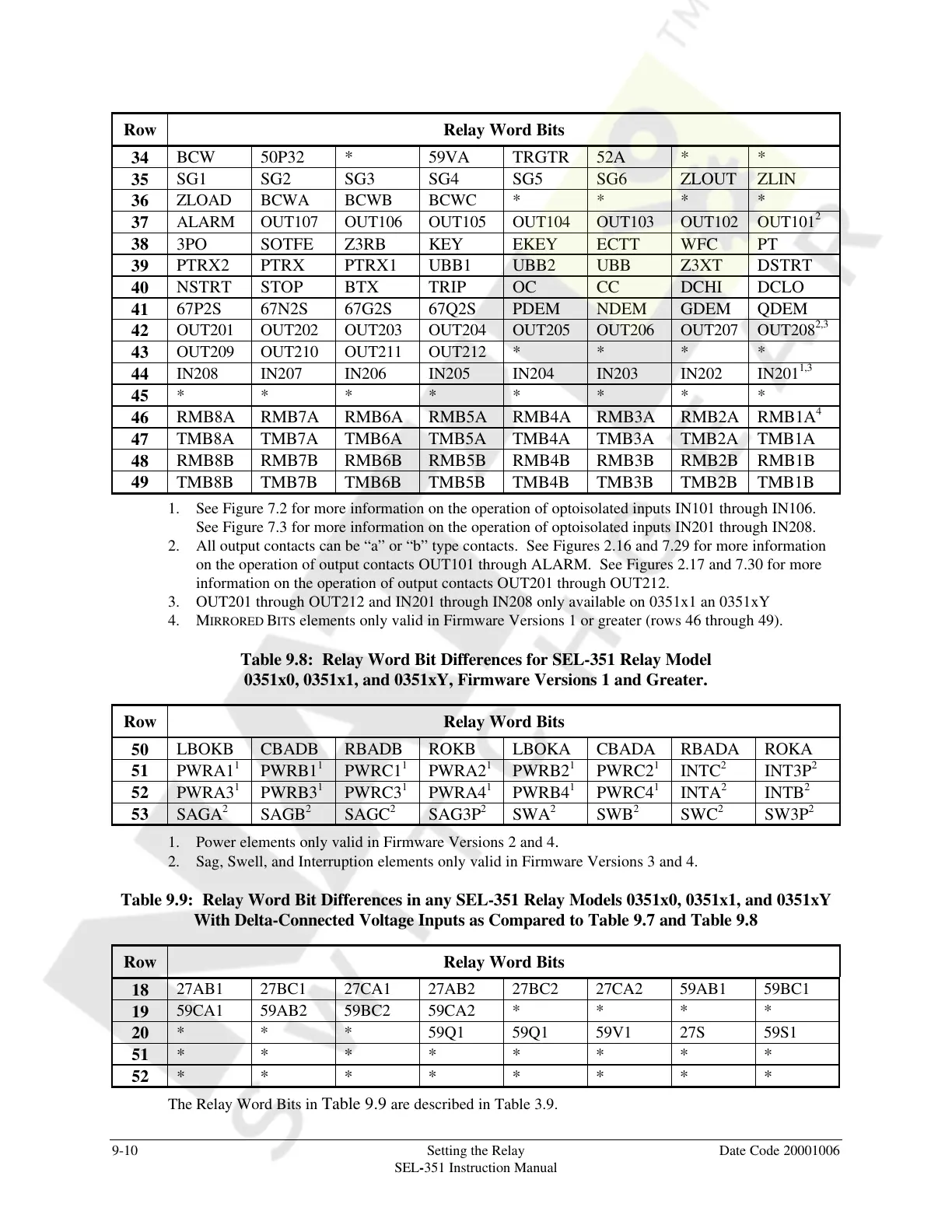

9-10 Setting the Relay Date Code 20001006
SEL-351 Instruction Manual
Row Relay Word Bits
34
BCW 50P32 * 59VA TRGTR 52A * *
35
SG1 SG2 SG3 SG4 SG5 SG6 ZLOUT ZLIN
36
ZLOAD BCWA BCWB BCWC * * * *
37
ALARM OUT107 OUT106 OUT105 OUT104 OUT103 OUT102 OUT101
2
38
3PO SOTFE Z3RB KEY EKEY ECTT WFC PT
39
PTRX2 PTRX PTRX1 UBB1 UBB2 UBB Z3XT DSTRT
40
NSTRT STOP BTX TRIP OC CC DCHI DCLO
41
67P2S 67N2S 67G2S 67Q2S PDEM NDEM GDEM QDEM
42
OUT201 OUT202 OUT203 OUT204 OUT205 OUT206 OUT207 OUT208
2,3
43
OUT209 OUT210 OUT211 OUT212 * * * *
44
IN208 IN207 IN206 IN205 IN204 IN203 IN202 IN201
1,3
45
* * * * * * * *
46
RMB8A RMB7A RMB6A RMB5A RMB4A RMB3A RMB2A RMB1A
4
47
TMB8A TMB7A TMB6A TMB5A TMB4A TMB3A TMB2A TMB1A
48
RMB8B RMB7B RMB6B RMB5B RMB4B RMB3B RMB2B RMB1B
49
TMB8B TMB7B TMB6B TMB5B TMB4B TMB3B TMB2B TMB1B
1. See Figure 7.2 for more information on the operation of optoisolated inputs IN101 through IN106.
See Figure 7.3 for more information on the operation of optoisolated inputs IN201 through IN208.
2. All output contacts can be “a” or “b” type contacts. See Figures 2.16 and 7.29 for more information
on the operation of output contacts OUT101 through ALARM. See Figures 2.17 and 7.30 for more
information on the operation of output contacts OUT201 through OUT212.
3. OUT201 through OUT212 and IN201 through IN208 only available on 0351x1 an 0351xY
4. MIRRORED BITS elements only valid in Firmware Versions 1 or greater (rows 46 through 49).
Table 9.8: Relay Word Bit Differences for SEL-351 Relay Model
0351x0, 0351x1, and 0351xY, Firmware Versions 1 and Greater.
Row Relay Word Bits
50
LBOKB CBADB RBADB ROKB LBOKA CBADA RBADA ROKA
51
PWRA1
1
PWRB1
1
PWRC1
1
PWRA2
1
PWRB2
1
PWRC2
1
INTC
2
INT3P
2
52
PWRA3
1
PWRB3
1
PWRC3
1
PWRA4
1
PWRB4
1
PWRC4
1
INTA
2
INTB
2
53
SAGA
2
SAGB
2
SAGC
2
SAG3P
2
SWA
2
SWB
2
SWC
2
SW3P
2
1. Power elements only valid in Firmware Versions 2 and 4.
2. Sag, Swell, and Interruption elements only valid in Firmware Versions 3 and 4.
Table 9.9: Relay Word Bit Differences in any SEL-351 Relay Models 0351x0, 0351x1, and 0351xY
With Delta-Connected Voltage Inputs as Compared to Table 9.7 and Table 9.8
Row Relay Word Bits
18
27AB1 27BC1 27CA1 27AB2 27BC2 27CA2 59AB1 59BC1
19
59CA1 59AB2 59BC2 59CA2 * * * *
20
* * * 59Q1 59Q1 59V1 27S 59S1
51
* * * * * * * *
52
* * * * * * * *
The Relay Word Bits in Table 9.9 are described in Table 3.9.
