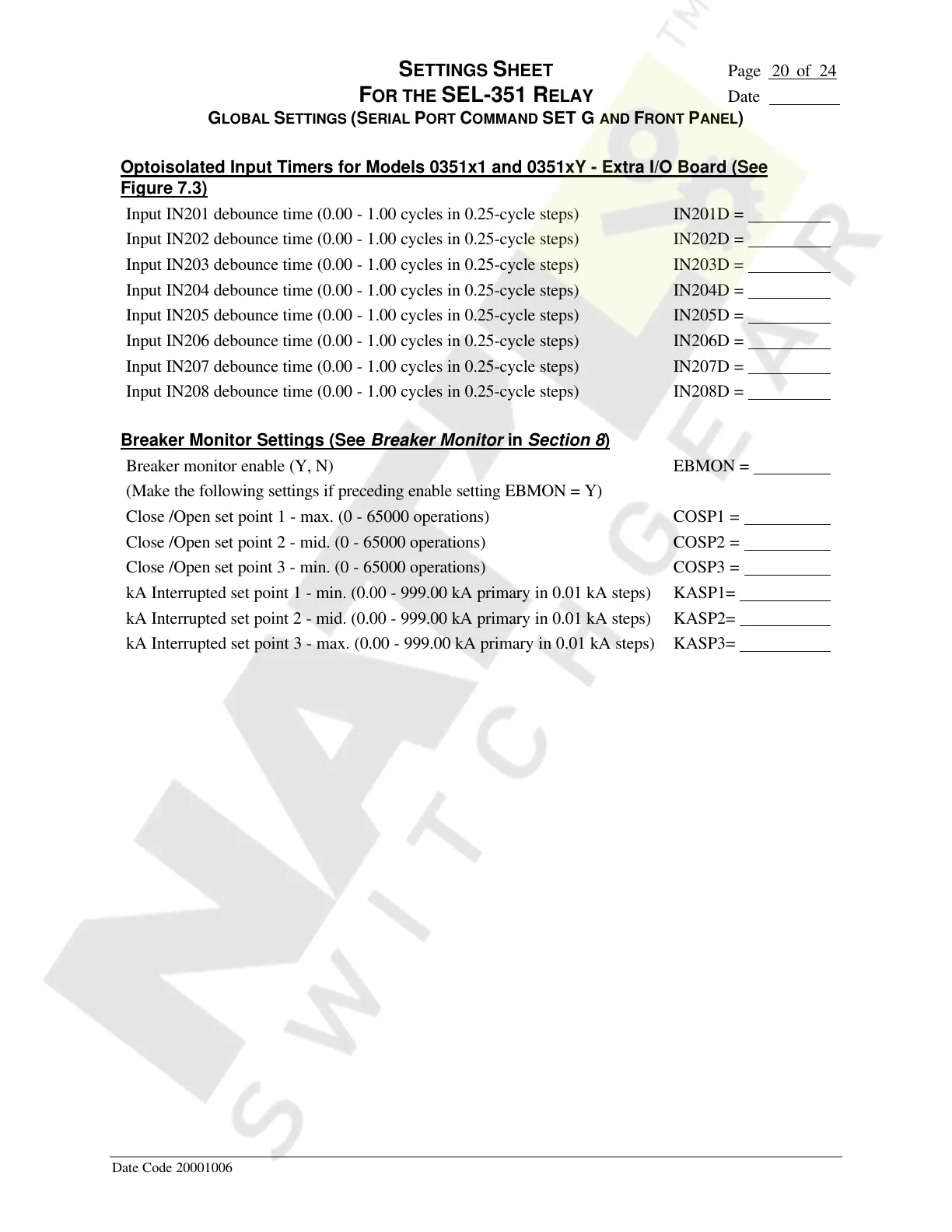

Schweitzer Engineering Laboratories SEL-351 - Page 400

SETTINGS SHEET Page 20 of 24
FOR THE SEL-351 RELAY Date
GLOBAL SETTINGS (SERIAL PORT COMMAND SET G AND FRONT PANEL)
Date Code 20001006
Optoisolated Input Timers for Models 0351x1 and 0351xY - Extra I/O Board (See
Figure 7.3)
Input IN201 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN201D =
Input IN202 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN202D =
Input IN203 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN203D =
Input IN204 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN204D =
Input IN205 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN205D =
Input IN206 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN206D =
Input IN207 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN207D =
Input IN208 debounce time (0.00 - 1.00 cycles in 0.25-cycle steps) IN208D =
Breaker Monitor Settings (See Breaker Monitor in Section 8)
Breaker monitor enable (Y, N) EBMON =
(Make the following settings if preceding enable setting EBMON = Y)
Close /Open set point 1 - max. (0 - 65000 operations) COSP1 =
Close /Open set point 2 - mid. (0 - 65000 operations) COSP2 =
Close /Open set point 3 - min. (0 - 65000 operations) COSP3 =
kA Interrupted set point 1 - min. (0.00 - 999.00 kA primary in 0.01 kA steps) KASP1=
kA Interrupted set point 2 - mid. (0.00 - 999.00 kA primary in 0.01 kA steps) KASP2=
kA Interrupted set point 3 - max. (0.00 - 999.00 kA primary in 0.01 kA steps) KASP3=
