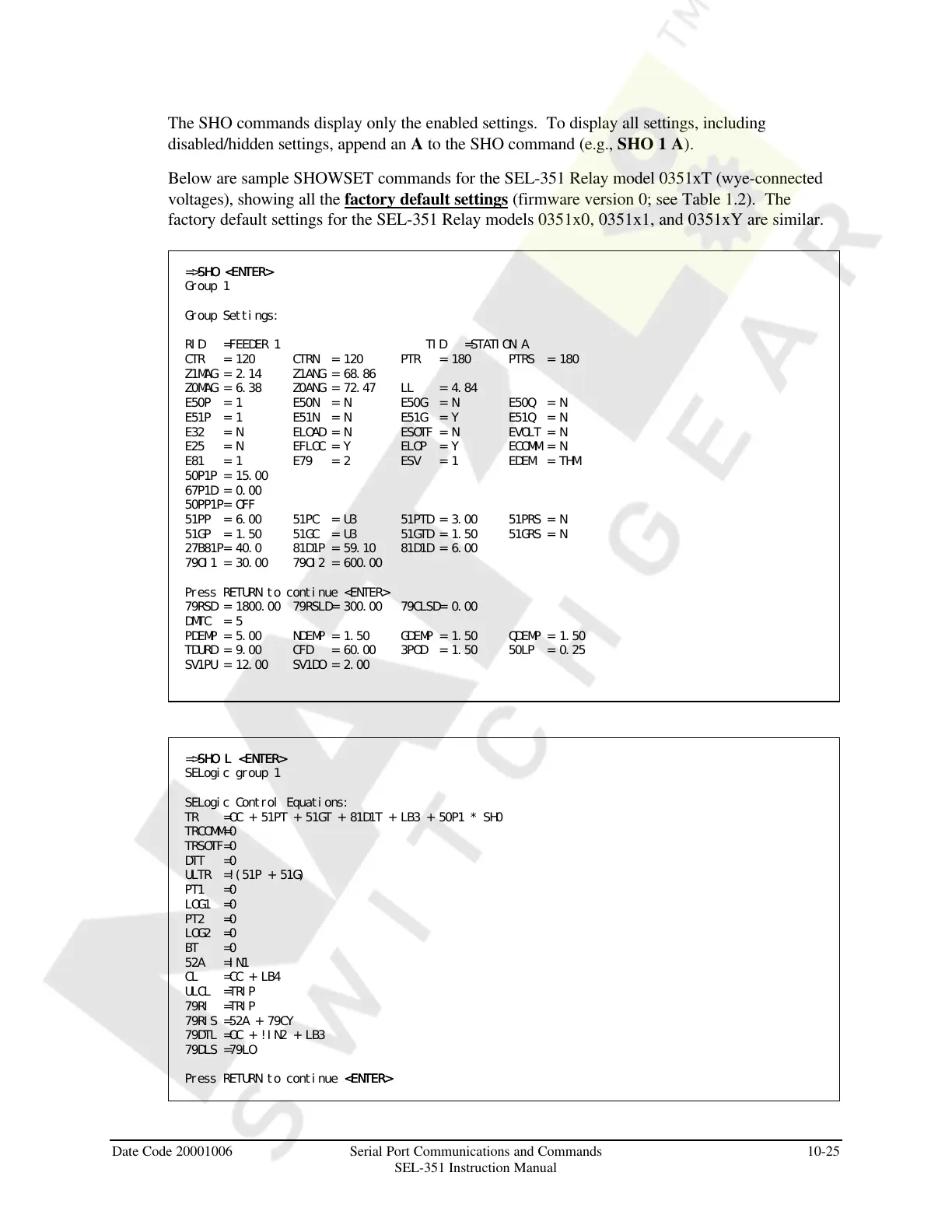

The SHO commands display only the enabled settings. To display all settings, including
disabled/hidden settings, append an A to the SHO command (e.g., SHO 1 A).
Below are sample SHOWSET commands for the SEL-351 Relay model 0351xT (wye-connected
voltages), showing all the factory default settings (firmware version 0; see Table 1.2). The
factory default settings for the SEL-351 Relay models 0351x0, 0351x1, and 0351xY are similar.
=>SHO <ENTER>SHO <ENTER>
Group 1
Group Settings:
RID =FEEDER 1 TID =STATION A
CTR = 120 CTRN = 120 PTR = 180 PTRS = 180
Z1MAG = 2.14 Z1ANG = 68.86
Z0MAG = 6.38 Z0ANG = 72.47 LL = 4.84
E50P = 1 E50N = N E50G = N E50Q = N
E51P = 1 E51N = N E51G = Y E51Q = N
E32 = N ELOAD = N ESOTF = N EVOLT = N
E25 = N EFLOC = Y ELOP = Y ECOMM = N
E81 = 1 E79 = 2 ESV = 1 EDEM = THM
50P1P = 15.00
67P1D = 0.00
50PP1P= OFF
51PP = 6.00 51PC = U3 51PTD = 3.00 51PRS = N
51GP = 1.50 51GC = U3 51GTD = 1.50 51GRS = N
27B81P= 40.0 81D1P = 59.10 81D1D = 6.00
79OI1 = 30.00 79OI2 = 600.00
Press RETURN to continue <ENTER>
79RSD = 1800.00 79RSLD= 300.00 79CLSD= 0.00
DMTC = 5
PDEMP = 5.00 NDEMP = 1.50 GDEMP = 1.50 QDEMP = 1.50
TDURD = 9.00 CFD = 60.00 3POD = 1.50 50LP = 0.25
SV1PU = 12.00 SV1DO = 2.00
=>SHO L <ENTER>SHO L <ENTER>
SELogic group 1
SELogic Control Equations:
TR =OC + 51PT + 51GT + 81D1T + LB3 + 50P1 * SH0
TRCOMM=0
TRSOTF=0
DTT =0
ULTR =!(51P + 51G)
PT1 =0
LOG1 =0
PT2 =0
LOG2 =0
BT =0
52A =IN1
CL =CC + LB4
ULCL =TRIP
79RI =TRIP
79RIS =52A + 79CY
79DTL =OC + !IN2 + LB3
79DLS =79LO
Press RETURN to continue <ENTER> <ENTER>
