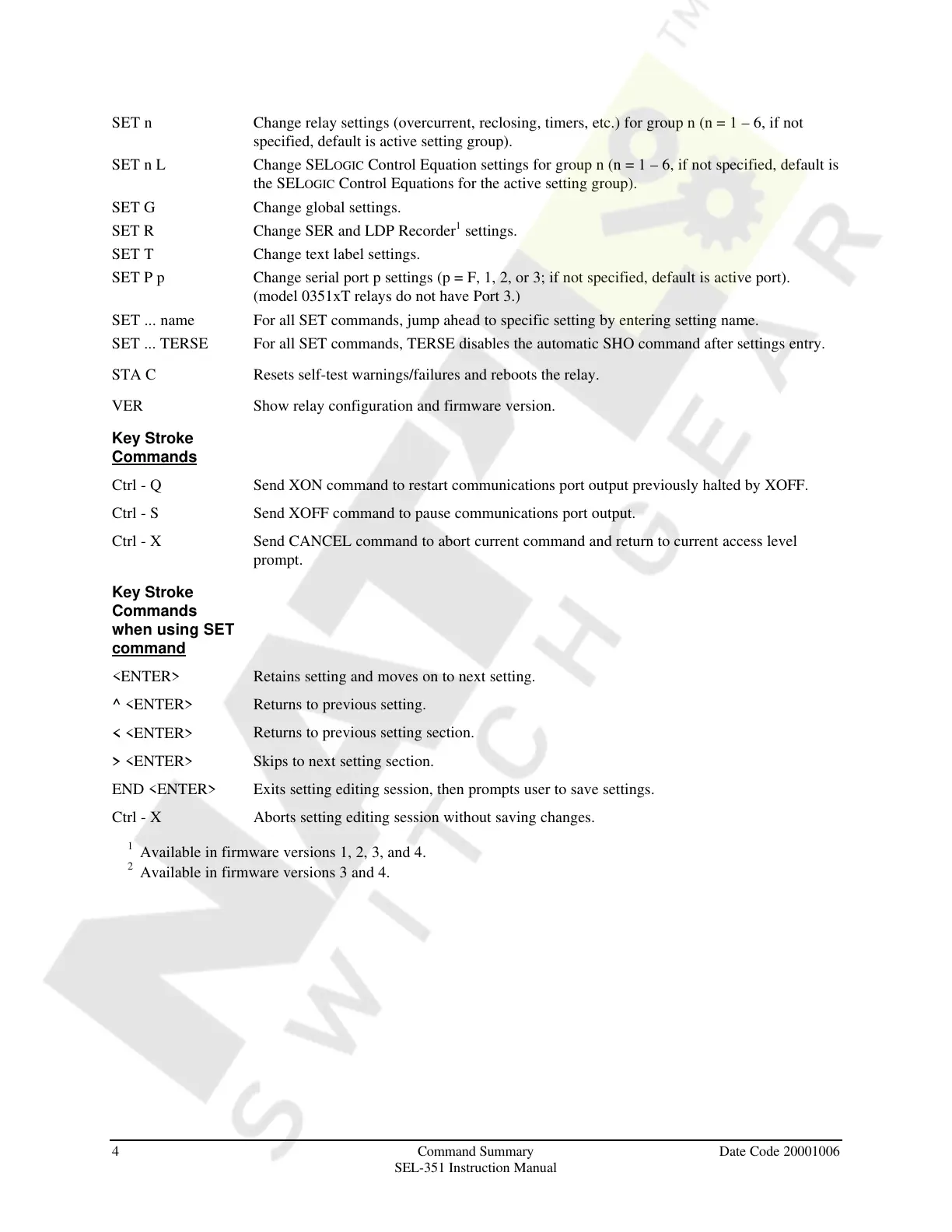

4 Command Summary Date Code 20001006
SEL-351 Instruction Manual
SET n Change relay settings (overcurrent, reclosing, timers, etc.) for group n (n = 1 – 6, if not
specified, default is active setting group).
SET n L Change SELOGIC Control Equation settings for group n (n = 1 – 6, if not specified, default is
the SELOGIC Control Equations for the active setting group).
SET G Change global settings.
SET R Change SER and LDP Recorder
1
settings.
SET T Change text label settings.
SET P p Change serial port p settings (p = F, 1, 2, or 3; if not specified, default is active port).
(model 0351xT relays do not have Port 3.)
SET ... name For all SET commands, jump ahead to specific setting by entering setting name.
SET ... TERSE For all SET commands, TERSE disables the automatic SHO command after settings entry.
STA C Resets self-test warnings/failures and reboots the relay.
VER Show relay configuration and firmware version.
Key Stroke
Commands
Ctrl - Q Send XON command to restart communications port output previously halted by XOFF.
Ctrl - S Send XOFF command to pause communications port output.
Ctrl - X Send CANCEL command to abort current command and return to current access level
prompt.
Key Stroke
Commands
when using SET
command
<ENTER> Retains setting and moves on to next setting.
^ <ENTER>
Returns to previous setting.
< <ENTER>
Returns to previous setting section.
> <ENTER>
Skips to next setting section.
END <ENTER> Exits setting editing session, then prompts user to save settings.
Ctrl - X Aborts setting editing session without saving changes.
1
Available in firmware versions 1, 2, 3, and 4.
2
Available in firmware versions 3 and 4.
