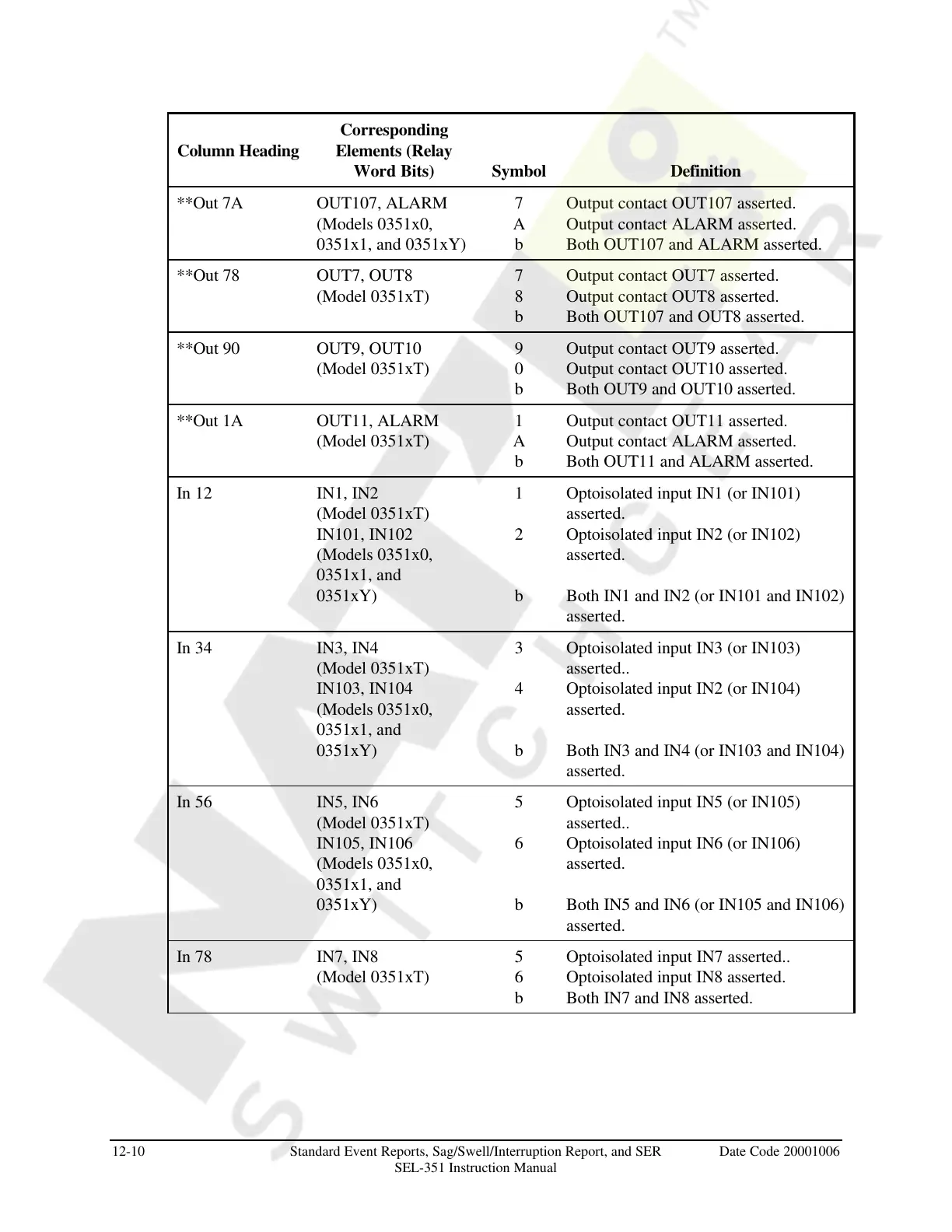

12-10 Standard Event Reports, Sag/Swell/Interruption Report, and SER Date Code 20001006
SEL-351 Instruction Manual
Column Heading
Corresponding
Elements (Relay
Word Bits) Symbol Definition
**Out 7A OUT107, ALARM 7 Output contact OUT107 asserted.
(Models 0351x0, A Output contact ALARM asserted.
0351x1, and 0351xY) b Both OUT107 and ALARM asserted.
**Out 78 OUT7, OUT8 7 Output contact OUT7 asserted.
(Model 0351xT) 8 Output contact OUT8 asserted.
b Both OUT107 and OUT8 asserted.
**Out 90 OUT9, OUT10 9 Output contact OUT9 asserted.
(Model 0351xT) 0 Output contact OUT10 asserted.
b Both OUT9 and OUT10 asserted.
**Out 1A OUT11, ALARM 1 Output contact OUT11 asserted.
(Model 0351xT) A Output contact ALARM asserted.
b Both OUT11 and ALARM asserted.
In 12 IN1, IN2
(Model 0351xT)
1 Optoisolated input IN1 (or IN101)
asserted.
IN101, IN102
(Models 0351x0,
0351x1, and
2 Optoisolated input IN2 (or IN102)
asserted.
0351xY) b Both IN1 and IN2 (or IN101 and IN102)
asserted.
In 34 IN3, IN4
(Model 0351xT)
3 Optoisolated input IN3 (or IN103)
asserted..
IN103, IN104
(Models 0351x0,
0351x1, and
4 Optoisolated input IN2 (or IN104)
asserted.
0351xY) b Both IN3 and IN4 (or IN103 and IN104)
asserted.
In 56 IN5, IN6
(Model 0351xT)
5 Optoisolated input IN5 (or IN105)
asserted..
IN105, IN106
(Models 0351x0,
0351x1, and
6 Optoisolated input IN6 (or IN106)
asserted.
0351xY) b Both IN5 and IN6 (or IN105 and IN106)
asserted.
In 78 IN7, IN8 5 Optoisolated input IN7 asserted..
(Model 0351xT) 6 Optoisolated input IN8 asserted.
b Both IN7 and IN8 asserted.
