12-32 Standard Event Reports, Sag/Swell/Interruption Report, and SER Date Code 20001006
SEL-351 Instruction Manual

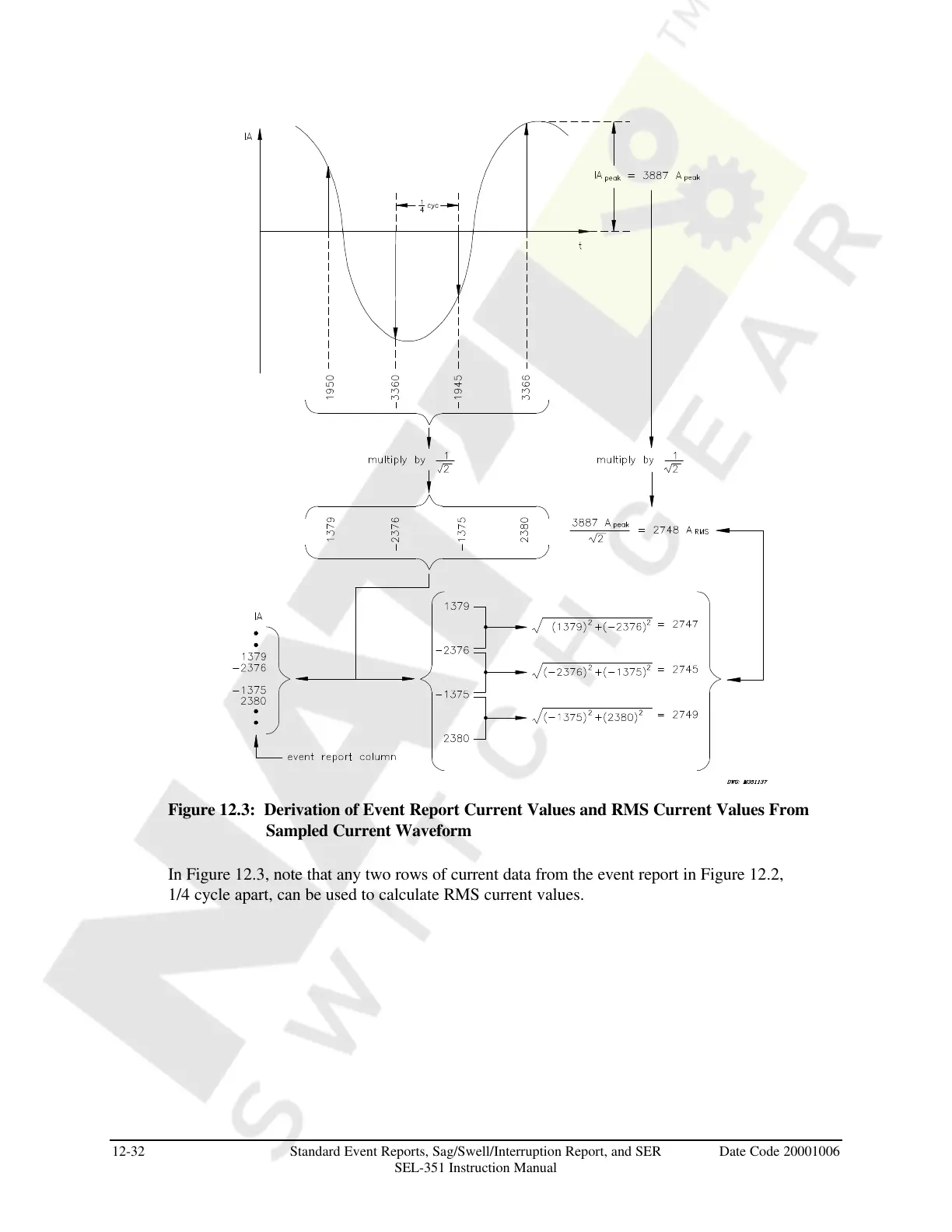

Figure 12.3: Derivation of Event Report Current Values and RMS Current Values From
Sampled Current Waveform
In Figure 12.3, note that any two rows of current data from the event report in Figure 12.2,
1/4 cycle apart, can be used to calculate RMS current values.
