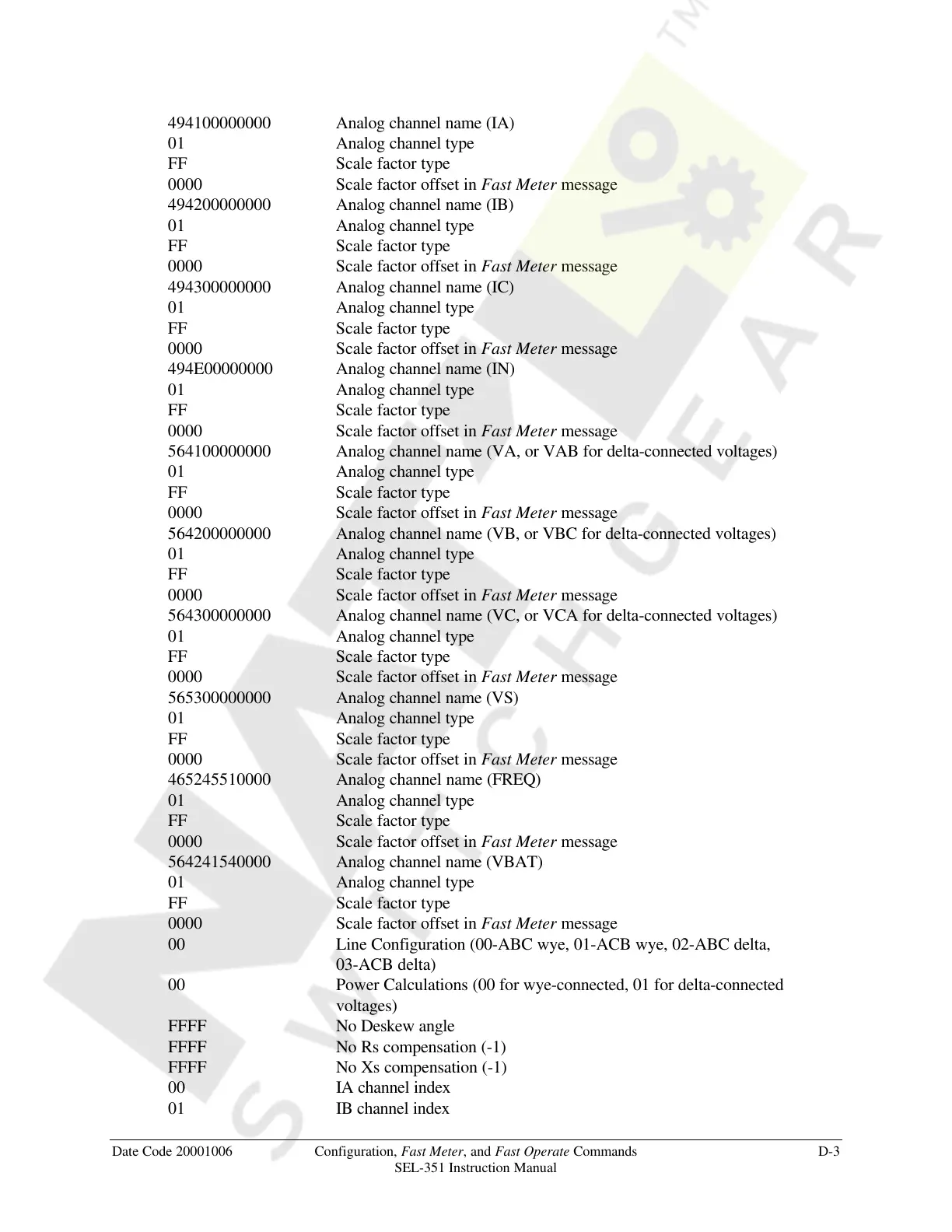

Date Code 20001006 Configuration, Fast Meter, and Fast Operate Commands D-3
SEL-351 Instruction Manual
494100000000 Analog channel name (IA)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494200000000 Analog channel name (IB)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494300000000 Analog channel name (IC)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494E00000000 Analog channel name (IN)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564100000000 Analog channel name (VA, or VAB for delta-connected voltages)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564200000000 Analog channel name (VB, or VBC for delta-connected voltages)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564300000000 Analog channel name (VC, or VCA for delta-connected voltages)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
565300000000 Analog channel name (VS)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
465245510000 Analog channel name (FREQ)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
564241540000 Analog channel name (VBAT)
01 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
00 Line Configuration (00-ABC wye, 01-ACB wye, 02-ABC delta,
03-ACB delta)
00 Power Calculations (00 for wye-connected, 01 for delta-connected
voltages)
FFFF No Deskew angle
FFFF No Rs compensation (-1)
FFFF No Xs compensation (-1)
00 IA channel index
01 IB channel index
