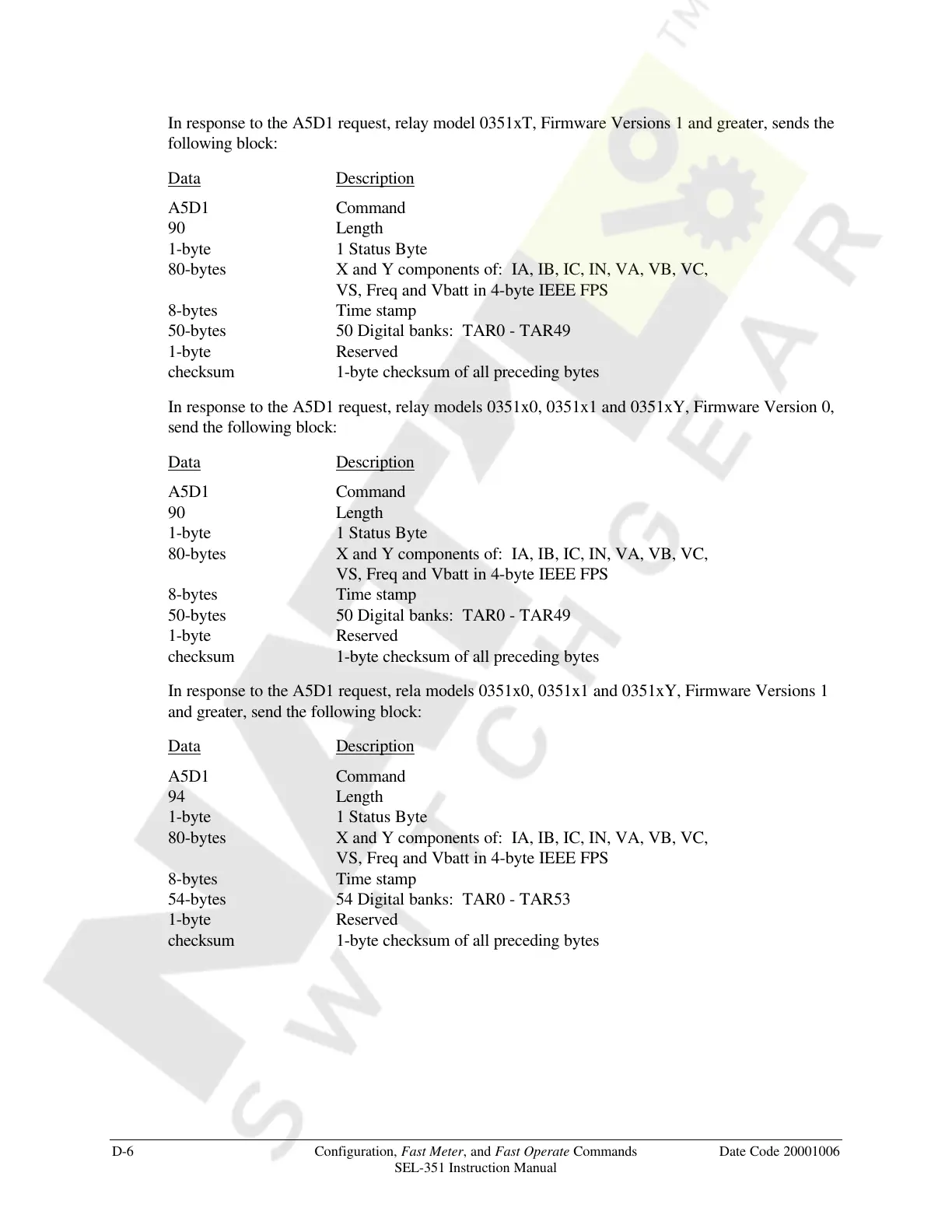

D-6 Configuration, Fast Meter, and Fast Operate Commands Date Code 20001006
SEL-351 Instruction Manual
In response to the A5D1 request, relay model 0351xT, Firmware Versions 1 and greater, sends the
following block:
Data Description
A5D1 Command
90 Length
1-byte 1 Status Byte
80-bytes X and Y components of: IA, IB, IC, IN, VA, VB, VC,
VS, Freq and Vbatt in 4-byte IEEE FPS
8-bytes Time stamp
50-bytes 50 Digital banks: TAR0 - TAR49
1-byte Reserved
checksum 1-byte checksum of all preceding bytes
In response to the A5D1 request, relay models 0351x0, 0351x1 and 0351xY, Firmware Version 0,
send the following block:
Data Description
A5D1 Command
90 Length
1-byte 1 Status Byte
80-bytes X and Y components of: IA, IB, IC, IN, VA, VB, VC,
VS, Freq and Vbatt in 4-byte IEEE FPS
8-bytes Time stamp
50-bytes 50 Digital banks: TAR0 - TAR49
1-byte Reserved
checksum 1-byte checksum of all preceding bytes
In response to the A5D1 request, rela models 0351x0, 0351x1 and 0351xY, Firmware Versions 1
and greater, send the following block:
Data Description
A5D1 Command
94 Length
1-byte 1 Status Byte
80-bytes X and Y components of: IA, IB, IC, IN, VA, VB, VC,
VS, Freq and Vbatt in 4-byte IEEE FPS
8-bytes Time stamp
54-bytes 54 Digital banks: TAR0 - TAR53
1-byte Reserved
checksum 1-byte checksum of all preceding bytes
