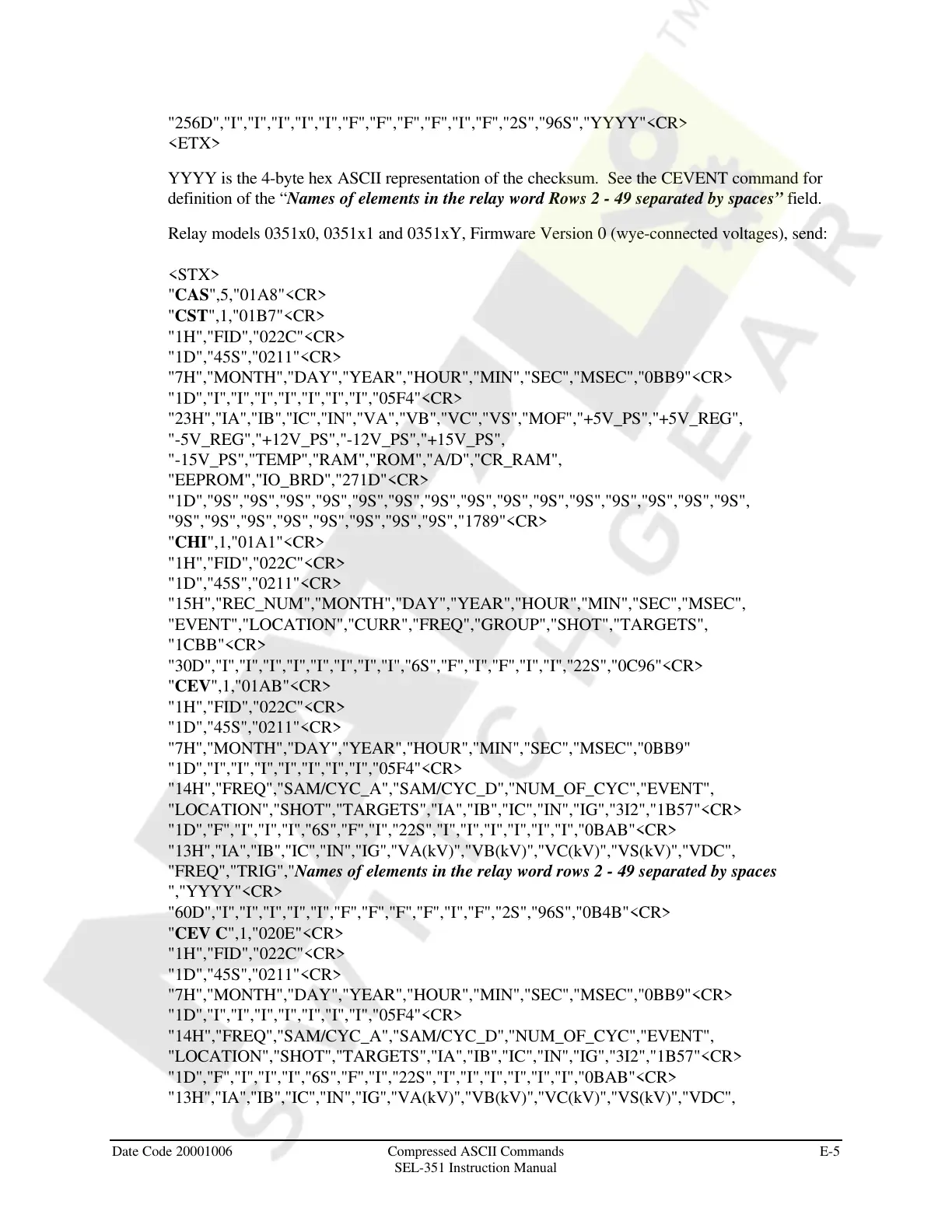

Date Code 20001006 Compressed ASCII Commands E-5
SEL-351 Instruction Manual
"256D","I","I","I","I","I","F","F","F","F","I","F","2S","96S","YYYY"<CR>
<ETX>
YYYY is the 4-byte hex ASCII representation of the checksum. See the CEVENT command for
definition of the “Names of elements in the relay word Rows 2 - 49 separated by spaces” field.
Relay models 0351x0, 0351x1 and 0351xY, Firmware Version 0 (wye-connected voltages), send:
<STX>
"CAS",5,"01A8"<CR>
"CST",1,"01B7"<CR>
"1H","FID","022C"<CR>
"1D","45S","0211"<CR>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0BB9"<CR>
"1D","I","I","I","I","I","I","I","05F4"<CR>
"23H","IA","IB","IC","IN","VA","VB","VC","VS","MOF","+5V_PS","+5V_REG",
"-5V_REG","+12V_PS","-12V_PS","+15V_PS",
"-15V_PS","TEMP","RAM","ROM","A/D","CR_RAM",
"EEPROM","IO_BRD","271D"<CR>
"1D","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S","9S",
"9S","9S","9S","9S","9S","9S","9S","9S","1789"<CR>
"CHI",1,"01A1"<CR>
"1H","FID","022C"<CR>
"1D","45S","0211"<CR>
"15H","REC_NUM","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC",
"EVENT","LOCATION","CURR","FREQ","GROUP","SHOT","TARGETS",
"1CBB"<CR>
"30D","I","I","I","I","I","I","I","I","6S","F","I","F","I","I","22S","0C96"<CR>
"CEV",1,"01AB"<CR>
"1H","FID","022C"<CR>
"1D","45S","0211"<CR>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0BB9"
"1D","I","I","I","I","I","I","I","05F4"<CR>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","1B57"<CR>
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","0BAB"<CR>
"13H","IA","IB","IC","IN","IG","VA(kV)","VB(kV)","VC(kV)","VS(kV)","VDC",
"FREQ","TRIG","Names of elements in the relay word rows 2 - 49 separated by spaces
","YYYY"<CR>
"60D","I","I","I","I","I","F","F","F","F","I","F","2S","96S","0B4B"<CR>
"CEV C",1,"020E"<CR>
"1H","FID","022C"<CR>
"1D","45S","0211"<CR>
"7H","MONTH","DAY","YEAR","HOUR","MIN","SEC","MSEC","0BB9"<CR>
"1D","I","I","I","I","I","I","I","05F4"<CR>
"14H","FREQ","SAM/CYC_A","SAM/CYC_D","NUM_OF_CYC","EVENT",
"LOCATION","SHOT","TARGETS","IA","IB","IC","IN","IG","3I2","1B57"<CR>
"1D","F","I","I","I","6S","F","I","22S","I","I","I","I","I","I","0BAB"<CR>
"13H","IA","IB","IC","IN","IG","VA(kV)","VB(kV)","VC(kV)","VS(kV)","VDC",
