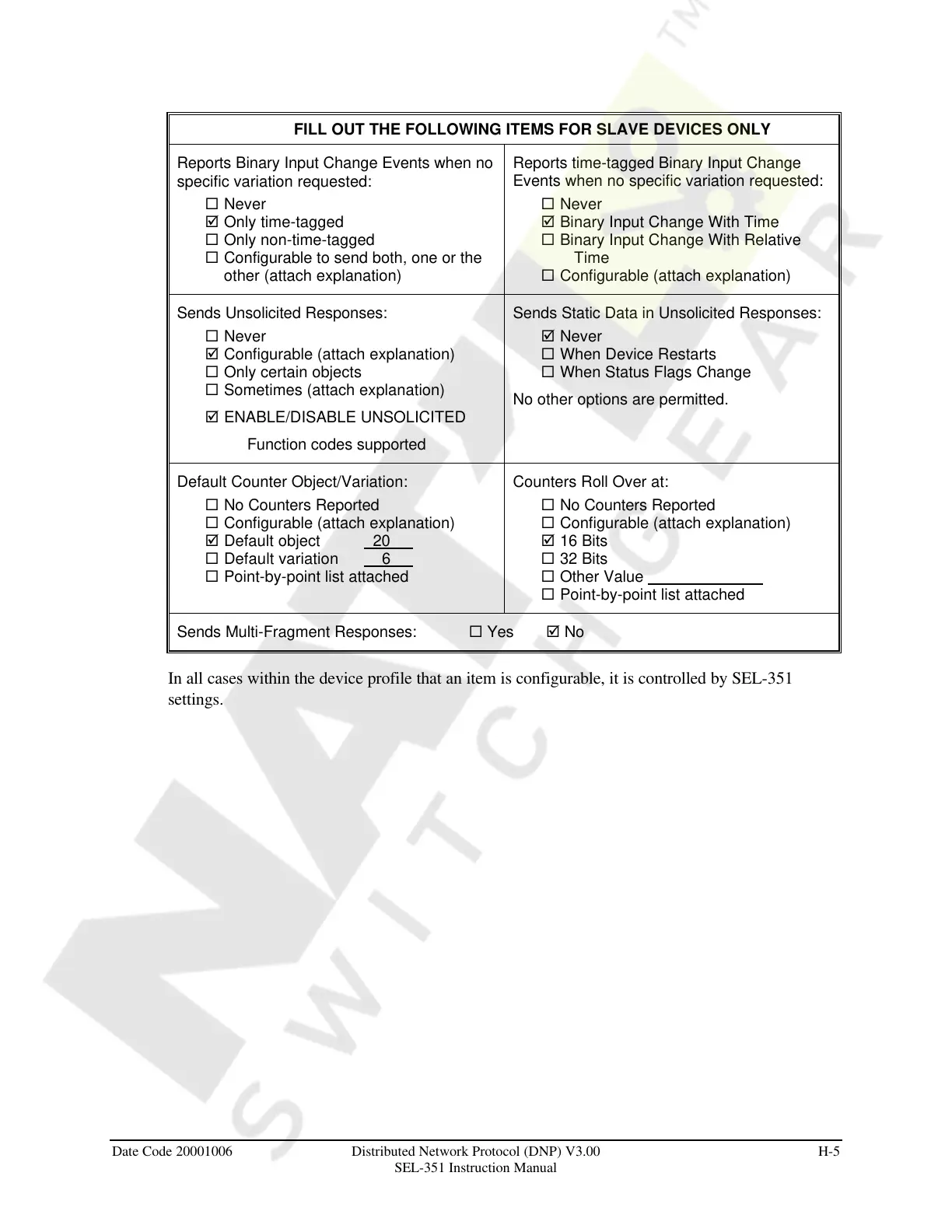

FILL OUT THE FOLLOWING ITEMS FOR SLAVE DEVICES ONLY
Reports Binary Input Change Events when no
specific variation requested:
¨ Never
þ Only time-tagged
¨ Only non-time-tagged
¨ Configurable to send both, one or the
other (attach explanation)
Reports time-tagged Binary Input Change
Events when no specific variation requested:
¨ Never
þ Binary Input Change With Time
¨ Binary Input Change With Relative
Time
¨ Configurable (attach explanation)
Sends Unsolicited Responses:
¨ Never
þ Configurable (attach explanation)
¨ Only certain objects
¨ Sometimes (attach explanation)
þ ENABLE/DISABLE UNSOLICITED
Function codes supported
Sends Static Data in Unsolicited Responses:
þ Never
¨ When Device Restarts
¨ When Status Flags Change
No other options are permitted.
Default Counter Object/Variation:
¨ No Counters Reported
¨ Configurable (attach explanation)
þ Default object 20
¨ Default variation 6
¨ Point-by-point list attached
Counters Roll Over at:
¨ No Counters Reported
¨ Configurable (attach explanation)
þ 16 Bits
¨ 32 Bits
¨ Other Value
¨ Point-by-point list attached
Sends Multi-Fragment Responses: ¨ Yes þ No
In all cases within the device profile that an item is configurable, it is controlled by SEL-351
settings.
