Date Code 20001006 Distributed Network Protocol (DNP) V3.00 H-15
SEL-351 Instruction Manual

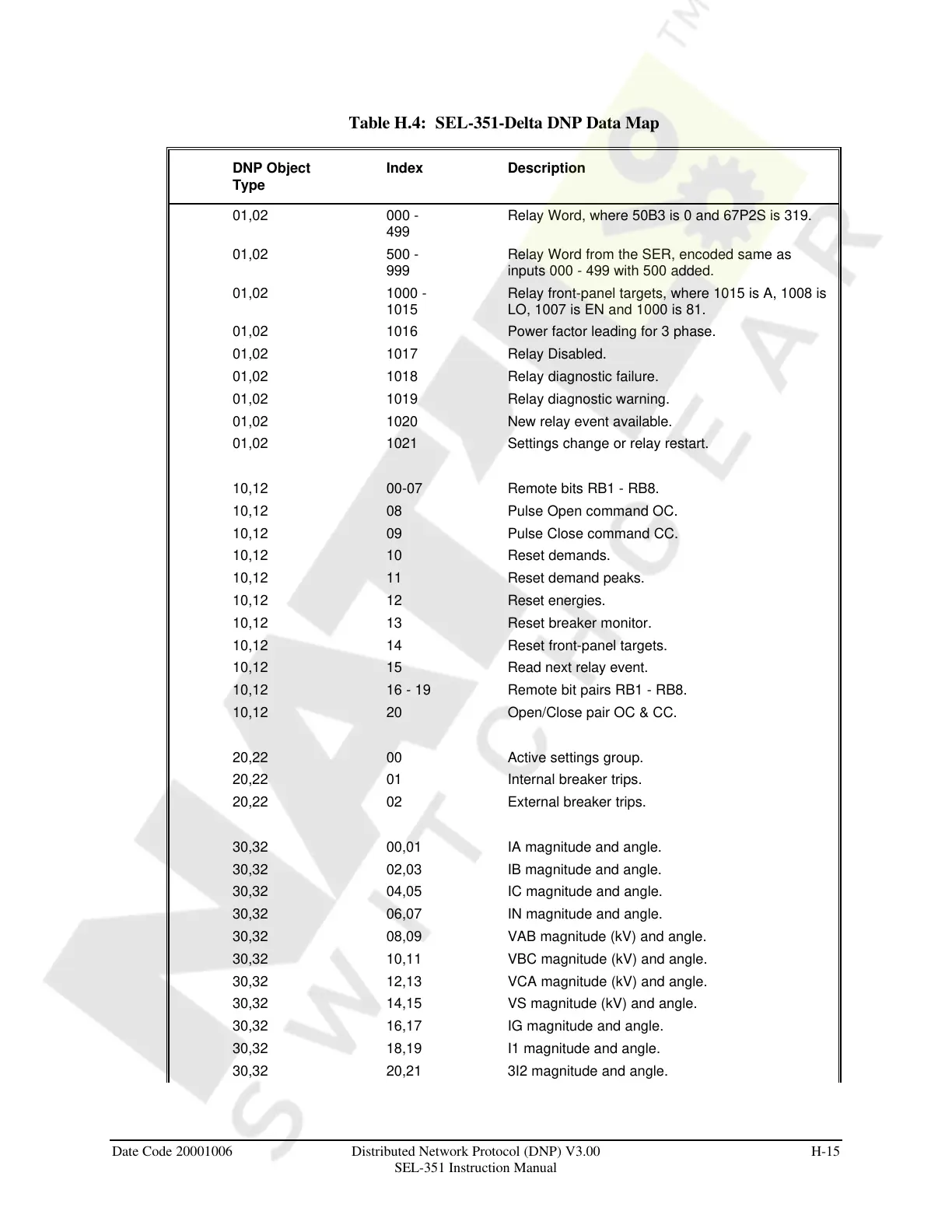

Table H.4: SEL-351-Delta DNP Data Map
DNP Object
Type
Index Description
01,02 000 -
499
Relay Word, where 50B3 is 0 and 67P2S is 319.
01,02 500 -
999
Relay Word from the SER, encoded same as
inputs 000 - 499 with 500 added.
01,02 1000 -
1015
Relay front-panel targets, where 1015 is A, 1008 is
LO, 1007 is EN and 1000 is 81.
01,02 1016 Power factor leading for 3 phase.
01,02 1017 Relay Disabled.
01,02 1018 Relay diagnostic failure.
01,02 1019 Relay diagnostic warning.
01,02 1020 New relay event available.
01,02 1021 Settings change or relay restart.
10,12 00-07 Remote bits RB1 - RB8.
10,12 08 Pulse Open command OC.
10,12 09 Pulse Close command CC.
10,12 10 Reset demands.
10,12 11 Reset demand peaks.
10,12 12 Reset energies.
10,12 13 Reset breaker monitor.
10,12 14 Reset front-panel targets.
10,12 15 Read next relay event.
10,12 16 - 19 Remote bit pairs RB1 - RB8.
10,12 20 Open/Close pair OC & CC.
20,22 00 Active settings group.
20,22 01 Internal breaker trips.
20,22 02 External breaker trips.
30,32 00,01 IA magnitude and angle.
30,32 02,03 IB magnitude and angle.
30,32 04,05 IC magnitude and angle.
30,32 06,07 IN magnitude and angle.
30,32 08,09 VAB magnitude (kV) and angle.
30,32 10,11 VBC magnitude (kV) and angle.
30,32 12,13 VCA magnitude (kV) and angle.
30,32 14,15 VS magnitude (kV) and angle.
30,32 16,17 IG magnitude and angle.
30,32 18,19 I1 magnitude and angle.
30,32 20,21 3I2 magnitude and angle.
