Date Code 20001006 Distributed Network Protocol (DNP) V3.00 H-17
SEL-351 Instruction Manual

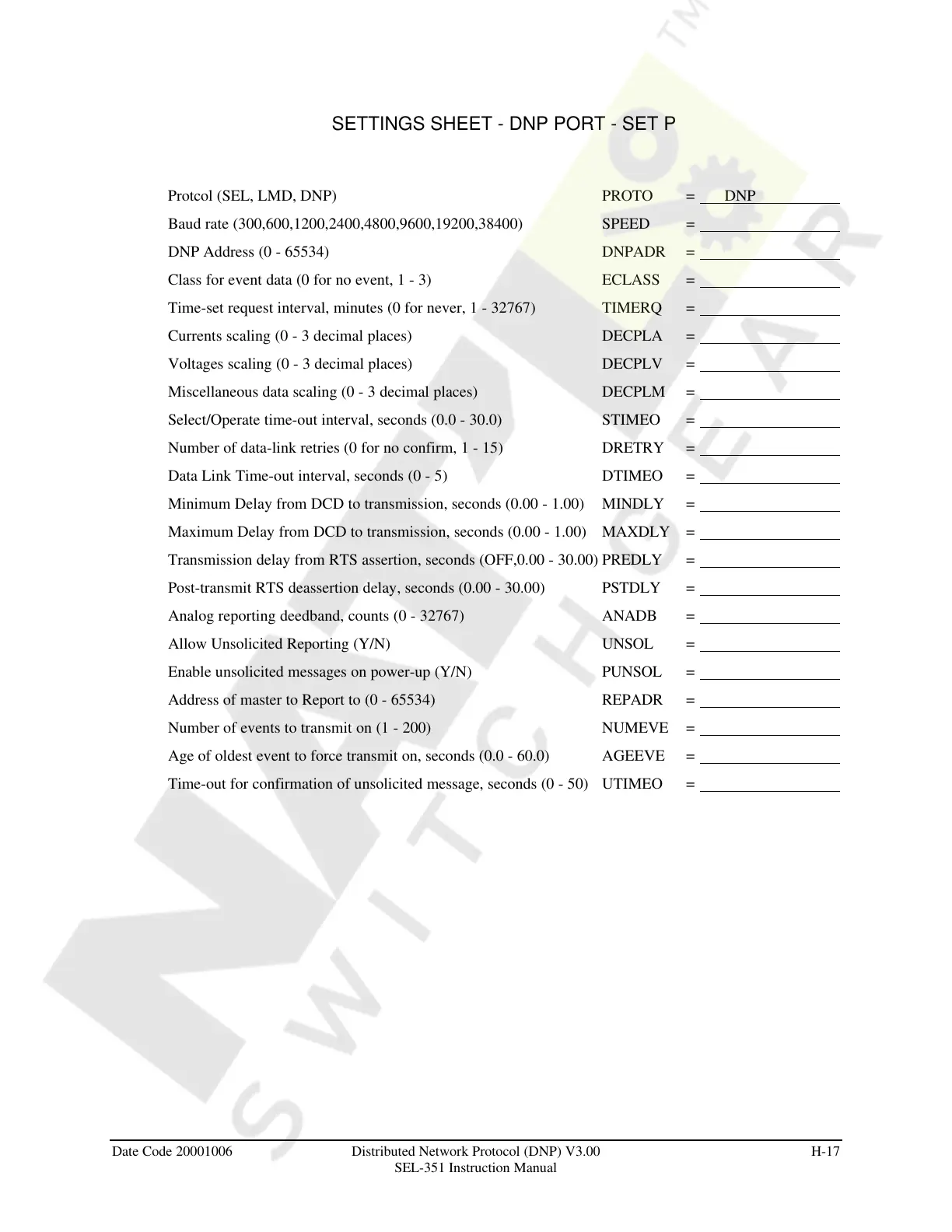

SETTINGS SHEET - DNP PORT - SET P
Protcol (SEL, LMD, DNP) PROTO = DNP
Baud rate (300,600,1200,2400,4800,9600,19200,38400) SPEED =
DNP Address (0 - 65534) DNPADR =
Class for event data (0 for no event, 1 - 3) ECLASS =
Time-set request interval, minutes (0 for never, 1 - 32767) TIMERQ =
Currents scaling (0 - 3 decimal places) DECPLA =
Voltages scaling (0 - 3 decimal places) DECPLV =
Miscellaneous data scaling (0 - 3 decimal places) DECPLM =
Select/Operate time-out interval, seconds (0.0 - 30.0) STIMEO =
Number of data-link retries (0 for no confirm, 1 - 15) DRETRY =
Data Link Time-out interval, seconds (0 - 5) DTIMEO =
Minimum Delay from DCD to transmission, seconds (0.00 - 1.00) MINDLY =
Maximum Delay from DCD to transmission, seconds (0.00 - 1.00) MAXDLY =
Transmission delay from RTS assertion, seconds (OFF,0.00 - 30.00) PREDLY =
Post-transmit RTS deassertion delay, seconds (0.00 - 30.00) PSTDLY =
Analog reporting deedband, counts (0 - 32767) ANADB =
Allow Unsolicited Reporting (Y/N) UNSOL =
Enable unsolicited messages on power-up (Y/N) PUNSOL =
Address of master to Report to (0 - 65534) REPADR =
Number of events to transmit on (1 - 200) NUMEVE =
Age of oldest event to force transmit on, seconds (0.0 - 60.0) AGEEVE =
Time-out for confirmation of unsolicited message, seconds (0 - 50) UTIMEO =
