Section 07 ELECTRICAL SYSTEM
Sub-Section 05 (INSTRUMENTS AND ACCESSORIES)
07-05-3

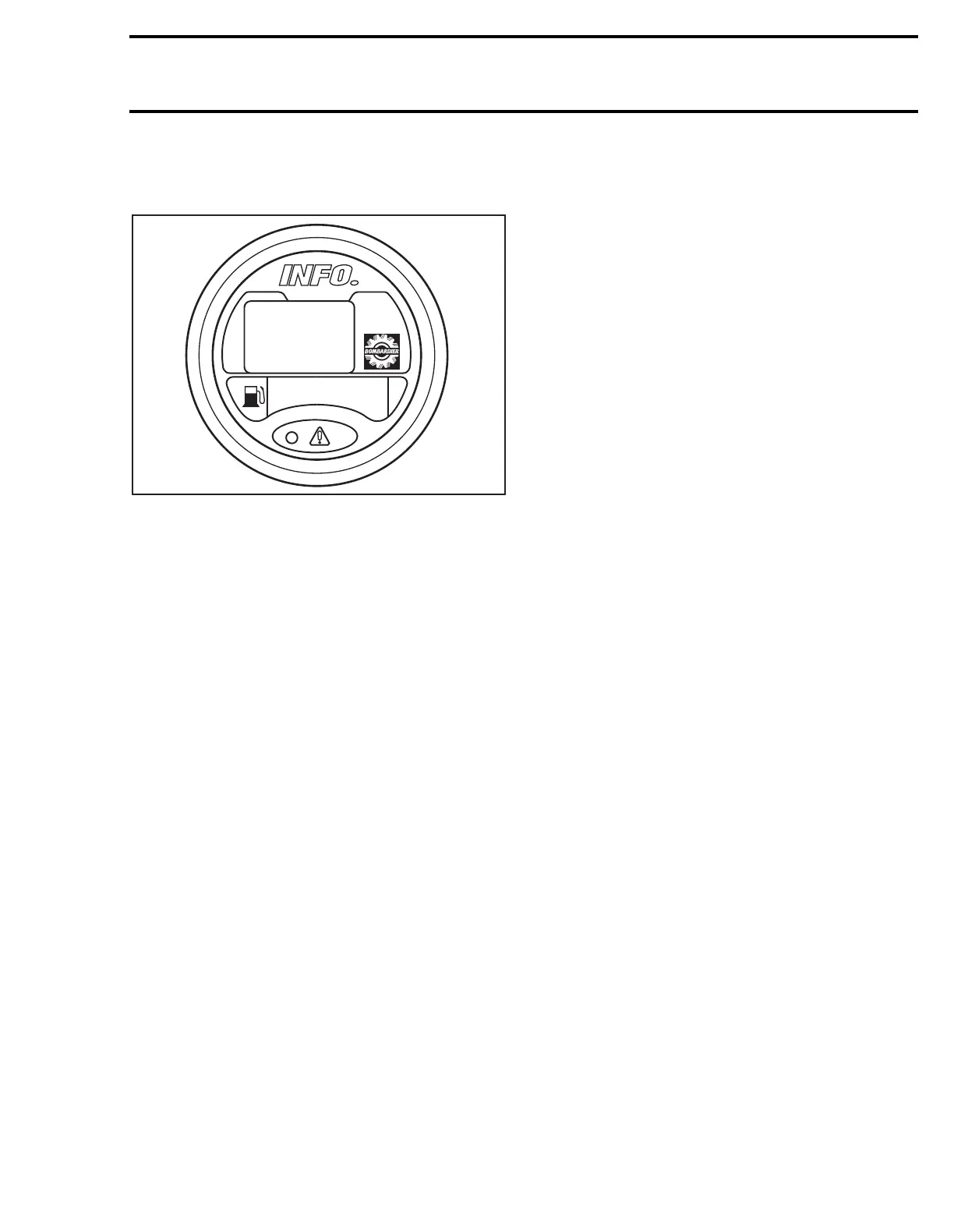

Info Center
GSI, GSX and GTX Models
This is a LCD multifunction gauge. It features the
following functions:
– fuel level
– low fuel level
– low oil level
– low voltage
– overheating
– hourmeter
–clock
– maintenance information
– chronometer
–tachometer
– speedometer (GSX and GTX models)
– peak speed (GSX and GTX models)
– average speed (GSX and GTX models)
– trip meter (GSX and GTX models)
– VTS (GSI and GSX models)
– compass (GTX model)
– exterior temperature (GTX model)
– lake temperature (GTX model)
The Info Center also features a red warning LED
which turns on if a particular condition such as low
fuel, low oil, low voltage or overheating occur.
As a self test, all LCD segments and the LED will
turn on for 3 seconds each time the watercraft is
started.
Operation
SCROLLING FUNCTIONS
Press the MODE button until the desired function
is displayed on the Info Center.
RESET
To reset a function such as the chronometer, peak
speed, trip meter, etc., select the desired function
using the MODE button then press and hold the
SET button for 2 seconds.
DISPLAY PRIORITIES
The clock (and compass for the GTX) is the basic
mode of the Info Center.
The chronometer, tachometer and speedometer
(if applicable) are the only other functions that
may be chosen to replace the clock mode.
If an another function is chosen, the clock mode
will be displayed again after 4 seconds.
In the event of a warning message such as low
fuel is displayed, the message will blink and over-
ride any other functions.
If more than one warning message is displayed,
the messages will blink and reappear every 4 sec-
onds.
LANGUAGE OPTION
While in the clock mode, press and hold the SET
button for 2 seconds. Language option will be dis-
played.
Press the MODE button to scroll language (En-
glish, French and Spanish).
Press the SET button to confirm the selected lan-
guage and return to the clock mode.
ENGLISH/METRIC OPTION
Press and hold both MODE and SET buttons for 2
seconds. The system will be automatically
changed.
CHRONOMETER
Select the chronometer mode and press the SET
button to start or stop the chronometer.
Press the SET button for 2 seconds to reset the
chronometer.
CLOCK SETTING
While in the clock mode, press and hold both
MODE and SET buttons for 2 seconds. The clock
will blink to confirm the setting mode.
Bombardier
F07H06A
