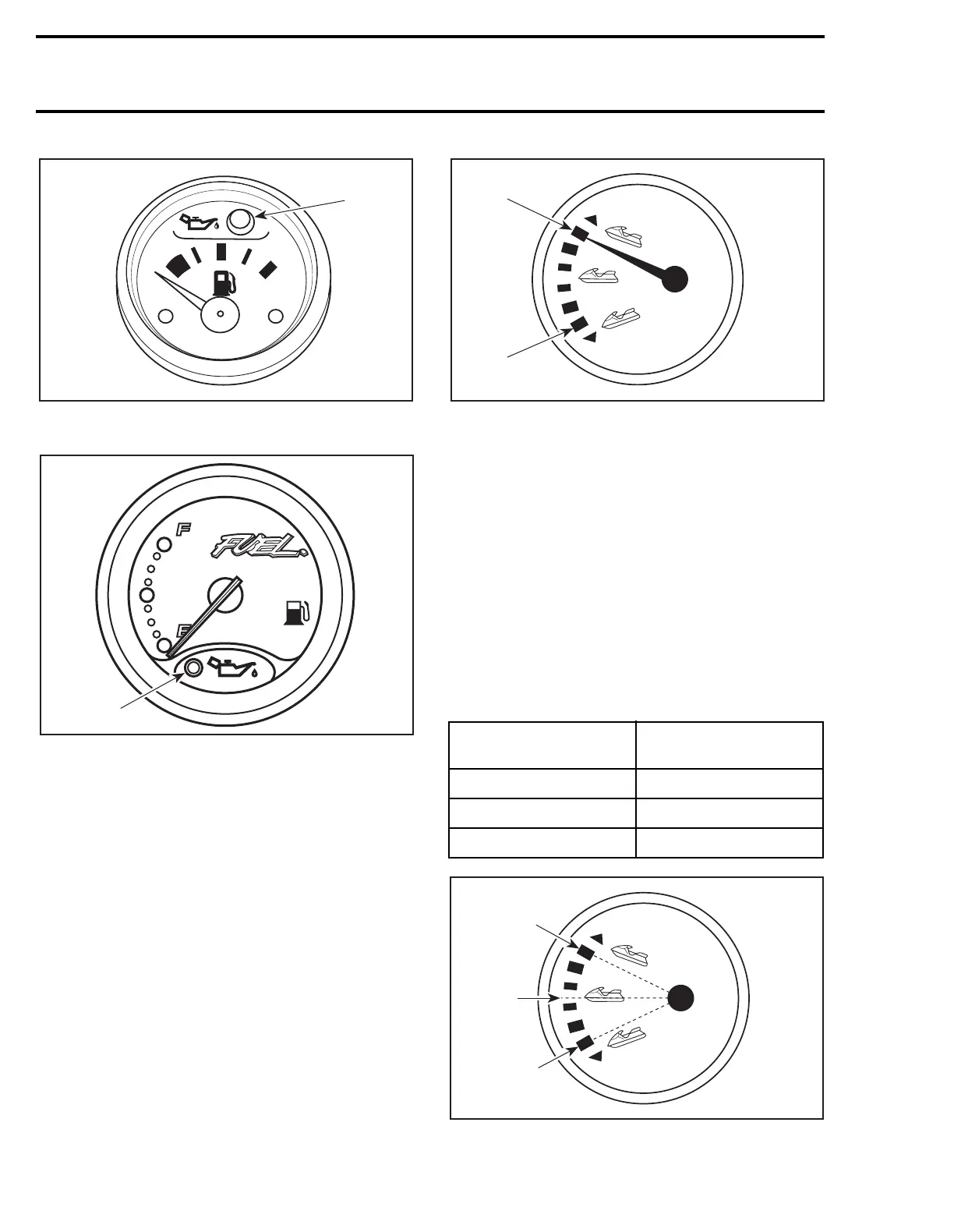

Section 07 ELECTRICAL SYSTEM
Sub-Section 05 (INSTRUMENTS AND ACCESSORIES)
07-05-6
SPX, GTS, HX AND XP MODELS
1. Low oil warning light
GS AND GTI MODELS
1. Low oil warning light
Variable Trim Gauge
SPX and XP Models
The trim gauge shows the riding angle of the wa-
tercraft.
TYPICAL
1. Bow up
2. Bow down
Accuracy of gauge can be checked with a potenti-
ometer.
– Disconnect 2-circuit connector housing of
BROWN/BLACK and BROWN/WHITE wires of
gauge.
– Connect potentiometer test probes to
BROWN/BLACK and BROWN/WHITE wires of
gauge.
– Adjust potentiometer to the resistance values
as per following chart to test accuracy of gauge.
NOTE:
Gauge must be activated to obtain a read-
ing.
If gauge is not within the specifications, replace it.
10
Bombardier
F01G07A
1
Bombardier
F06H0DA
1
RESISTANCE (
Ω)
GAUGE NEEDLE
POSITION
10 – 45°
95 0°
180 + 45°
VTS
Bombardier
F01H4RA
1
2
VTS
Bombardier
F01H0EA
+ 45°
0°
– 45°
