Sea-doo SP User Manual

Section 08 PROPULSION SYSTEM
Sub-Section 03 (DRIVE SYSTEM)

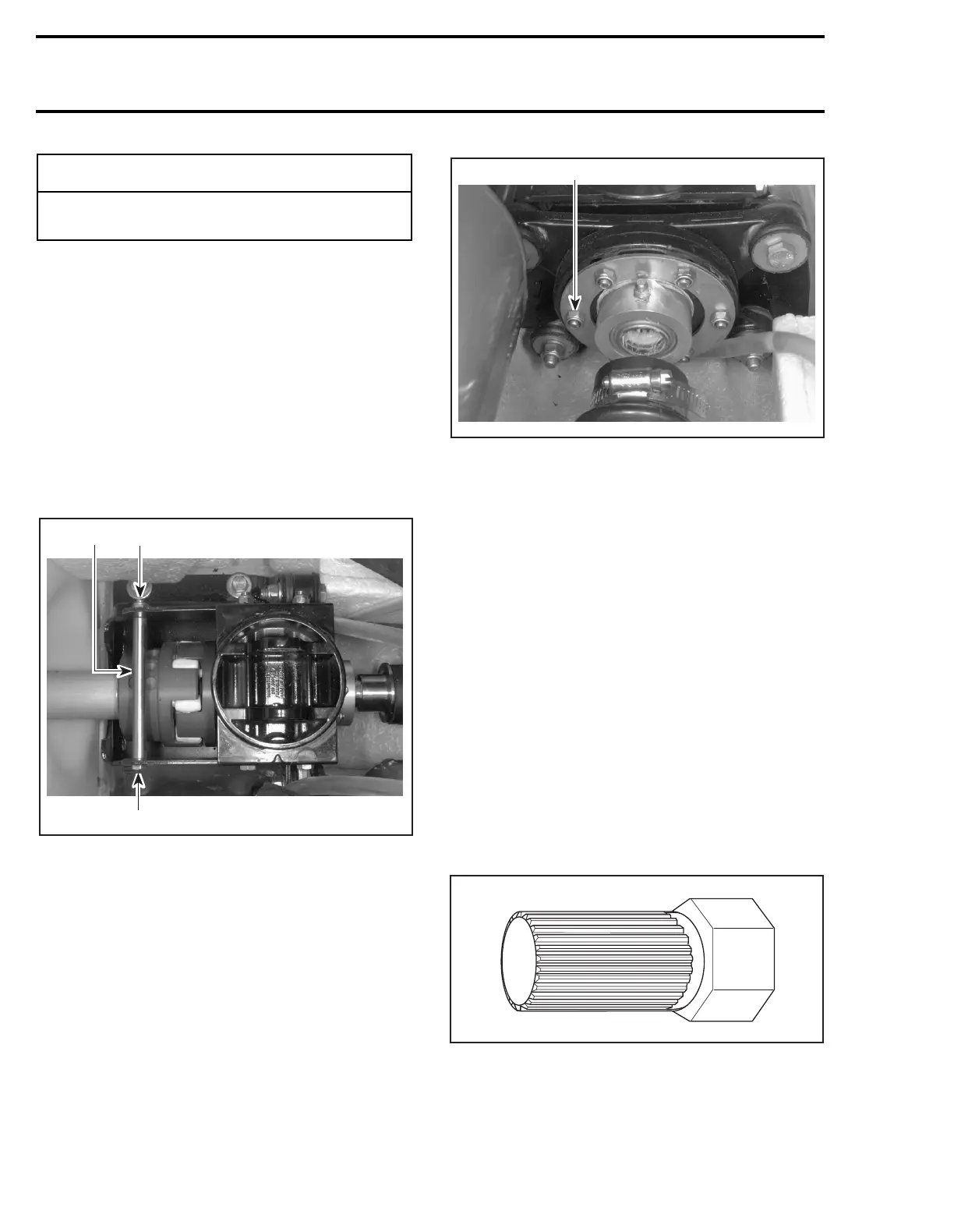

08-03-6
HX and XP Models
4, Rear Drive Shaft
Remove rear drive shaft.
NOTE:
If the rear drive shaft is jammed, remove
the seal carrier
no. 12
and front drive shaft
no. 7
if necessary.
7, Front Drive Shaft
Remove shock absorber from lower support. Re-
fer to SUSPENSION 10-02 for proper procedure.
Remove bolt, lock nut and sleeve from support.
1. Bolt
2. Lock nut
3. Sleeve
Remove front drive shaft.
12, Seal Carrier
To remove the seal carrier from support, loosen
the 6 nuts
no. 19
.
1. Nut (6)
All Models
9, Boot
Loosen gear clamp
no. 8
holding boot
no. 9
, then
carefully pull boot and carbon ring
no. 10
from hull
insert.
10, Carbon Ring
Loosen gear clamp
no. 21
then pull carbon ring
from boot
no. 9
.
11, PTO Flywheel
To remove PTO flywheel, the magneto flywheel
must be locked. Refer to ENGINE 03-04 and fol-
low the procedure to lock the magneto flywheel.
NOTE:
Do not remove the magneto flywheel.
SP, GS, GSI, GTS and GTI Models
PTO flywheel is loosen using PTO flywheel re-
mover (P/N 295 000 001).
Insert special tool in PTO flywheel splines.
-
CAUTION
Be careful not to damage hull rear section or
engine rubber mounts.
F05I04A
23
1
F05I05A
1
F01J0TA
