Section 08 PROPULSION SYSTEM
Sub-Section 03 (DRIVE SYSTEM)
08-03-13
All Models Except the XP and HX

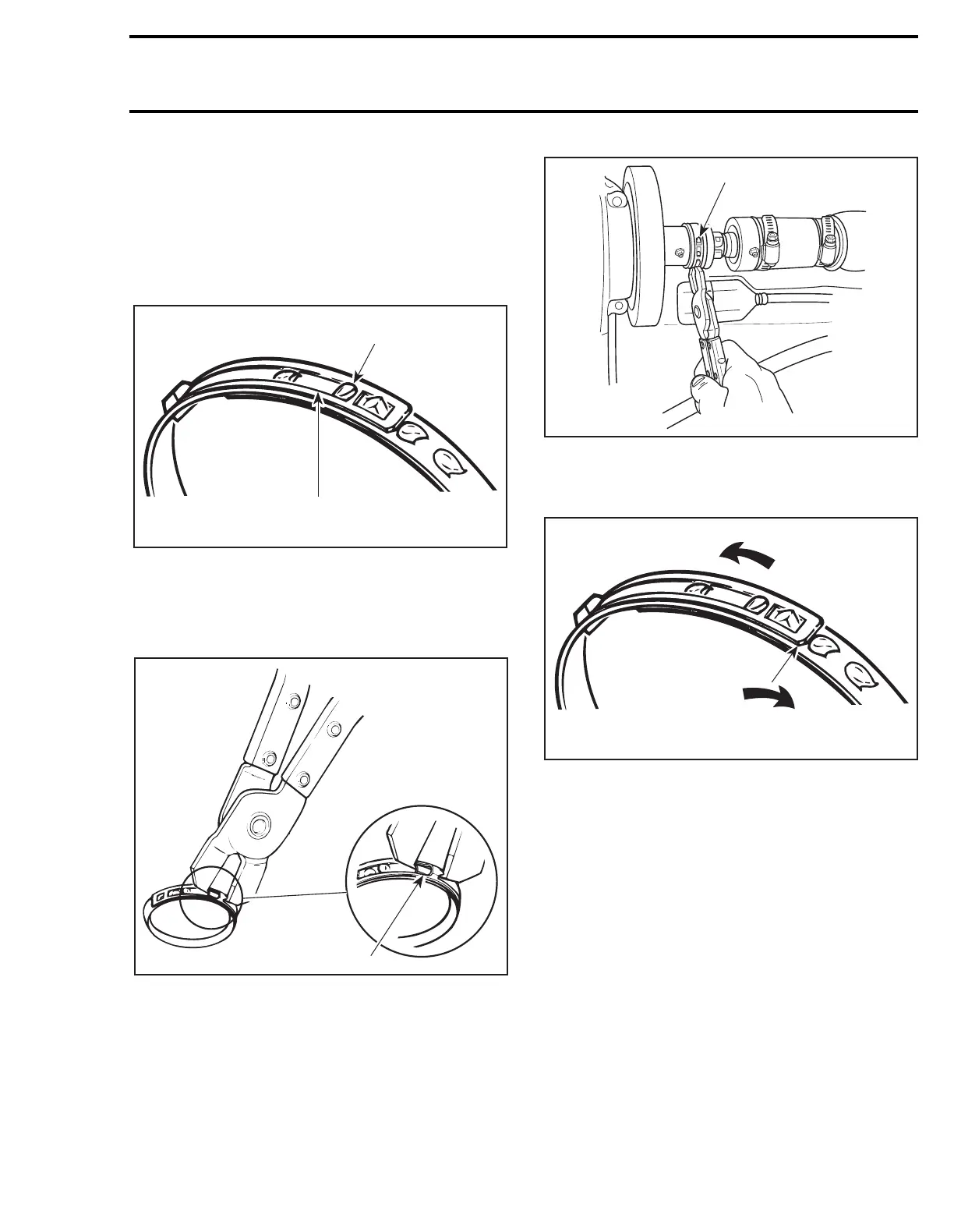

1, Large Clamp
Secure large clamp
no. 1
as follows:
– Use pliers (P/N 295 000 069) as for removal.
– Manually engage holding hook in large window.
This is a pre-clamping position only.
PRE-CLAMPING POSITION
1. Holding hook
2. Large window
– Insert pointed tips of pliers first in closing
hooks.
TYPICAL
1. Closing hooks
– Squeeze pliers. When both large and small win-
dows are directly over the 2 locking hooks,
press those windows down to engage hooks in
windows.
1. Press to engage hooks in windows
NOTE:
At installation, clamp tail should be in op-
posite direction of engine rotation.
1. Engine rotation (counterclockwise)
2. Tail in opposite direction
F01J23A
1
2
1
F01J2BA
F02J0IA
1
F01J23B
1
2
