Section 03 ENGINE
Sub-Section 03 (REMOVAL AND INSTALLATION)
03-03-5

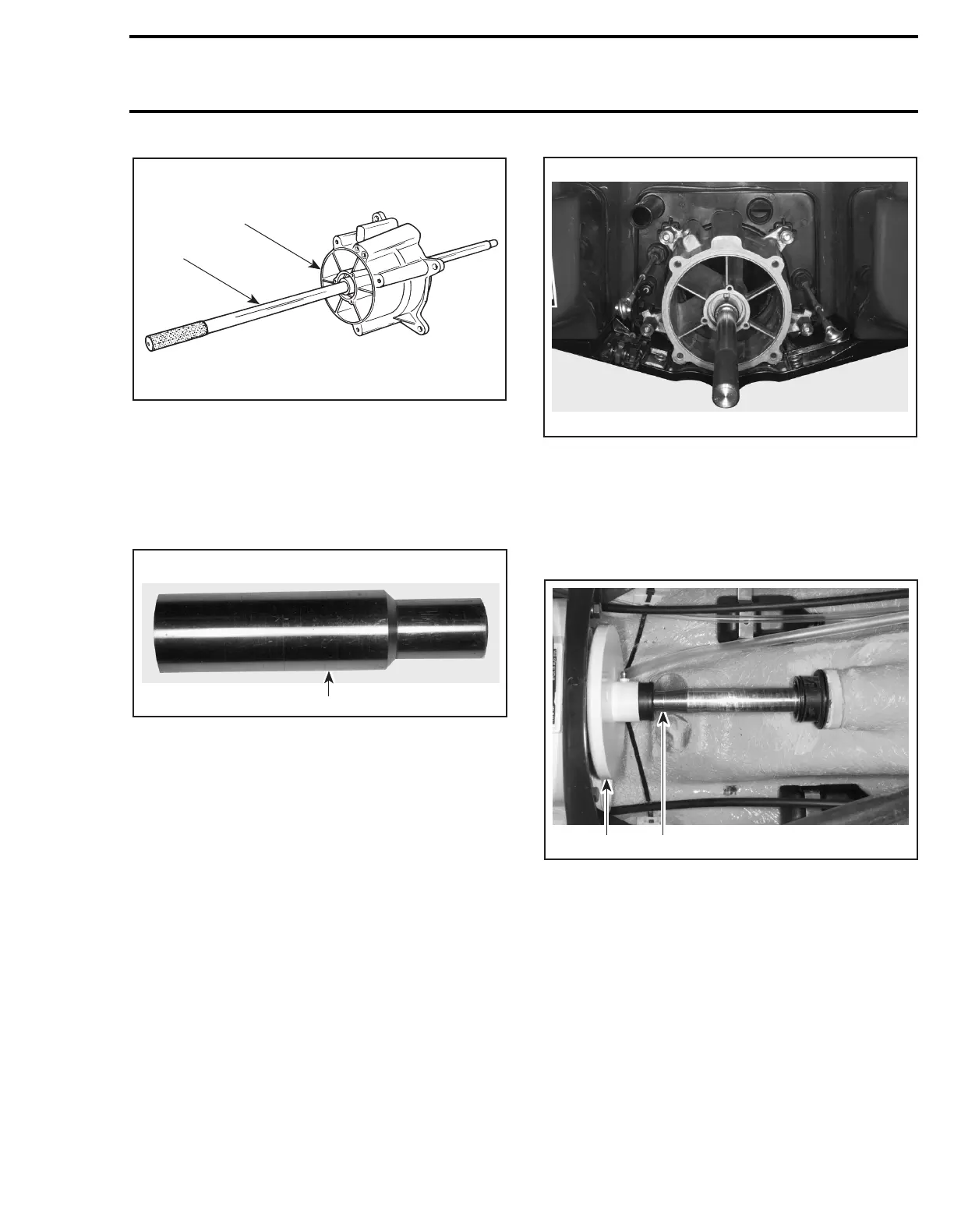

1. Housing (P/N 295 000 090)
2. Alignment shaft (P/N 295 000 093) or (P/N 295 000 141) for the
HX and XP models
HX and XP Models
On these models, the PTO flywheel adapter (P/N
295 000 157) must be used in conjunction with
the alignment shaft.
1. Adapter P/N 295 000 157
NOTE:
Ensure the mid bearing is removed to
check engine alignment.
All Models
To verify alignment proceed as follows:
– Install housing on hull with 4 nuts.
– Carefully slide shaft through housing.
TYPICAL
– Insert shaft end into PTO flywheel.
NOTE:
Ensure the protective hose and carbon
ring is removed to check engine alignment.
If the
alignment is correct, the shaft will slide easily
without any deflection in PTO flywheel.
TYPICAL
1. Alignment shaft
2. PTO flywheel
If the alignment is incorrect loosen engine sup-
port screws to enable to align PTO flywheel with
shaft end.
NOTE:
Use shim(s) (P/N 270 000 024) or (P/N 270
000 025) as necessary between engine support
and rubber mounts to correct alignment.
F01L2RC
1
2
F00B05A
1
F00B06A
F07D05A
2 1
To Next Page
