Section 03 ENGINE
Sub-Section 05 (TOP END)
03-05-16

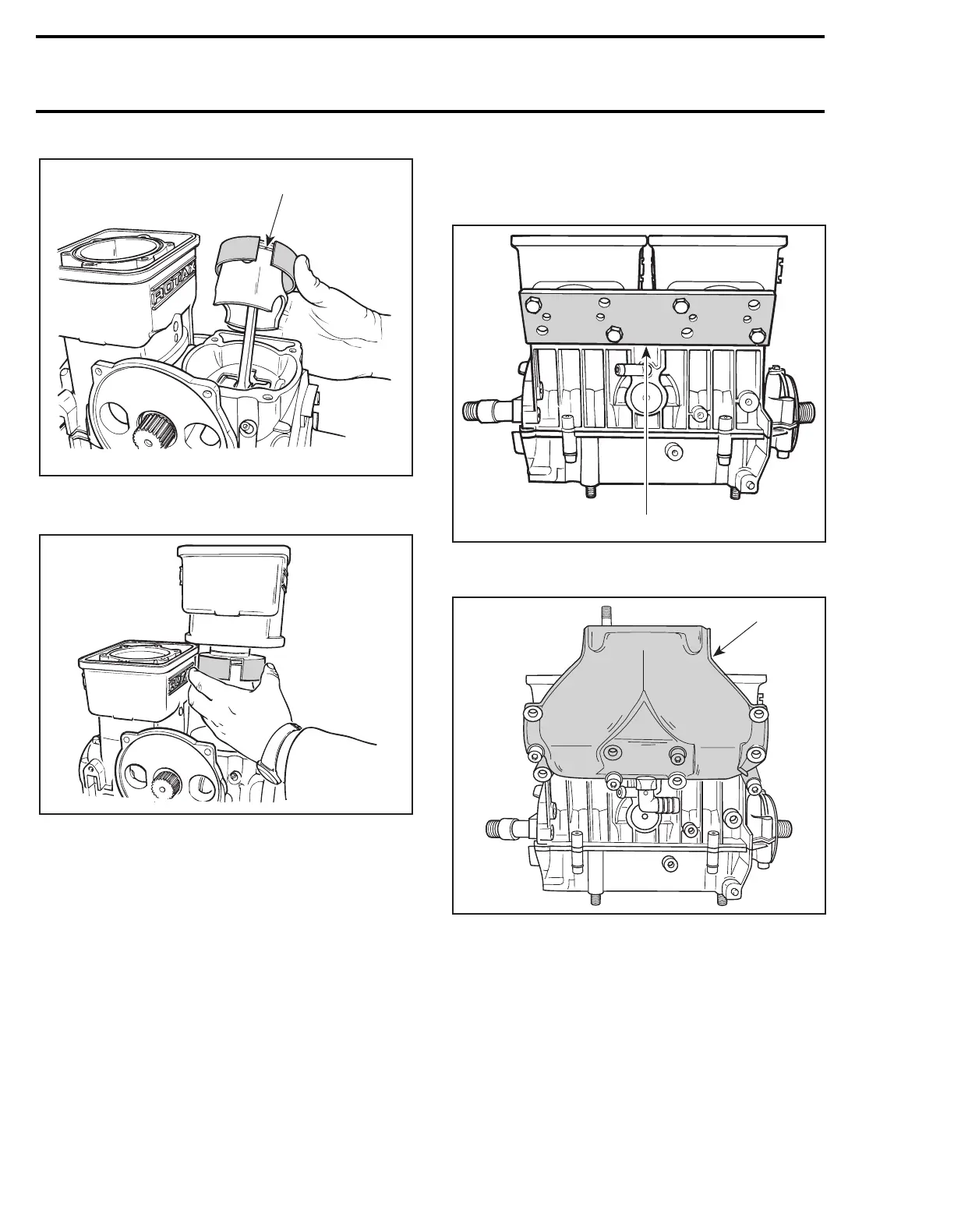

1. Ring end gap aligned with piston locating pin
Slide cylinder
no. 9
over piston
no. 3
.
When reassembling cylinders
no. 9
to crankcase,
it is important to have them properly aligned so
that exhaust flanges properly match up with ex-
haust manifold.
717 Engines
The aligning tool (P/N 290 876 902) or the exhaust
manifold can be used to align cylinders.
717 ENGINES
1. Exhaust flange aligning tool
717 ENGINES
1. Aligning cylinders using exhaust manifold
F01D0ZA
1
F01D10A
F01D44A
1
F01D45A
1
