Section 03 ENGINE
Sub-Section 05 (TOP END)
03-05-15

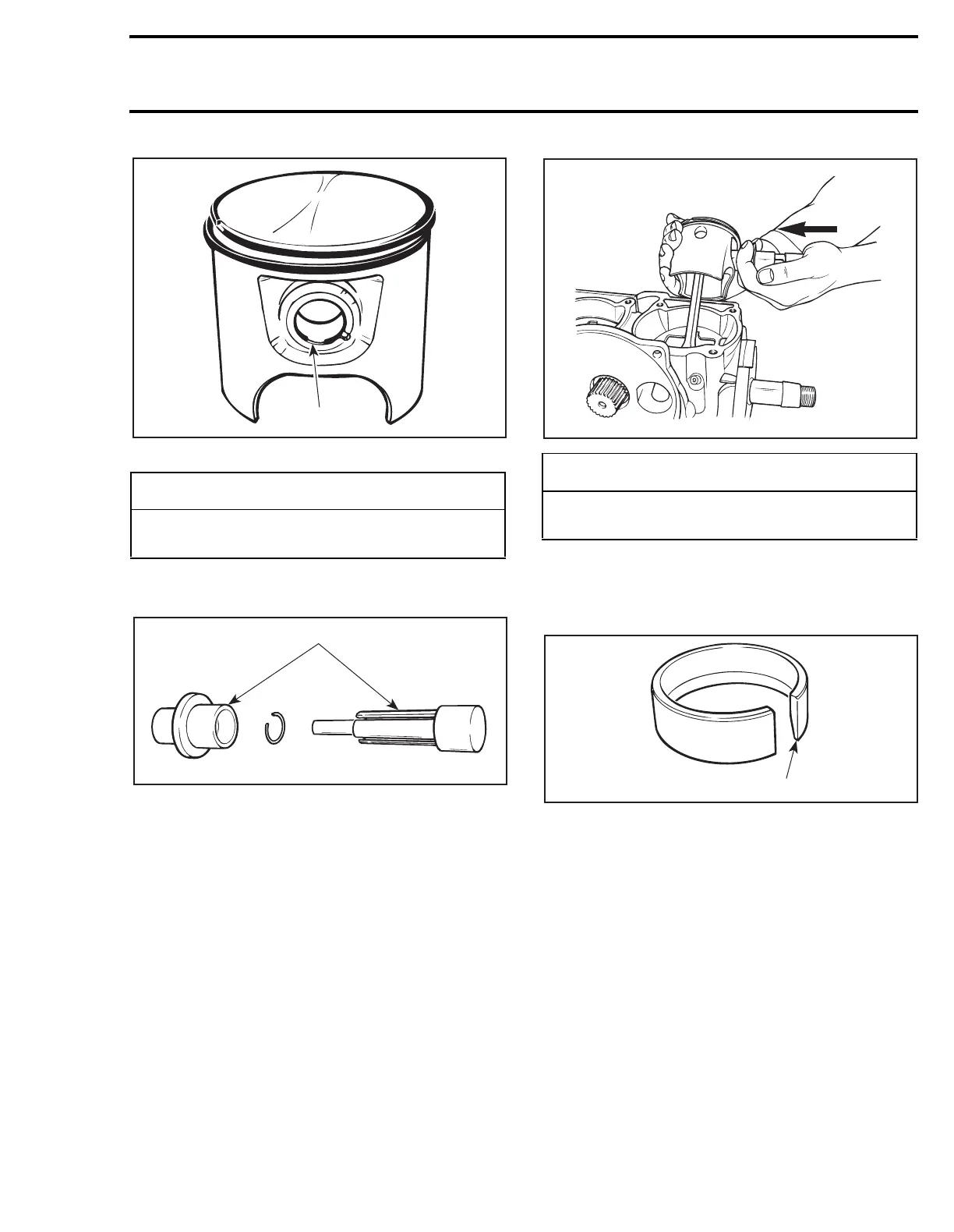

1. Circlip opening at 6 o’clock (at bottom)
To easily insert circlip
no. 5
into piston
no. 3
, use
circlip installer P/N 290 877 016.
1. Circlip installer
– Remove pusher from tool then insert circlip into
its bore.
– Reinstall pusher into tool and push until circlip
comes in end of tool.
– Position end of tool against piston pin opening.
– Firmly hold piston against tool and push tool
pusher to insert circlip into its groove.
9, Cylinder
To easily slide cylinder
no. 9
over piston
no. 3
, in-
stall on piston ring compressor P/N 290 876 979.
1. Slide this edge
NOTE:
Ring compressor will not fit on oversize
parts.
Make sure to align ring end gap with piston locat-
ing pin. Slide tool over rings.
â—†
WARNING
Always wear safety glasses when installing
piston circlips.
F01D0WA
1
F01B0KA
1
-
CAUTION
Circlips must not move freely after installa-
tion.
F01D0YA
A01B1TA
1
