HF Series Generators
Installation
IN-1052R0
7
9. For Single Phase Generators, connect the Power wires L1 and N (L2)
to the Fuse Holders of F3 and F4 (right side of the Cabinet), and the
Ground wire to the Ground stud in the Cabinet Frame (above these fuses
or close to the right side of the HV Transformer).
SINGLE PHASE GENERATORS ARE FACTORY DELIVERED
TO OPERATE ON PHASE AND NEUTRAL. IN CASE OF
CONNECTING THE EQUIPMENT TO A TWO-PHASE LINE,
REPLACE THE NEUTRAL CARTRIDGE WITH THE FUSE
SUPPLIED WITH THE GENERATOR.
10. For Three Phase Generators, connect the Power wires L1, L2 and L3
to the Fuse Holders of F3, F4 and F5 (right side of the Cabinet), and the
Ground wire to the Ground Studs in the Cabinet Frame (located above
these fuses or close to the right side of the HV Transformer).
Three Phase Generators do not need Neutral (N) wire connection from
the Line. If the unit is provided with the optional Fuse Module, connect
the Neutral (N) wire from the Line to the Neutral Stud below F3 Fuse
Holder.

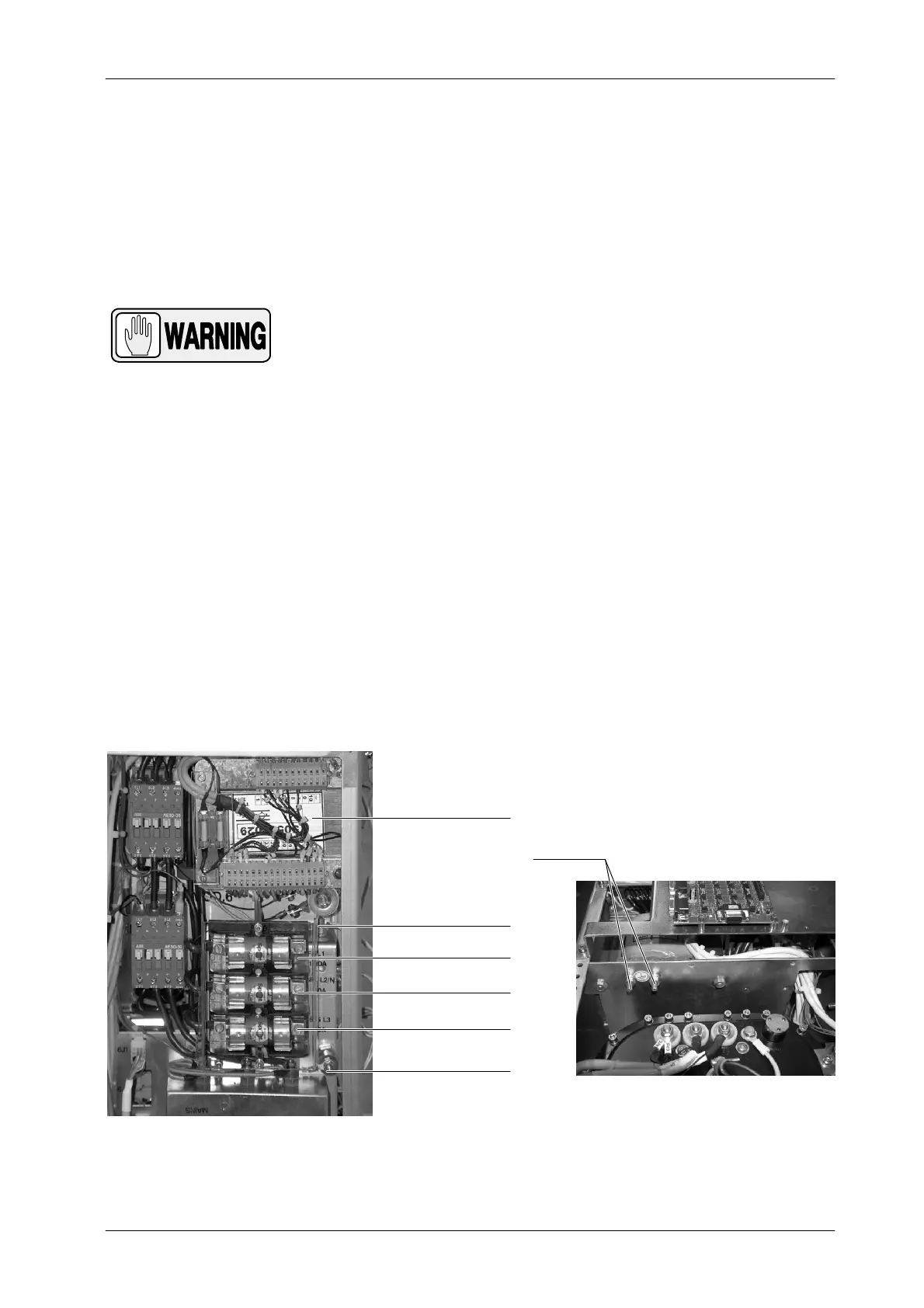

Illustration 2-3
Power Line connections
L1 Input Line
L2 Input Line
L3 Input Line
Neutral Stud
GND Stud
GND Studs
Input Transf. 6T2
(optional)
To Next Page
