HF Series Generators
Installation
IN-1052R0
9
12. Three-Phase Generators can be provided with an optional Fuse Module
mounted on Module-12, for switching ON/OFF the whole system when
the Generator is turned ON/OFF.
For this, connect the Neutral (N) wire from the Line to the Neutral Stud
below F3 Fuse Holder. Power the System through the Output Terminals
12TS4 (U, V, W, N, GND) close to Fuses F14, F15, F16.

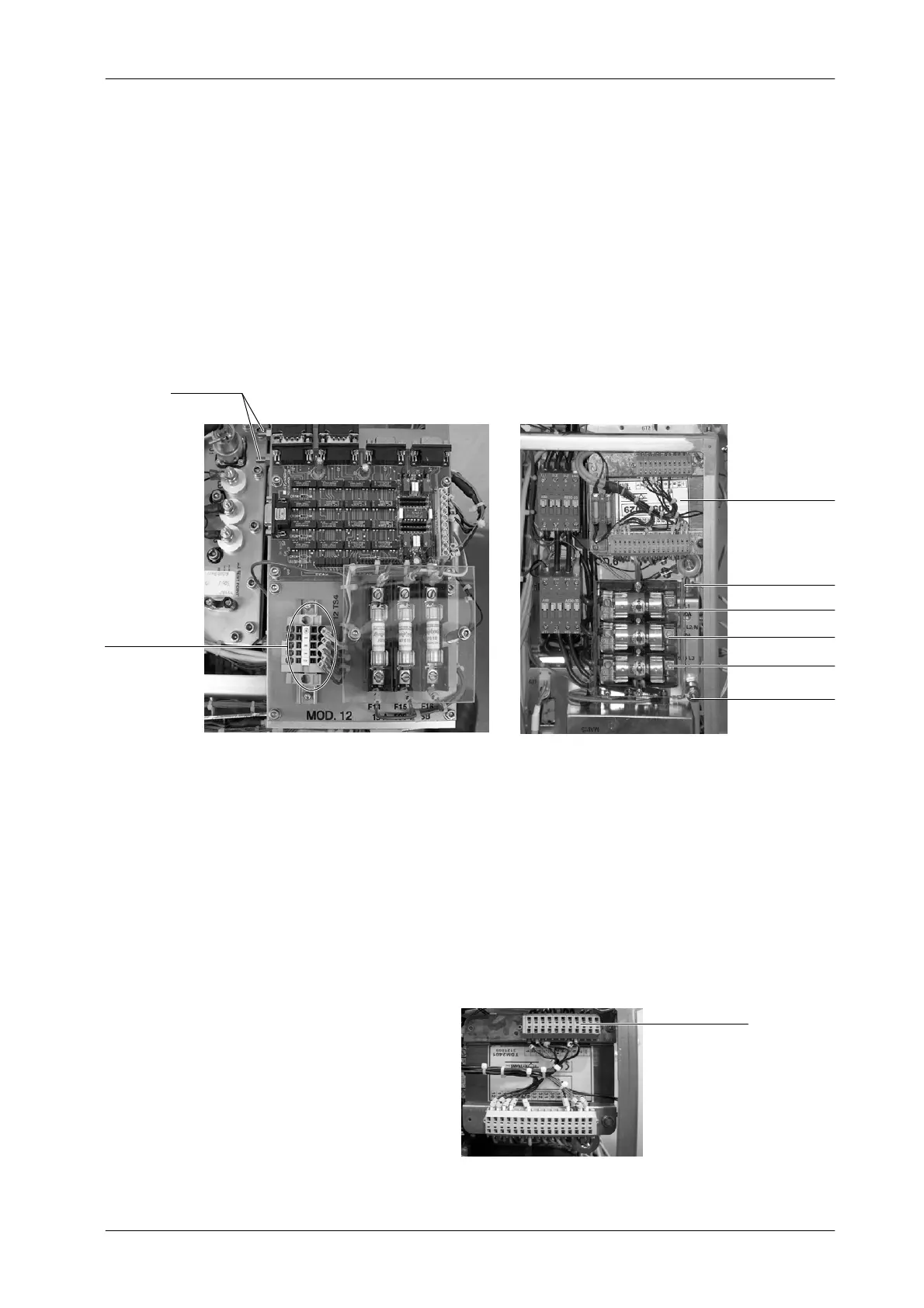

Illustration 2-5
Power Line connections in the optional Fuse Module
L1 Input Line
L2 Input Line
L3 Input Line
Neutral Stud
GND Stud
GND Studs
erminals 12TS4
Input Transf. 6T2
13. According to the nominal voltage of the line, verify or connect the
wire “
:” to the indicated terminal (TB) of Transformer 6T2. This wire is
factory connected to 230 VAC (for 1-Phase), 400 VAC (for 3-Phase) or
480 VAC / 530 VAC (for 80 kW 3-Phase Generators). (Refer to
Schematic 543020XX).
For 220 VAC power line, connect the wire “
:
” to the 230 VAC
terminals. For 380 VAC power line, connect the wire “
:
”tothe
400 VAC terminals.
6T2 Terminal Strip
6T2
Note .
