HF Series Generators
Installation
IN-1052R0
11
b. Level the Control Box using the Adjustable Leveling Legs. Keep
the Base at the maximum distance from the floor.
Seismic areas and other conditions require to secure firmly the
Control Box to the floor through the mounting holes at its base. In
this case, place the four spacers (provided) under the base and
secure them to the floor. Keep the four Leveling Legs at the same
height than the spacers.
Spacer for using in Seismic Areas
Adjustable Leveling Legs
Cable Access

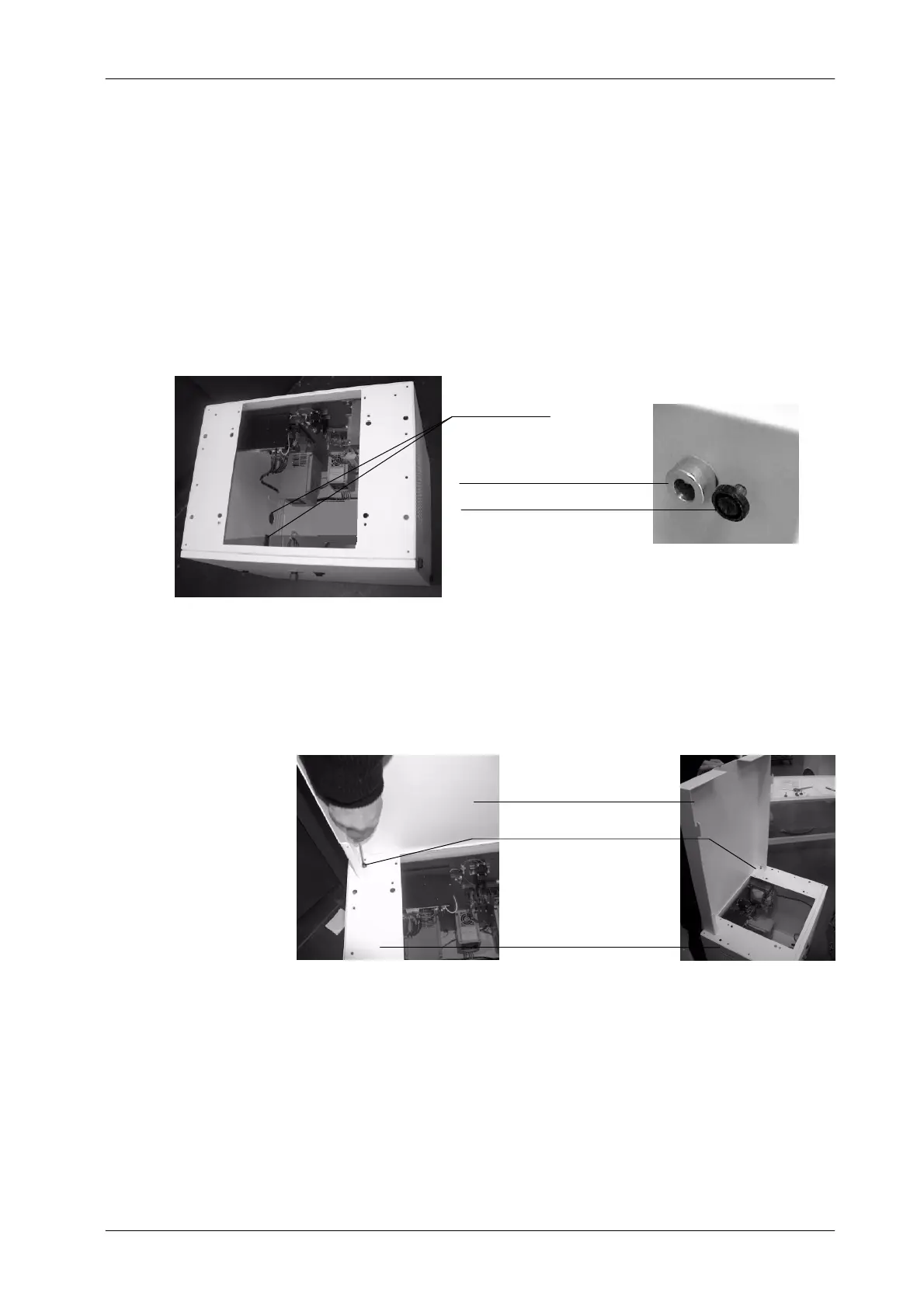

c. Assemble the supplied Back Cover for the Generator Cabinet to
the upper side of the Control Box using two M6x20 screws
(supplied).
Back Cover
Control Box
Fixing Screws
d. Remove the four Adjustable Leveling Legs from the base of the
Generator Cabinet.
