HF Series Generators
Installation
IN-1052R0
27

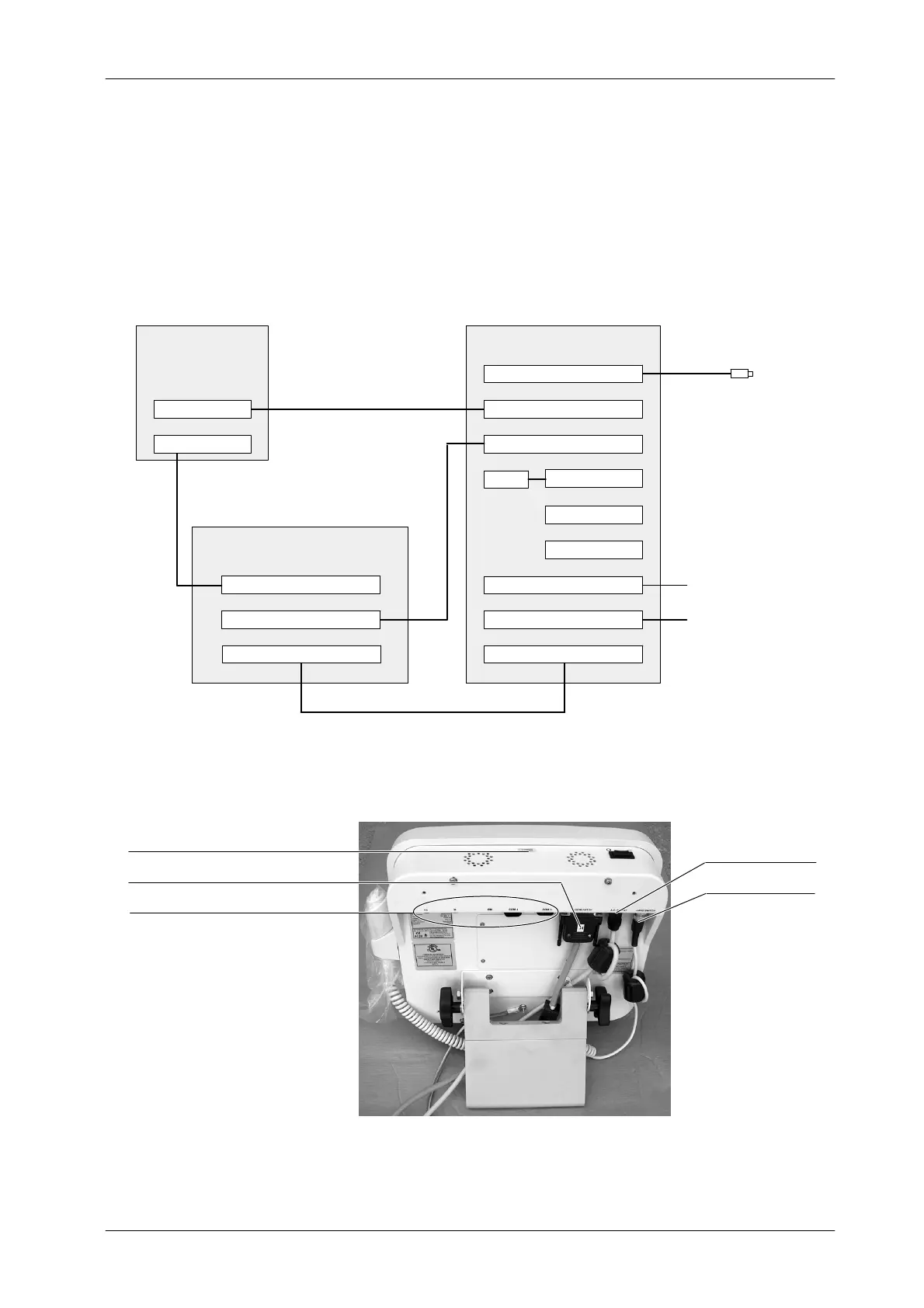

Illustration 3-4
Connection of the Generator Touch Screen (TPC) using a Positioner with Touch Screen
COM 1 (GENERATOR)
HANDSWITCH
AC SUPPLY
HANDSWITCH
COM 3
COM 4
KB (KEYBOARD)
M (MOUSE) OPTIONAL MOUSE
OPTIONAL KEYBOARD
COM 2
TOUCH SCREEN
J5
TS1
GENERATOR TPC
SERIAL CABLE (A7067--xx)
AC SUPPLY CABLE (A7059--xx)
(INTERNAL)
Handswitch
AC Supply Cable
Serial Interconnection Cable (COM1)
Label of Operating System Licence
Other Connections (keyboard, etc.)
J1 (GENERATOR)
POSITIONER CONTROL BOX
J2 (CONSOLE)
SERIAL CABLE (A3352--xx)
J6 (REMOTE ON) ON
REMOTE ON CABLE (A9611--xx)
To Next Page
