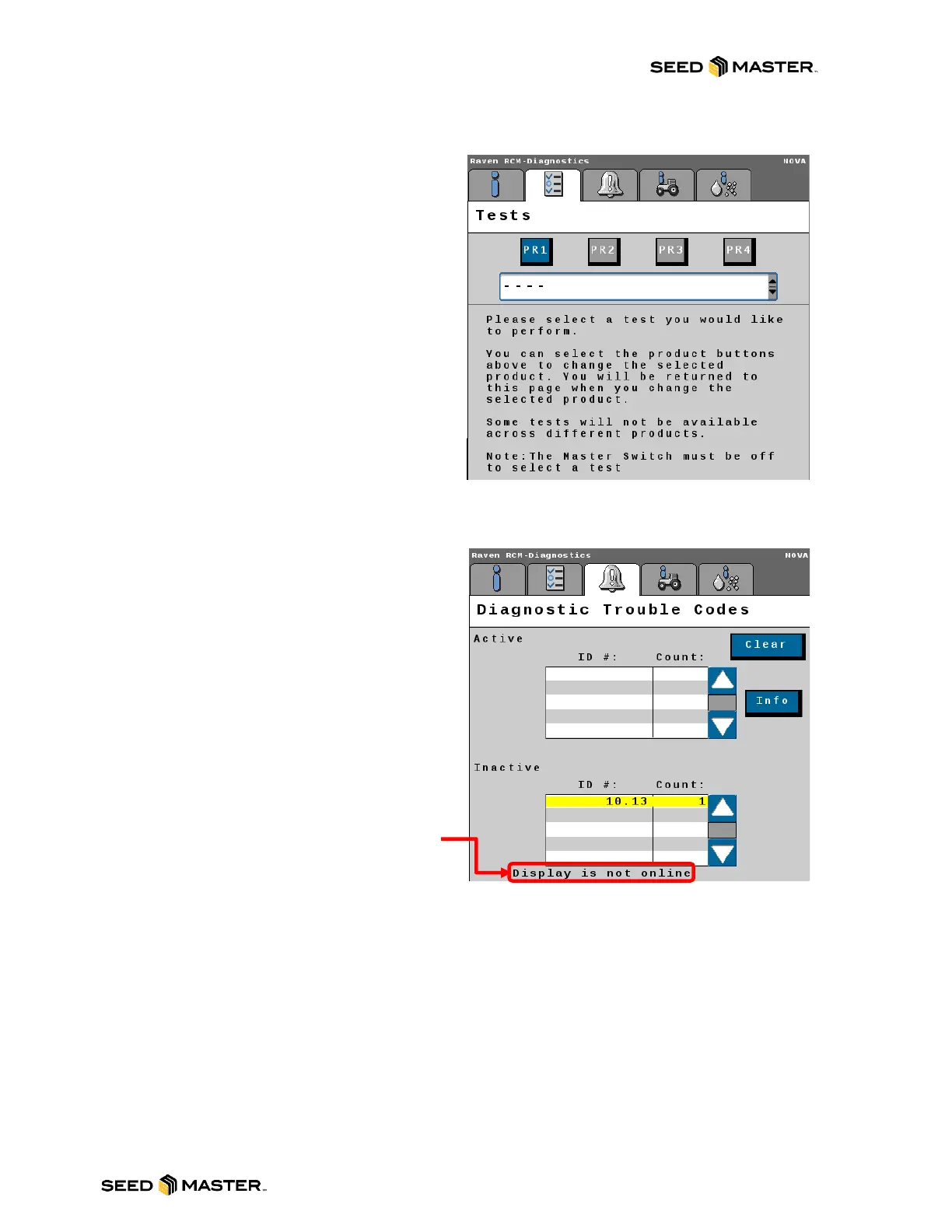

The RCM has built in system tests. The following
tests can be performed on each product:
- Spreader/Air Cart Check
- Control/Section Test
- Calibrate PWM Limits
- Bin/Tank Cleanout
- Demonstration Mode
- Diagnostic Loop Back Test
If performing any of the test above, please follow
the onscreen instructions.
NOTE: The Master Switch must be off to select
test.
This tab is used for troubleshooting active
system errors and displaying inactive errors.
- Current trouble codes appear in the
Active table. The DTC Identification
number and occurrence count is listed.
- Resolved trouble codes appear in the
Inactive table. The DTC Identification
number and occurrence count is listed.
Use the up and down arrows to scroll through the
list of trouble codes.
NOTE: A description of the highlighted code
is shown below each table.
If desired, press the Clear button to erase all the
trouble codes listed in the Inactive table.
