SEEDMASTER 2023

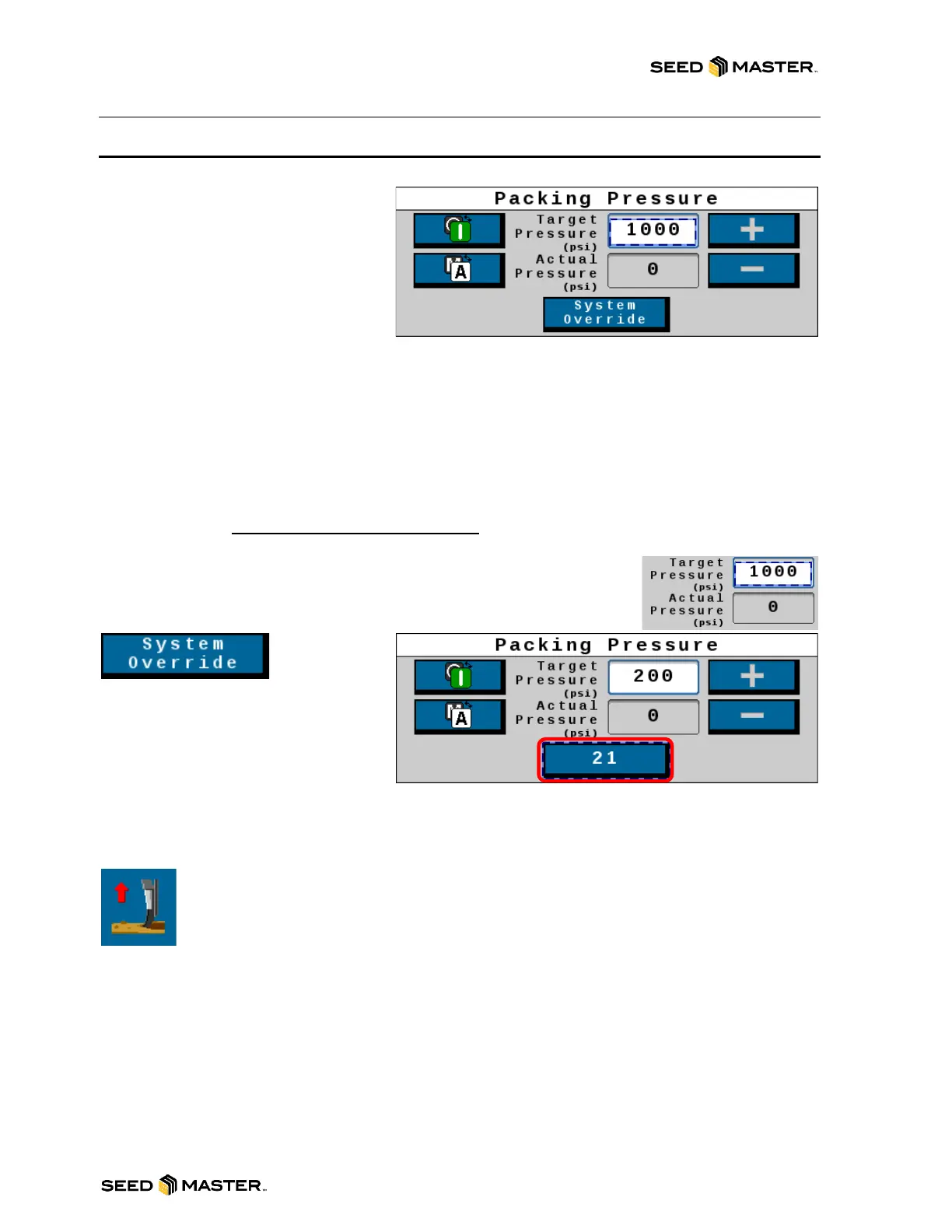

PACKING PRESSURE OPERATION ON HOME PAGE

Touch the Home soft key to return to the

home page to have access to the

Packing Pressure operation settings.

Off/Manual/Auto settings: The system

is equipped with a PWM valve for

controlling the hydraulic pressure to the

openers when they are in the down

position.

OFF: When the safety switch is “Off”, the PWM will not control the packing pressure.

MANUAL: When “M” is selected, this puts the packing pressure into manual mode. Use the plus and

minus arrows to increase or decrease the amount of down pressure to the openers.

AUTO: When the button is in the “A” position, this puts the packing pressure into an automatic mode. In

automatic mode, the system will automatically adjust the packing pressure to keep it at the desired

“Target Pressure”. This is the recommended setting.

Target and Actual Packing Pressure: The Target Pressure and Actual

Pressure are displayed in the middle of the Packing Pressure area. Touch in

the white area to easily change the target on the fly.

System

Override:

Touch the

System Override button to reduce the

amount of packing pressure to the

openers to a percentage of the set

target pressure. The System Override

button will override the packing pressure

for the set amount of time (set in the settings page). A timer will be displayed to show the remaining

override time. To reset the timer, simply touch the System Override button again and it will start the

timer from the top of the set amount of time.

You can also touch the System Override Soft Key in the top right-hand corner of the page.

Touching this soft key will initiate the System Override. Touching this icon again will cancel

the timer and normal packing pressure will resume.

NOTE: When the packing pressure override is enabled it will increase the Lift Kit pressure to 1500psi.
